High Clutch: Components

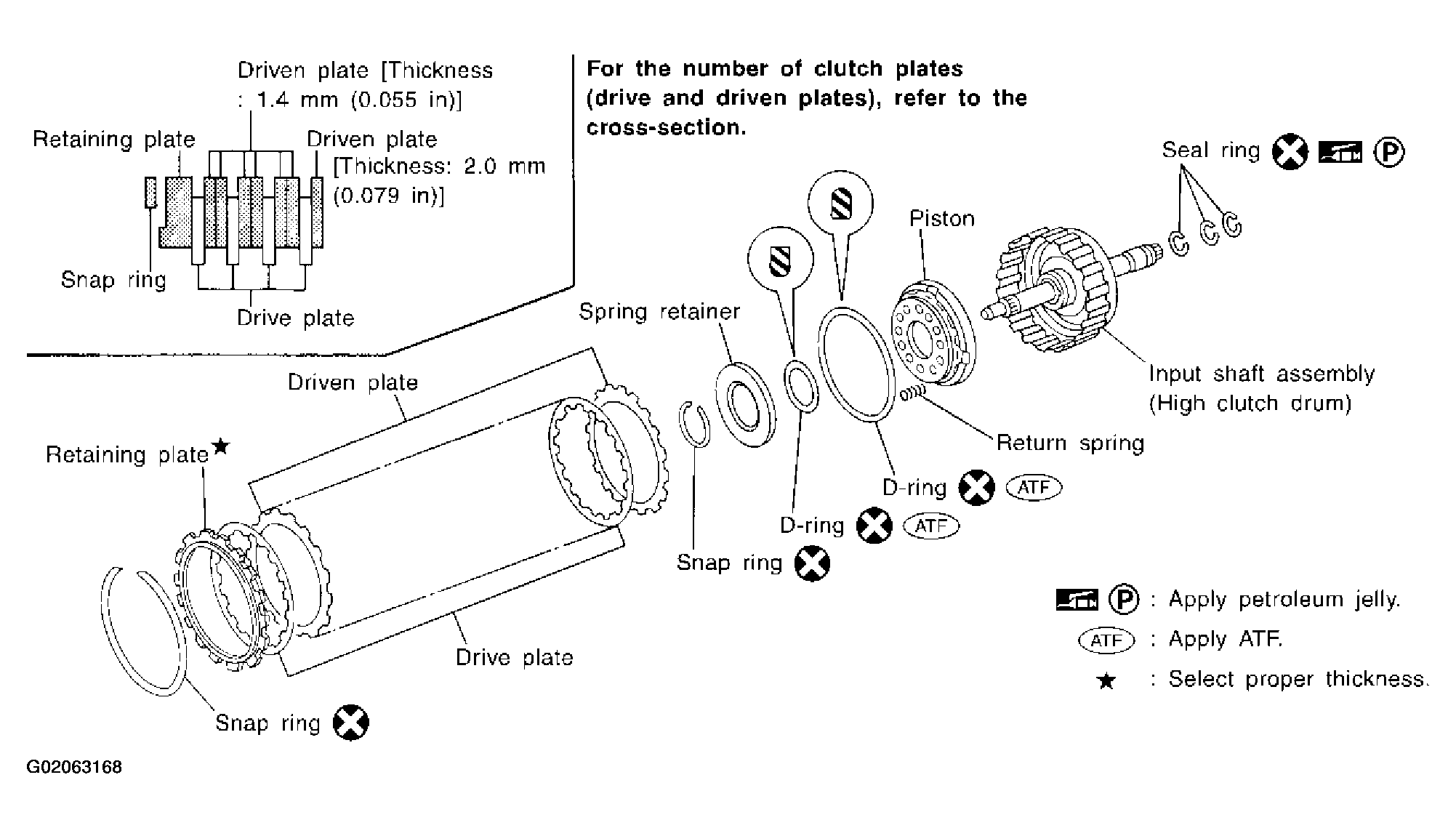

Fig 1: Identifying High Clutch Components

G02063168

Courtesy of NISSAN MOTOR CO., U.S.A.
