Oil Channel
Oil Channel

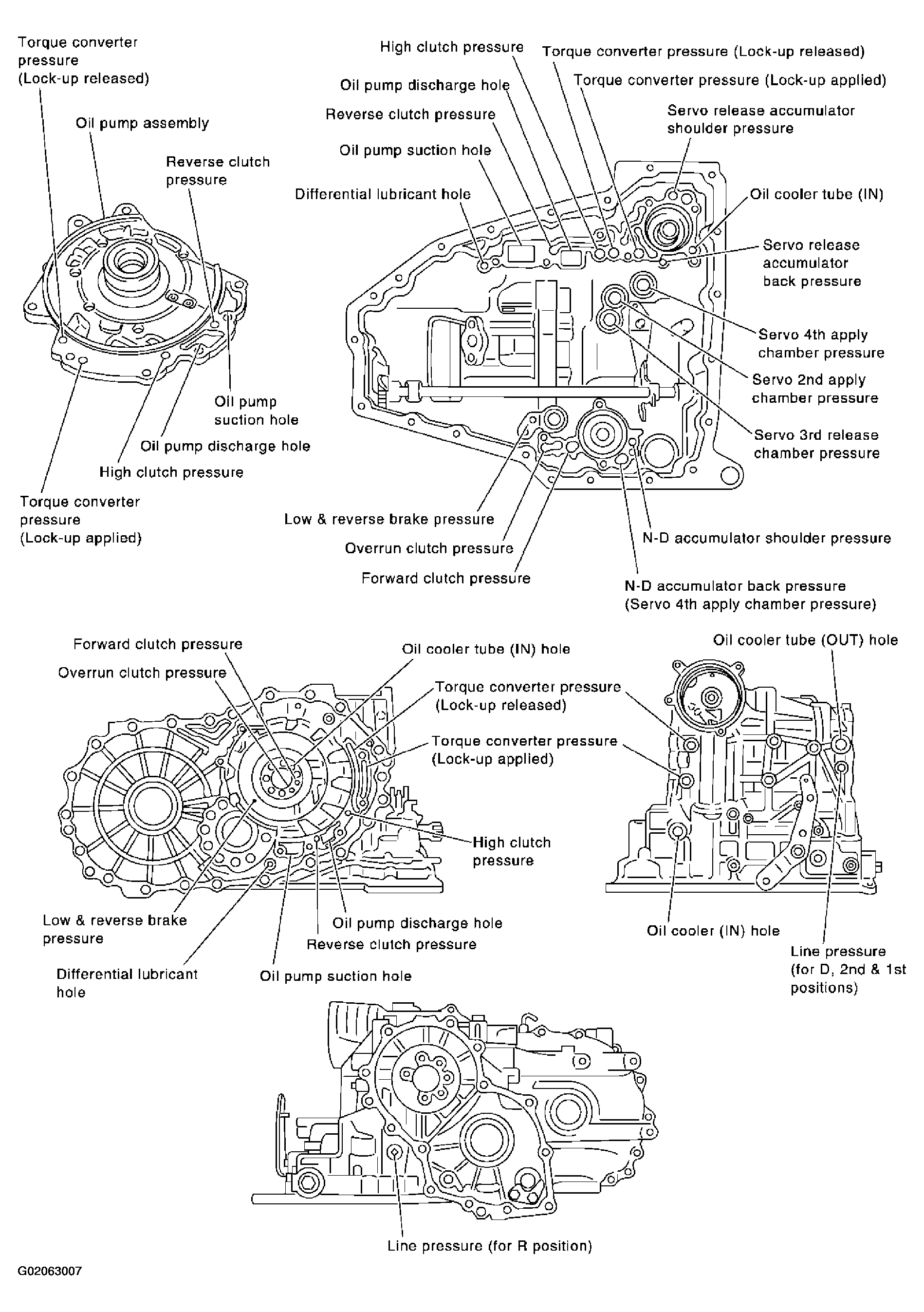

Fig 1: Automatic Transaxle Oil Channel
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
