R Position
R Position

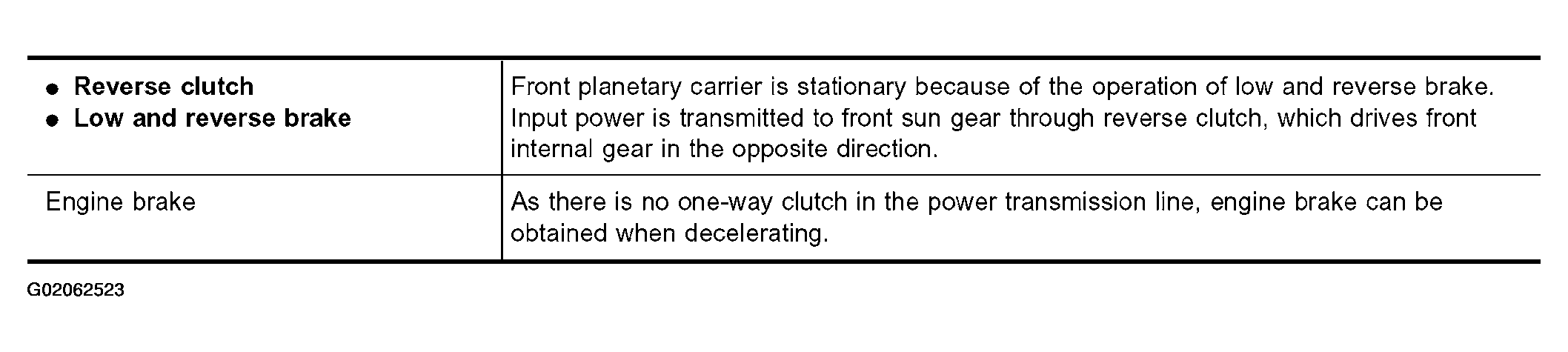

Fig 1: Power Transmission R Position Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

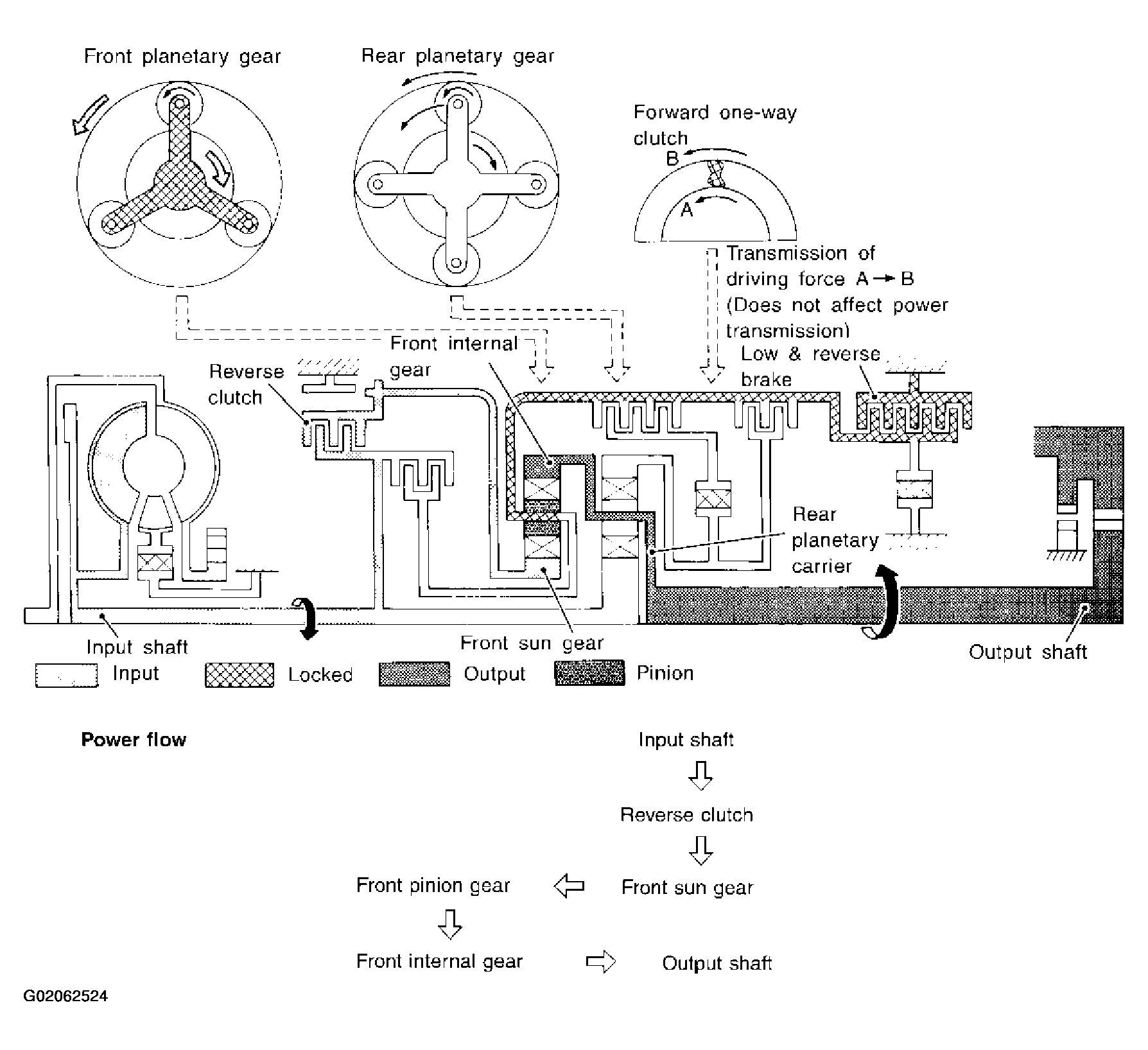

Fig 2: Power Transmission R Position Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
