Can COMMINICATION Line (A/T With TCS, Maxima)

WARNING: This page is about a different car, the 2002 Nissan Maxima and 2002 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For self-diagnosis results, see SCAN TOOL USAGE in SELF-DIAGNOSTICS - I35 & MAXIMA article.

Self-diagnosis result check. Check self-diagnosis results, see Fig 1 . If CONSULT-II indicates other items except for indicated results, as shown in illustration, repair or replace related parts. If CONSULT-II indicates other items, go to next step.

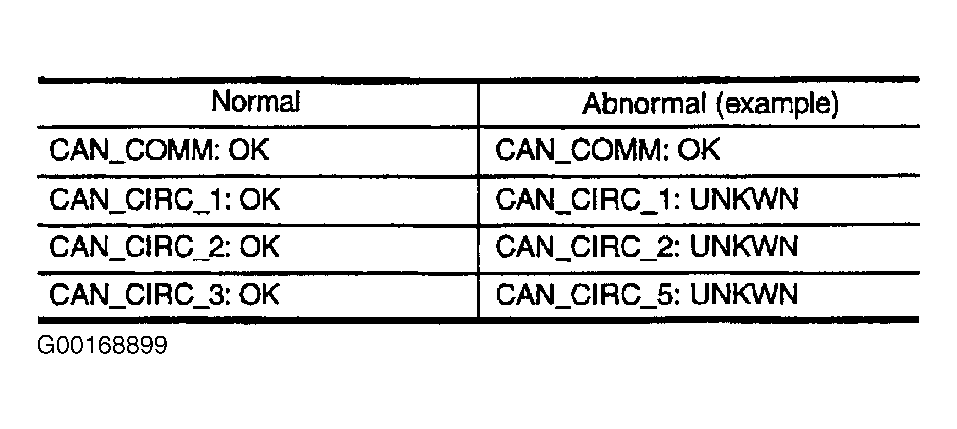

CAN communication system check. Check "CAN Diagnosis Support Monitor" of data monitor items, see appropriate ANTI-LOCK/TRACTION CONTROL article in BRAKES. After printing monitor items, See Figure .

Fig 1: Identifying CAN Communication Line Self-Diagnosis Result Check (A/T With TCS)

Courtesy of NISSAN MOTOR CO., U.S.A.
