System Tests: Notes

WARNING: This page is about a different car, the 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For diagnostic system diagram, see DIAGNOSTIC SYSTEM DIAGRAM under TROUBLE SHOOTING.

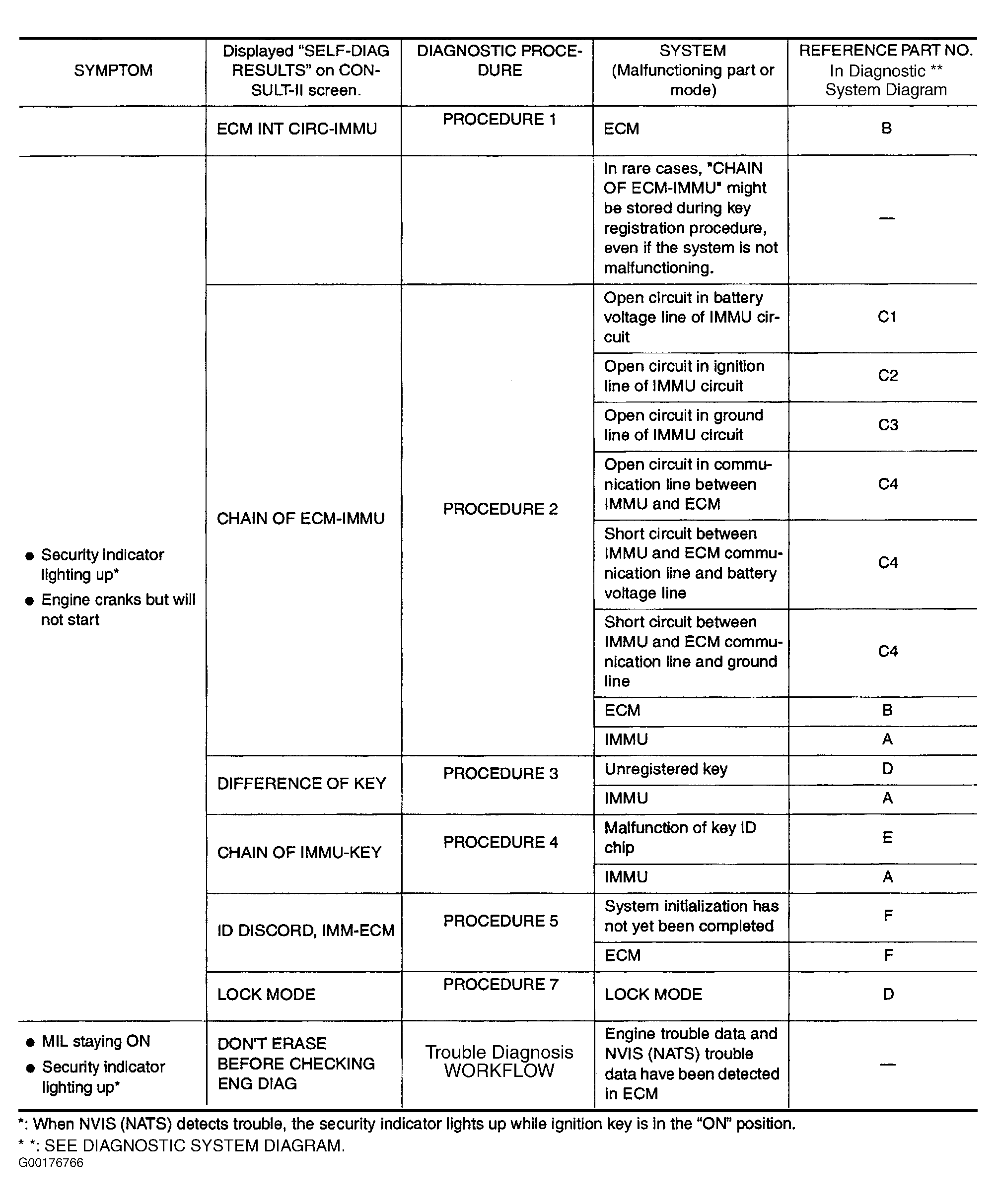

Fig 1: Identifying Symptom Matrix Chart 1

Courtesy of NISSAN MOTOR CO., U.S.A.

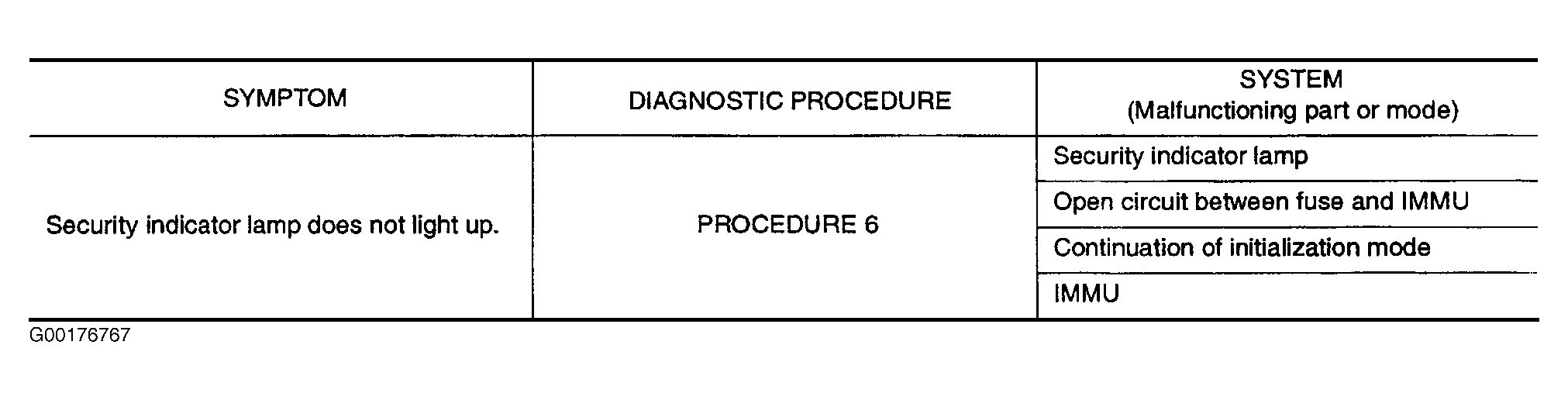

Fig 2: Identifying Symptom Matrix Chart 2

Courtesy of NISSAN MOTOR CO., U.S.A.
