Lock Mode

WARNING: This page is about a different car, the 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For symptom matrix chart 1, see Figure .

NOTE: For reference to parts "A", "B", C1-C4 and "F", see DIAGNOSTIC SYSTEM DIAGRAM under TROUBLE SHOOTING.

For diagnostic procedure 7, see Fig 1 .

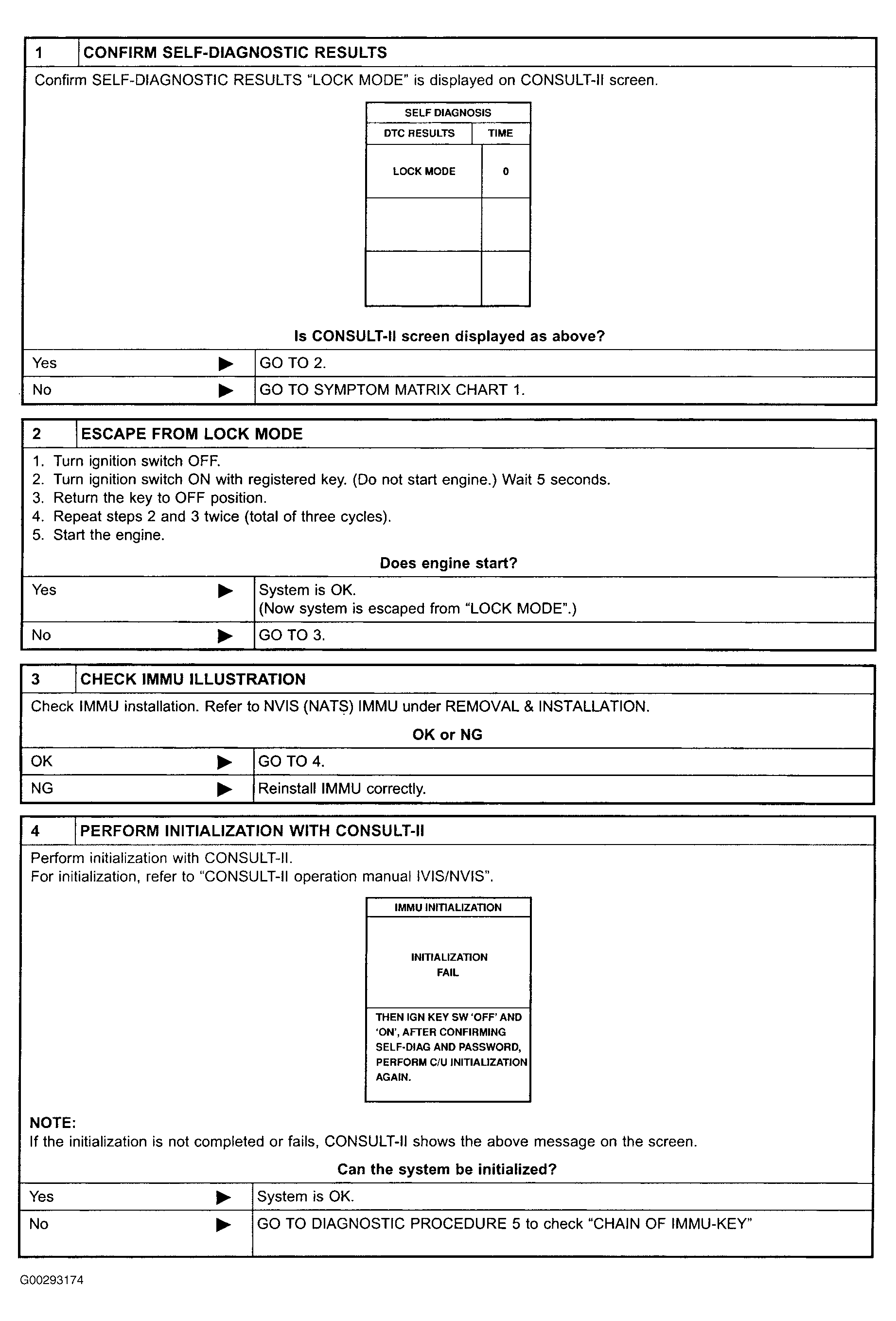

Fig 1: Identifying Lock Mode Steps (1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.
