Difference Of Key

WARNING: This page is about a different car, the 2002 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For symptom matrix chart 1, see Figure .

NOTE: For reference to parts "A", "B" and C1-C4, see DIAGNOSTIC SYSTEM DIAGRAM under TROUBLE SHOOTING.

For diagnosis of difference of key, see Fig 1 .

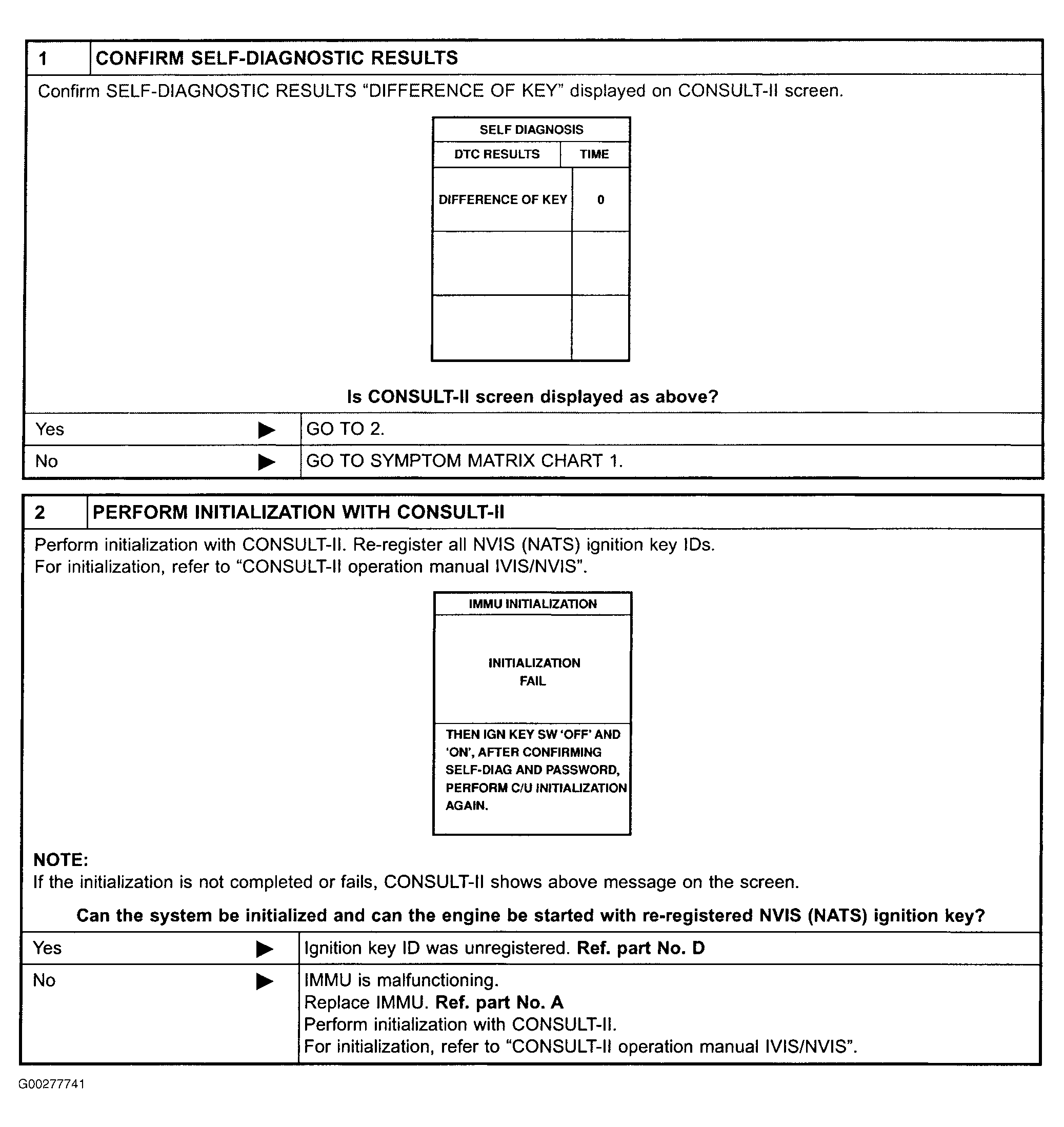

Fig 1: Identifying "Difference Of Key", (Steps 1 & 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
