COMPONENT LOCATIONS

Component	Location
Data Link Connector	Under Dash, In Front Of Driver, See Fig 1
ECM	Under Center Of Dash, See Fig 2
Fuse Block (J/B)	Under Left Side Of Dash
Immobilizer Control Unit	Under Dash, Next To Steering Column, See Fig 3
Security Indicator Light	In Center Of Dash, Next To Clock, See Fig 4

Fig 1: Locating Data Link Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Locating Engine Control Module

Courtesy of NISSAN MOTOR CO., U.S.A.

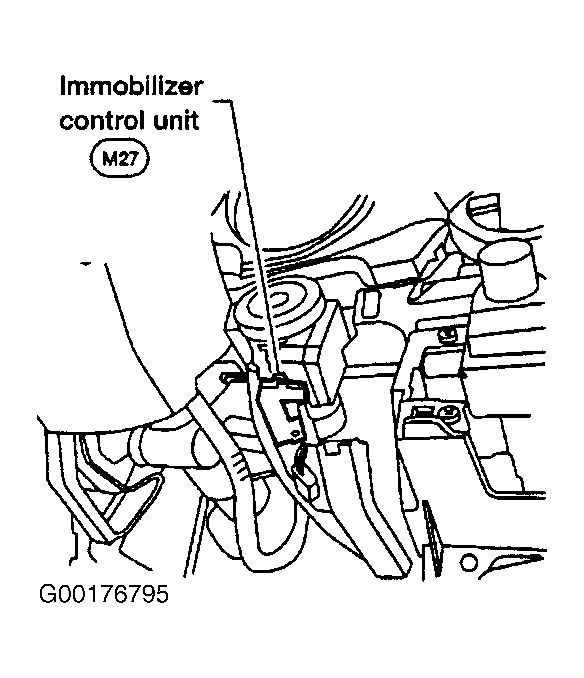

Fig 3: Locating Immobilizer Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

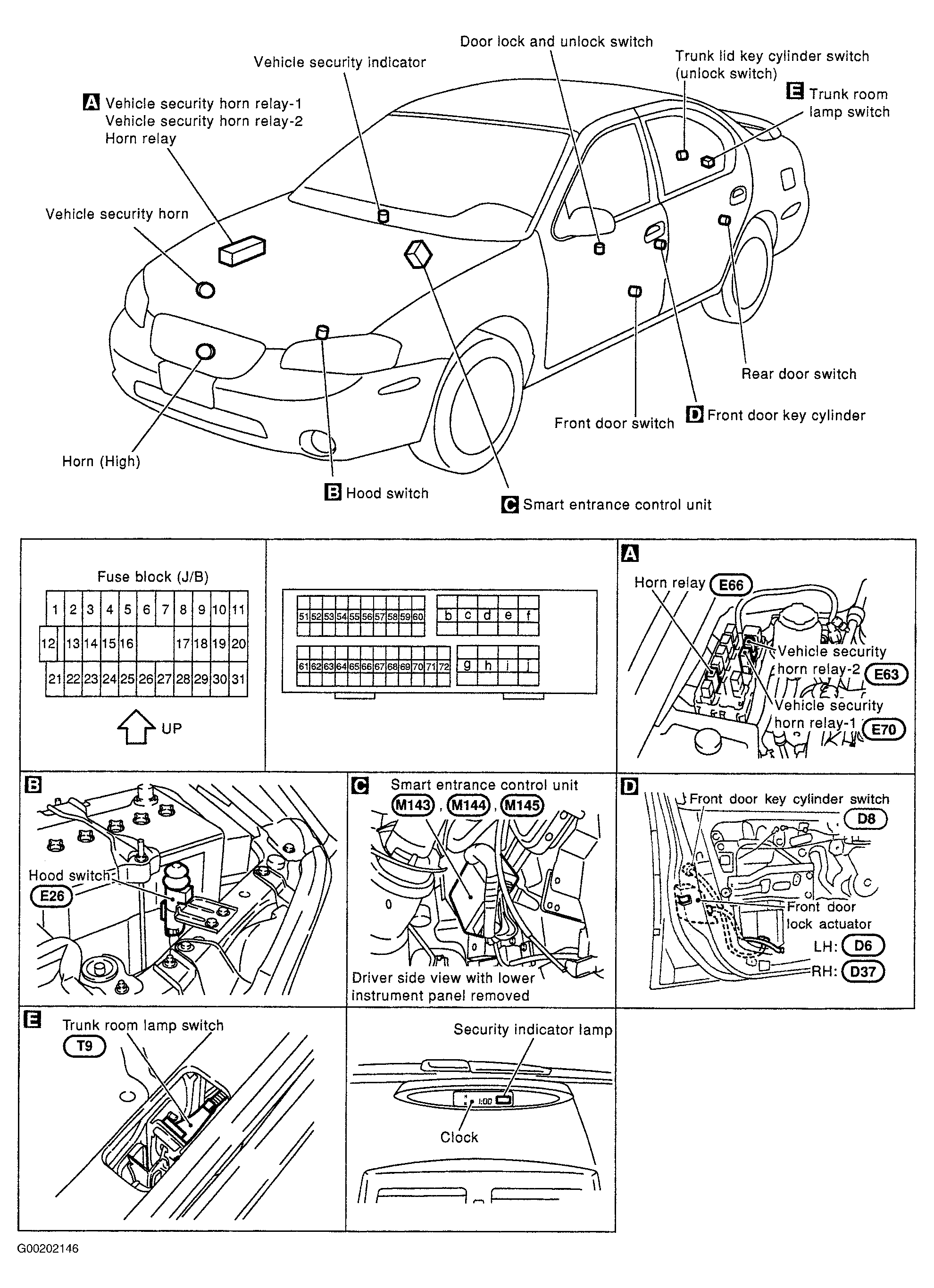

Fig 4: Locating Security Indicator Lamp, Smart Entrance Control Unit & Identifying Fuse Block (J/B)

Courtesy of NISSAN MOTOR CO., U.S.A.
