Removal and Installation

WARNING: When replacing fuel line parts, be sure to observe the following.

Put a "CAUTION: INFLAMMABLE" sign in workshop.
Be sure to work in a well ventilated area and furnish workshop with a CO₂ fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

CAUTION:

Before removing fuel line parts, carry out the following procedures:
1. Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
2. Release fuel pressure from fuel line. Refer to FUEL PRESSURE RELEASE .
3. Disconnect battery ground cable.

Always replace O-ring and clamps with new ones.
Do not kink or twist tubes when they are being installed.
Do not tighten hose clamps excessively to avoid damaging hoses.
After installing fuel tubes, run engine and check for fuel leaks at connections.
1. Apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections.

Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
For inspection and installation of EVAP system parts, refer to EVAPORATIVE EMISSION SYSTEM .
For inspection and installation of ORVR system parts, refer to ON BOARD REFUELING VAPOR RECOVERY (ORVR) .

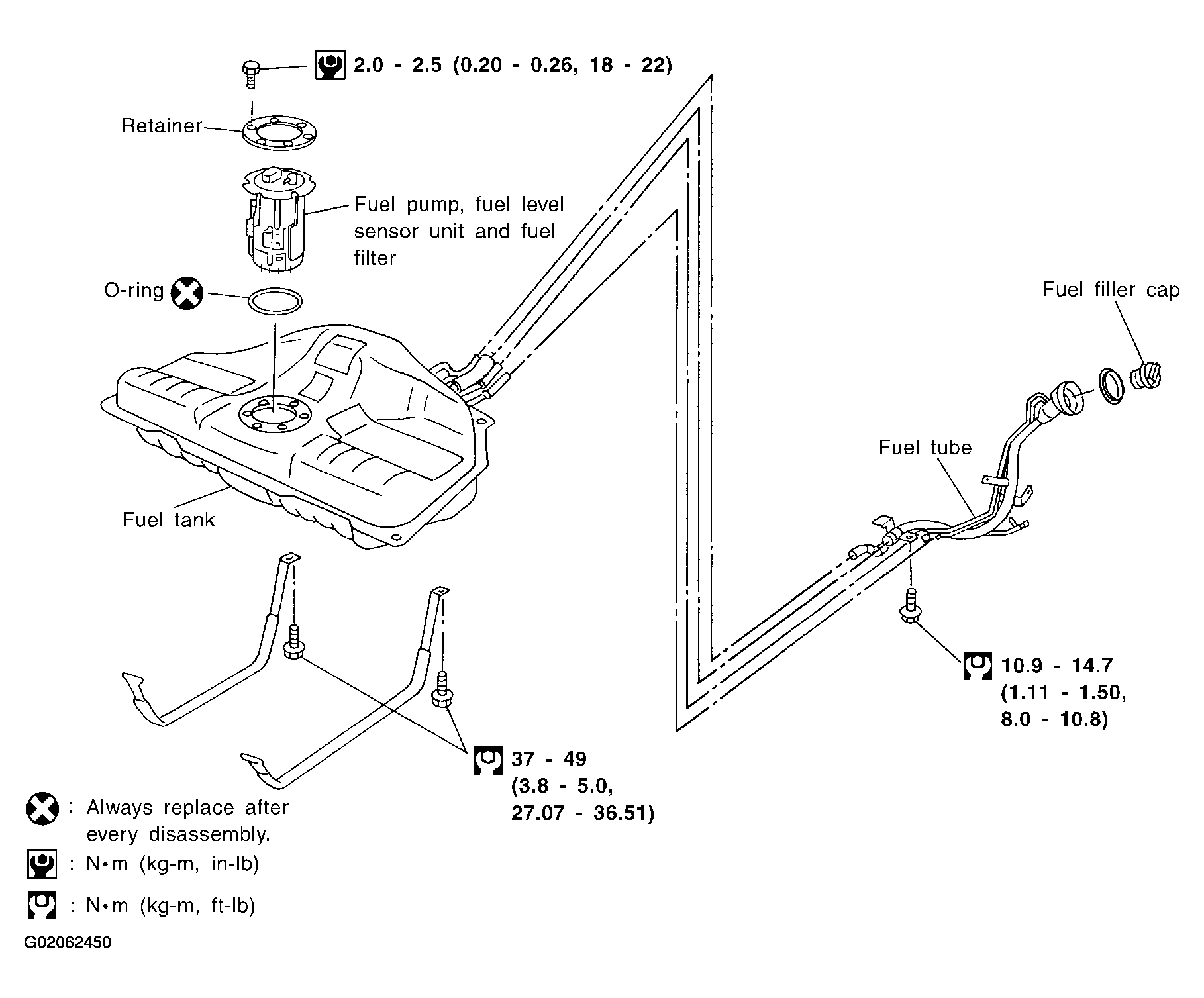

Fig 1: Removing And Installing Fuel System
Courtesy of NISSAN MOTOR CO., U.S.A.
