Oil Pan: Components

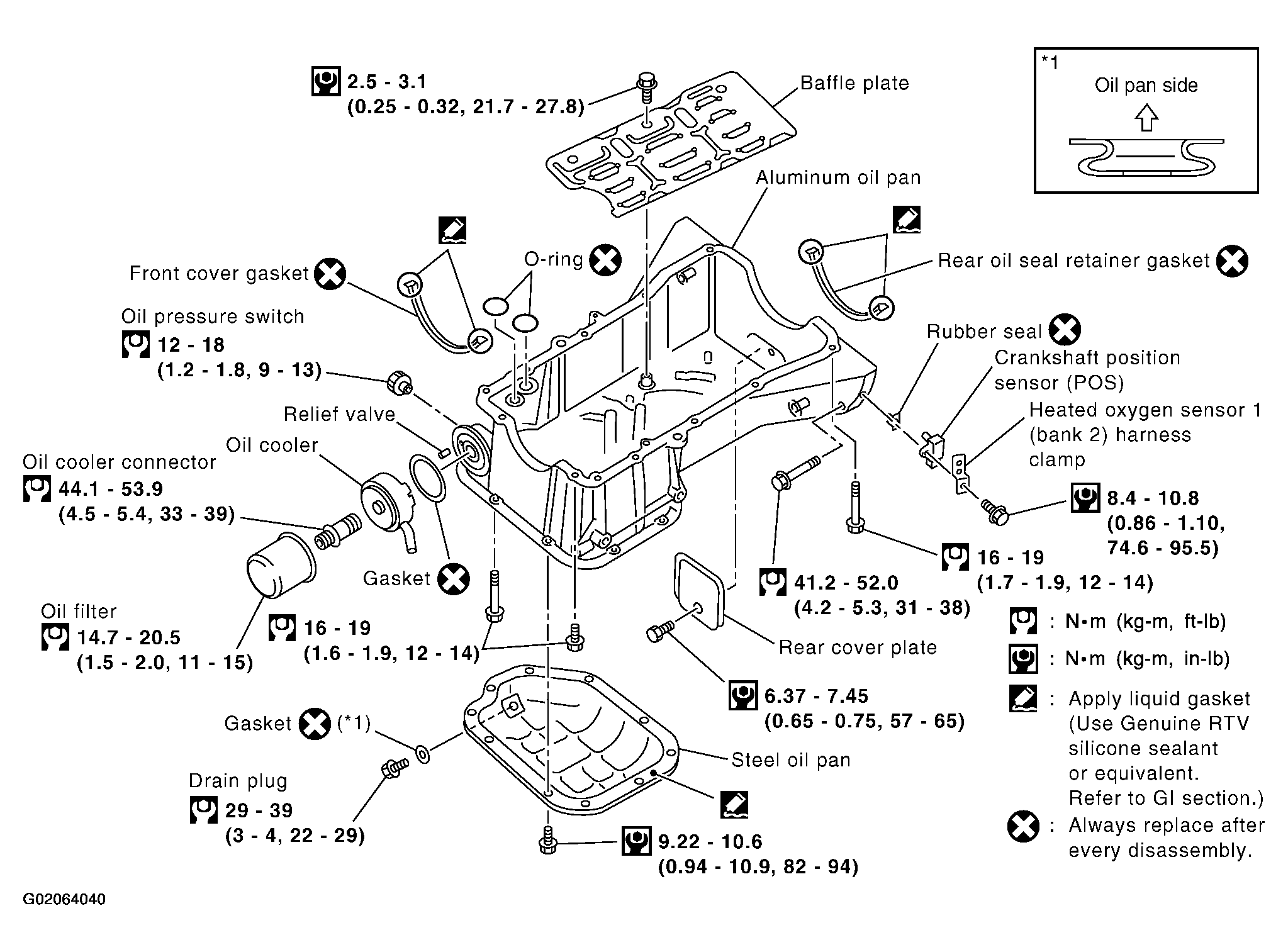

Fig 1: Exploded View Of Oil Pan

G02064040

Courtesy of NISSAN MOTOR CO., U.S.A.
