Disassembly and Assembly

NOTE:
  • Do not disassemble the tilt mechanism.
  • After installing steering column, check tilt mechanism operation.

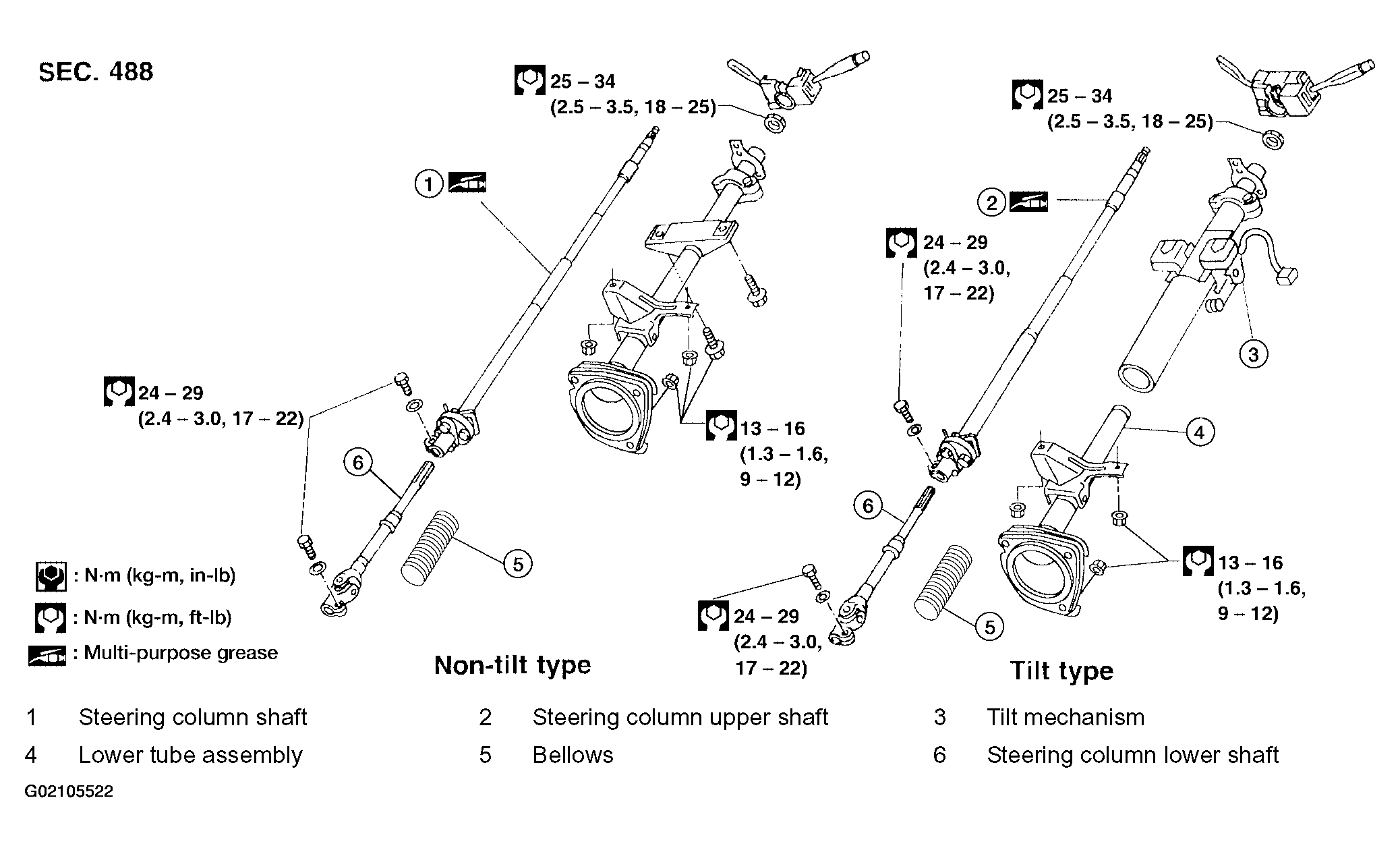

Fig 1: Exploded View Of Steering Column
G02105522Courtesy of NISSAN MOTOR CO., U.S.A.
  1. When disassembling and assembling, unlock steering lock with key.
  2. Install lock nut on steering column shaft and tighten the nut to specification.
    1. Steering column lock nut : 25-34 N.m (2.5-3.5 kg-m, 18-25 ft. lb)

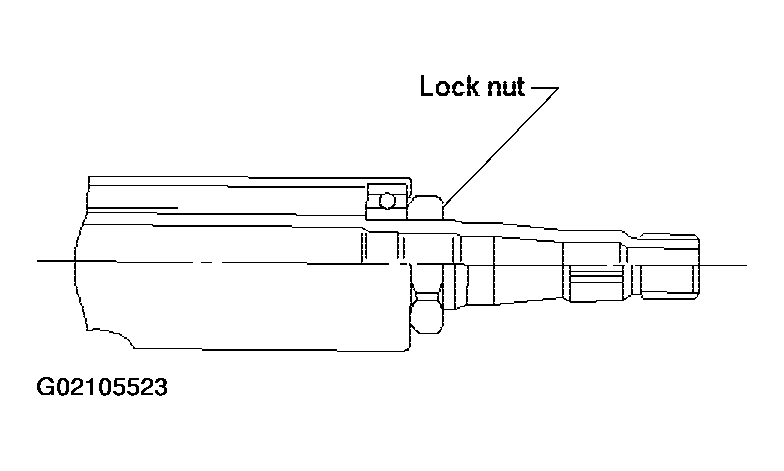

    Fig 2: Installing Lock Nut On Steering Column Shaft
    G02105523Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Steering lock
    • Break self-shear type screws using a drill or other appropriate tool.

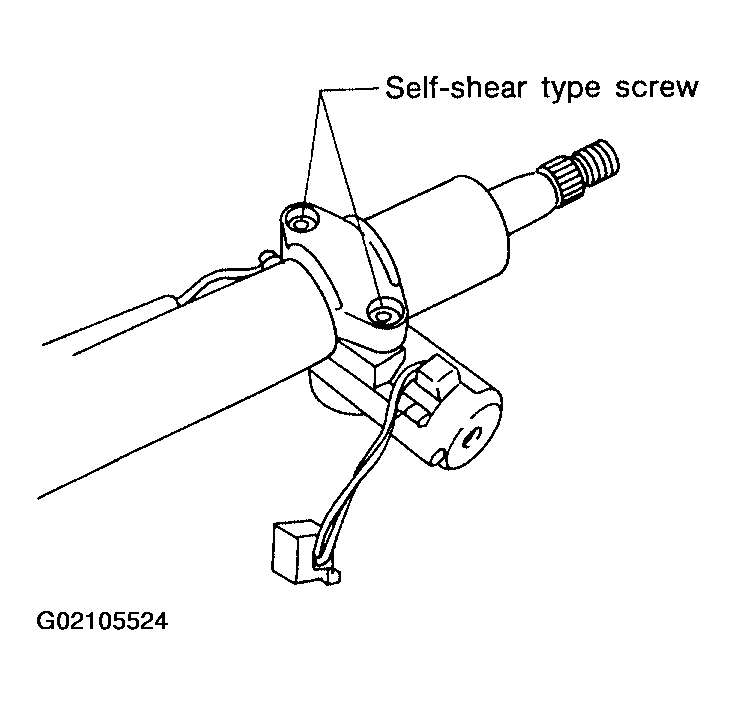

      Fig 3: Breaking Self-Shear Type Screws
      G02105524Courtesy of NISSAN MOTOR CO., U.S.A.
    • Install self-shear type screws, then tighten until heads break off.

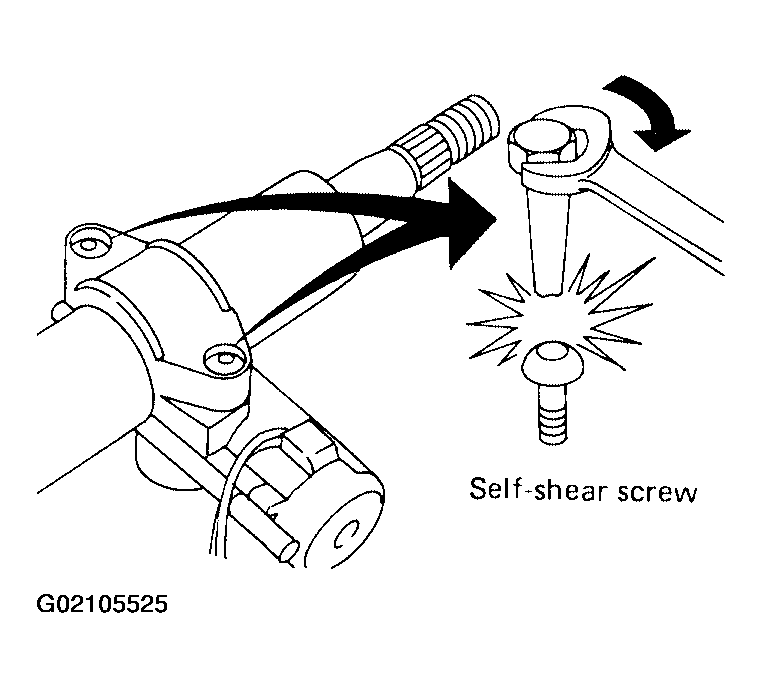

      Fig 4: Installing Self-Shear Type Screws
      G02105525Courtesy of NISSAN MOTOR CO., U.S.A.
