CAN-LAN Converter (CLC)

  1. Disconnect battery cable.
  2. Remove steering column cover.
  3. Remove instrument lower panel driver side.
  4. Place ASCD control unit aside.
  5. Disconnect CLC harness connector.
  6. Remove bolt and then remove CLC.

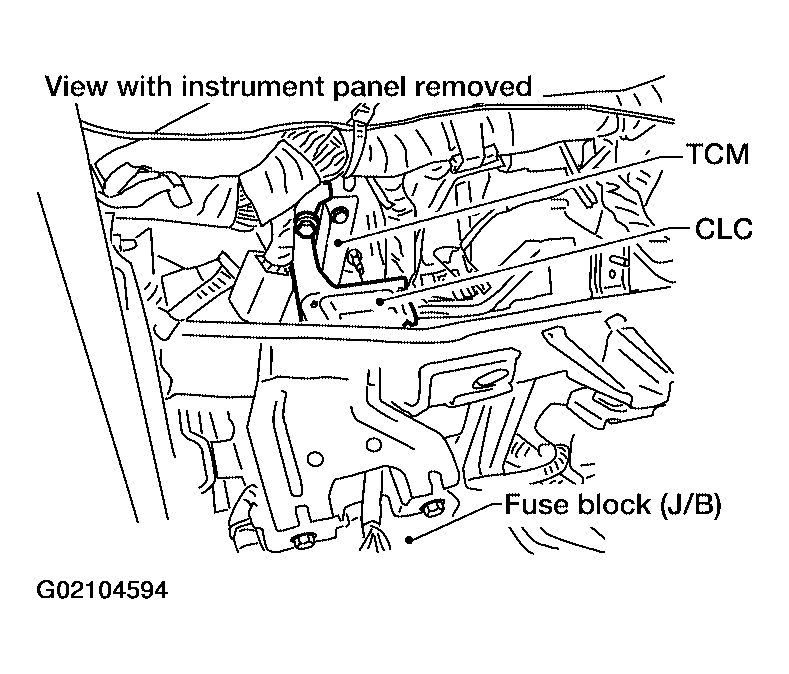

    Fig 1: Identifying CLC And TCM
    G02104594Courtesy of NISSAN MOTOR CO., U.S.A.
