Automatic Transmission (RL4R01A)
>>
Service Data And Specifications (SDS)
>>
Governor Pressure
Governor Pressure

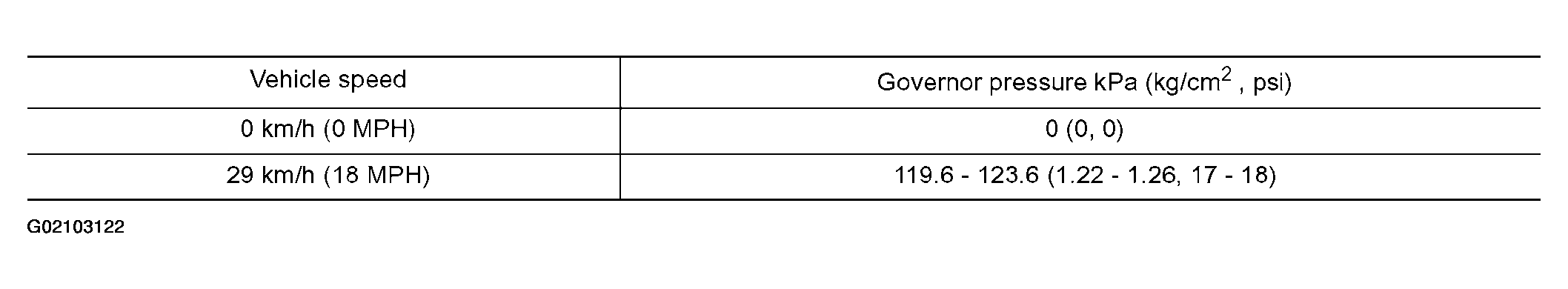

Fig 1: Governor Pressure Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

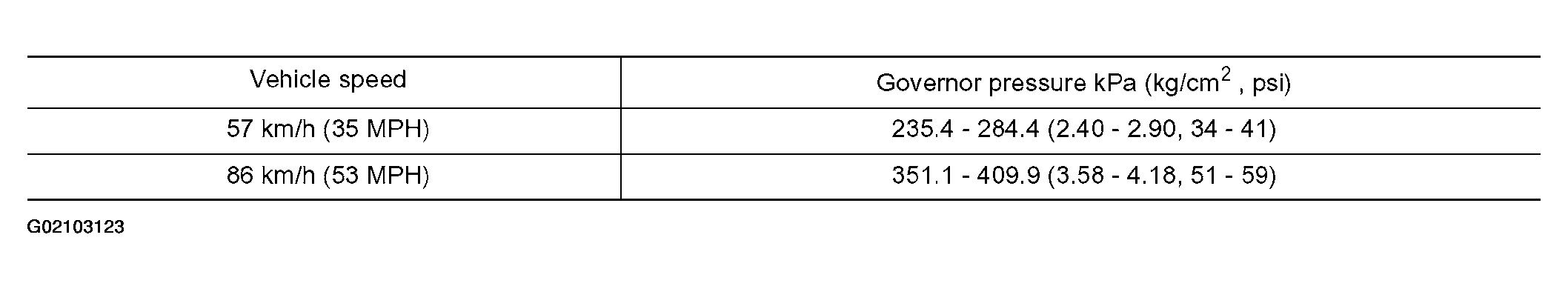

Fig 2: Governor Pressure Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
