Reverse Clutch: Components

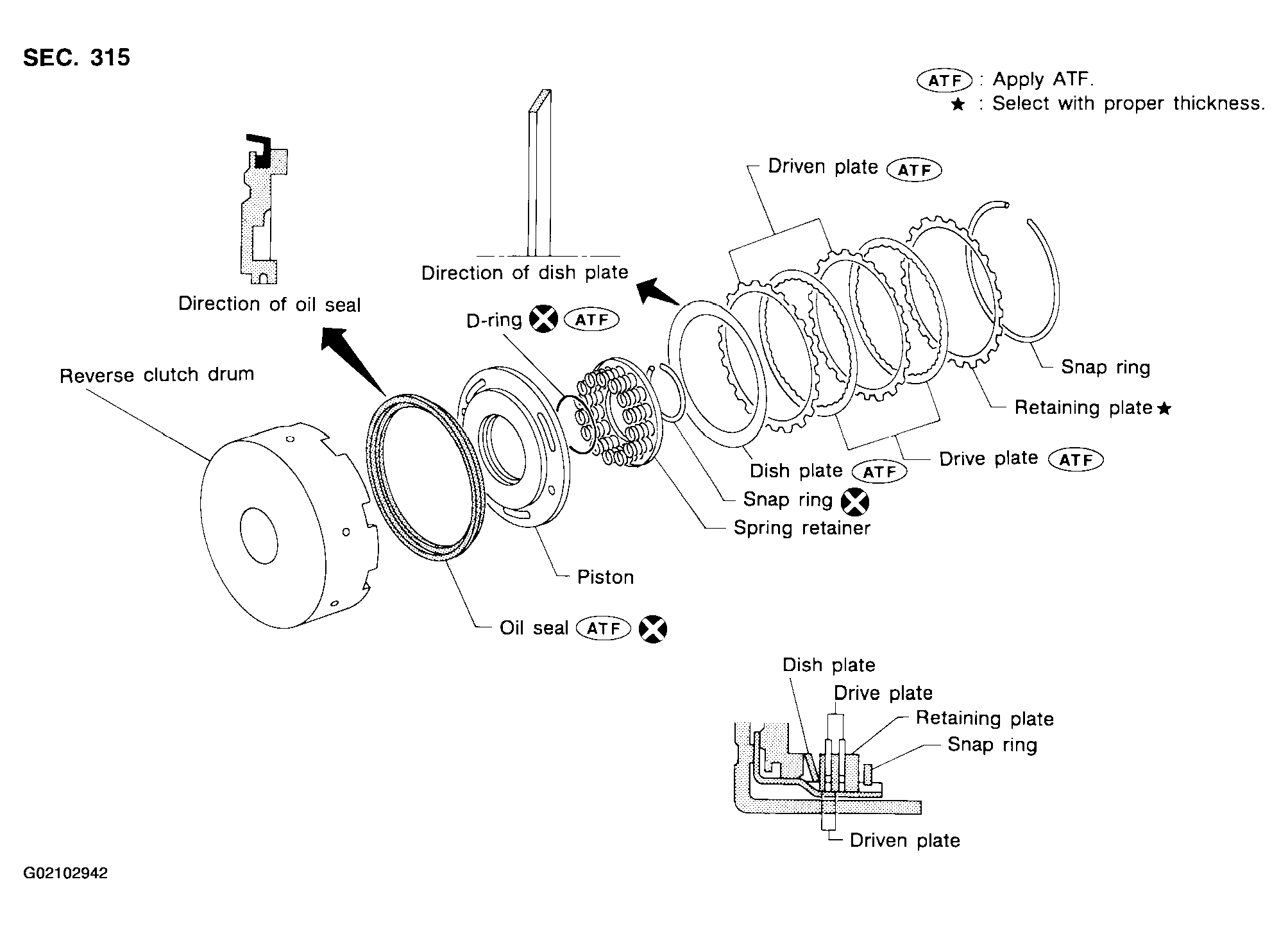

Fig 1: Identifying Components Of Reverse Clutch

G02102942

Courtesy of NISSAN MOTOR CO., U.S.A.
