Parking Pawl Components: Components

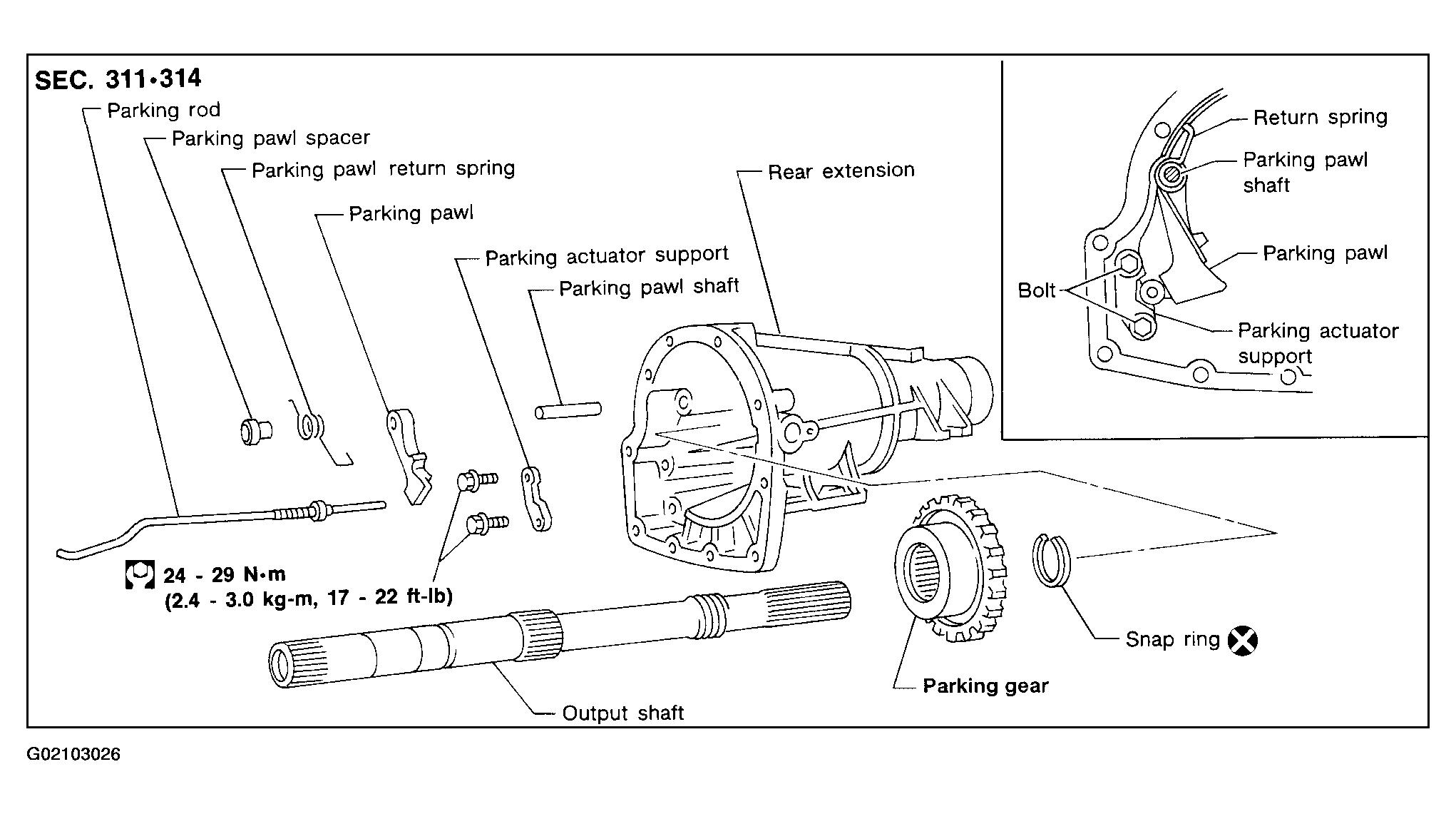

Fig 1: Identifying Components Of Parking Pawl

G02103026

Courtesy of NISSAN MOTOR CO., U.S.A.
