Automatic Transmission (RL4R01A): Overhaul: Components

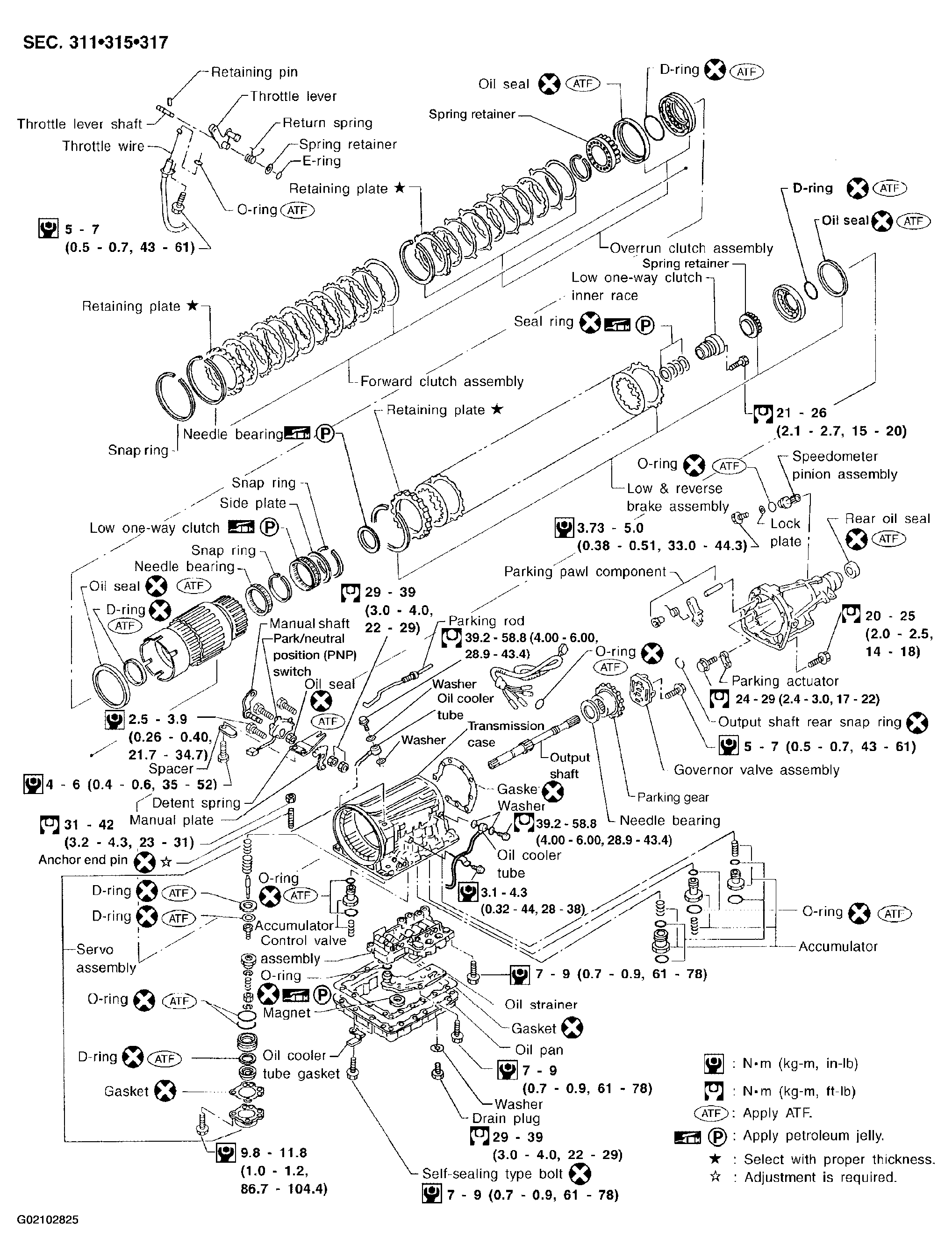

Fig 1: Identifying Components Of Automatic Transmission (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

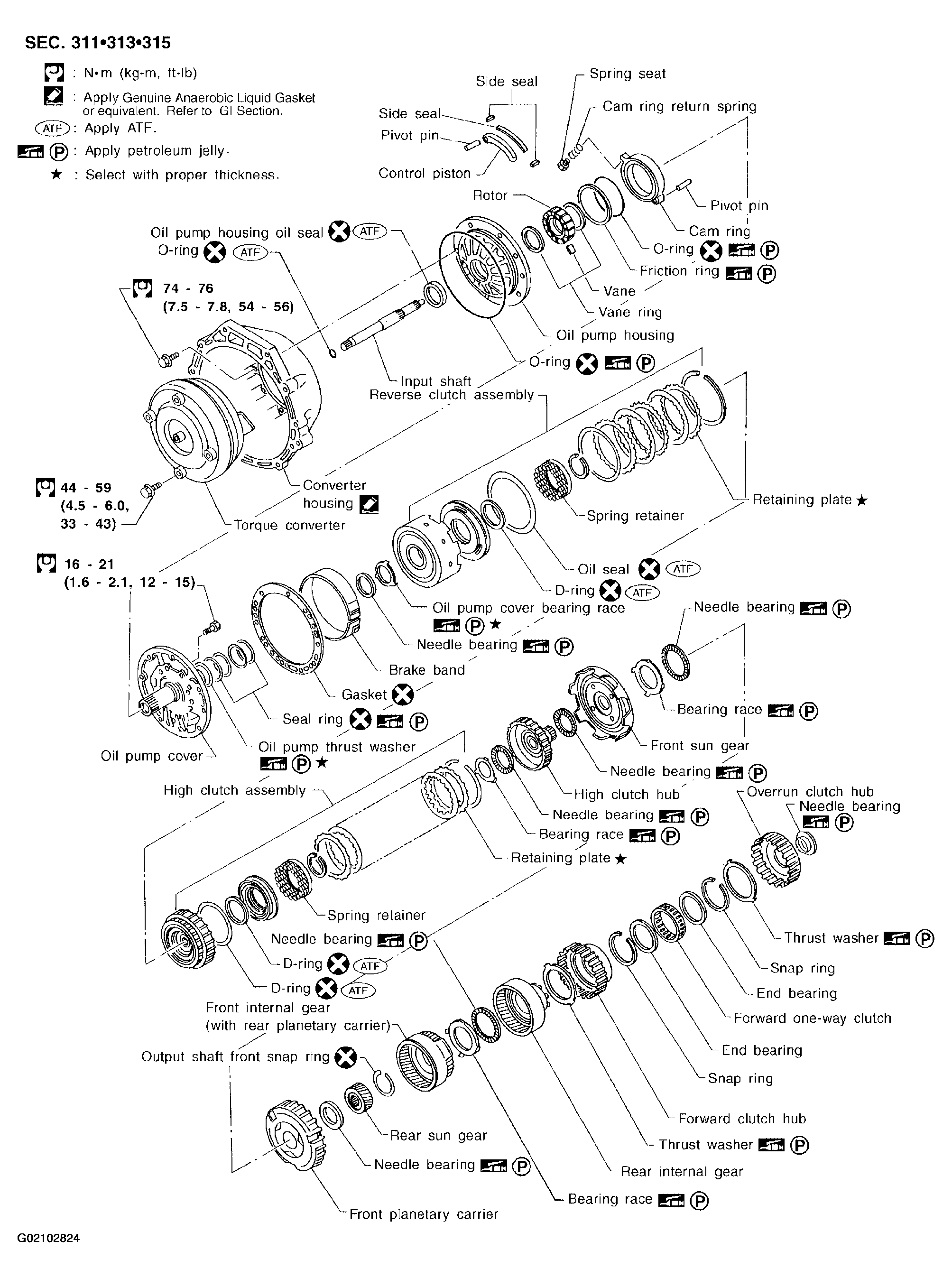

Fig 2: Identifying Components Of Automatic Transmission (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
