Automatic Transmission (RL4R01A)
>>
Overall System
>>
Shift Mechanism
>>
Function Of Clutch And Brake
Function Of Clutch And Brake

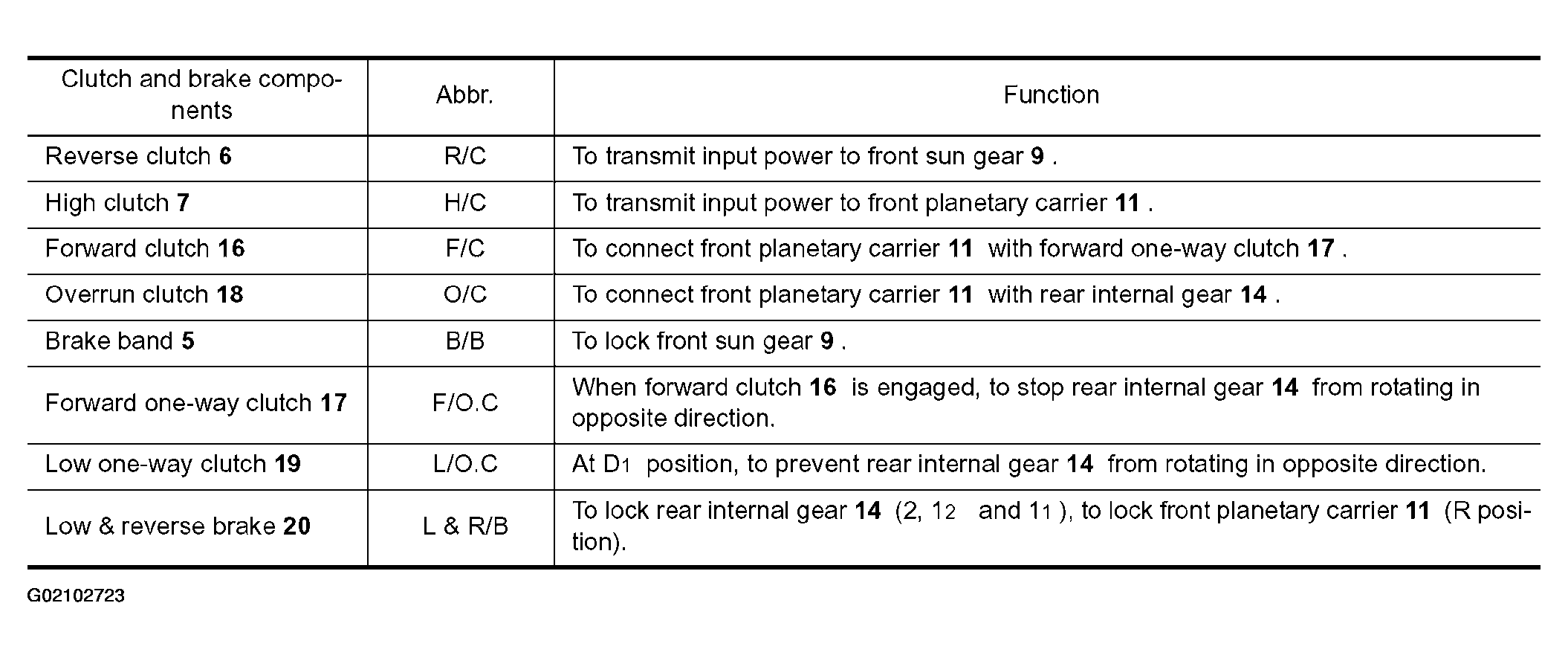

Fig 1: Clutch And Brake Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
