Automatic Transmission (RL4R01A)
>>
Overall System
>>
Cross-sectional View
Cross-sectional View

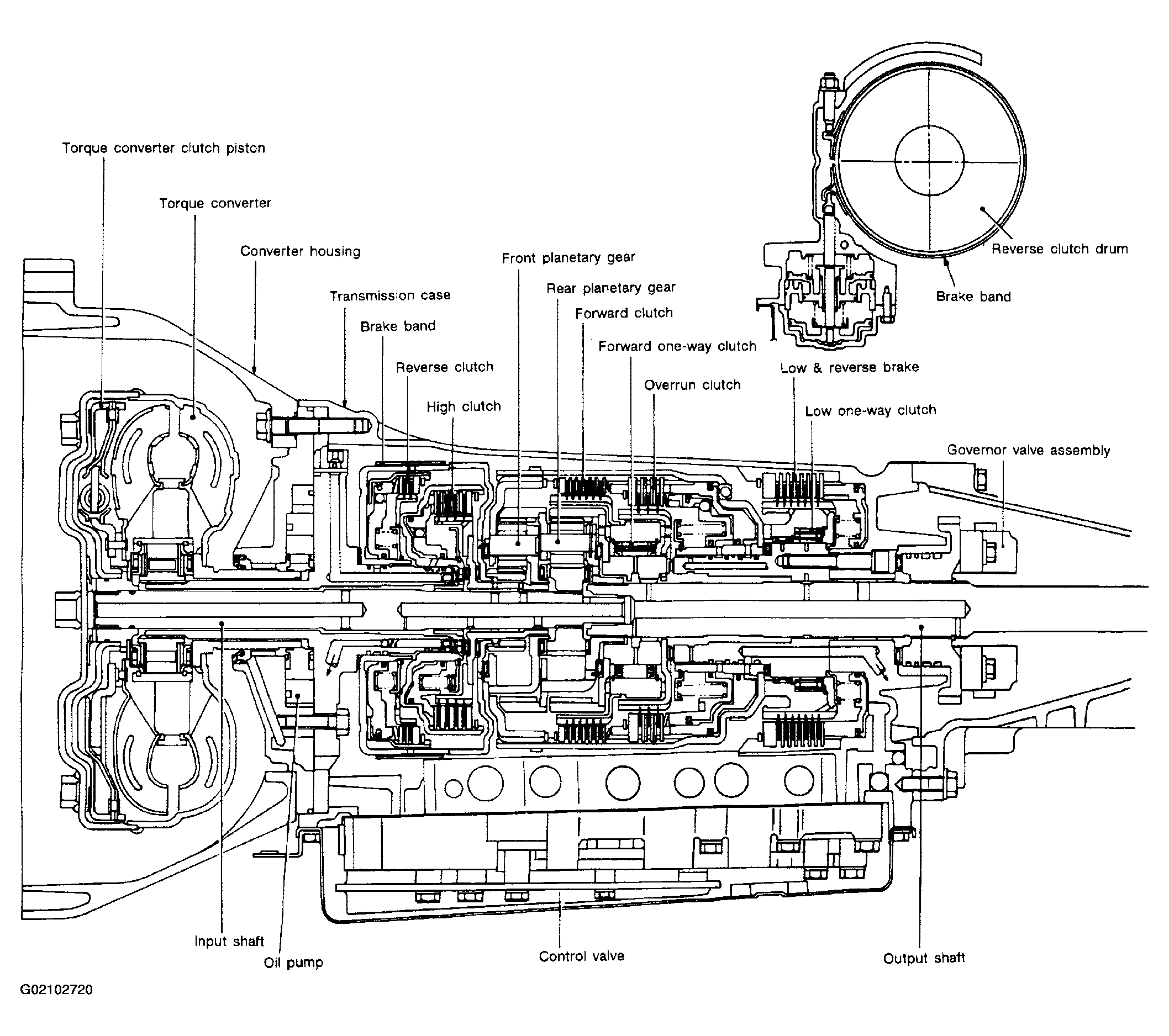

Fig 1: Cross-Sectional View Of Automatic Transmission
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
