Automatic Transmission (RL4R01A)
>>
Overall System
>>
Circuit Diagram
Circuit Diagram

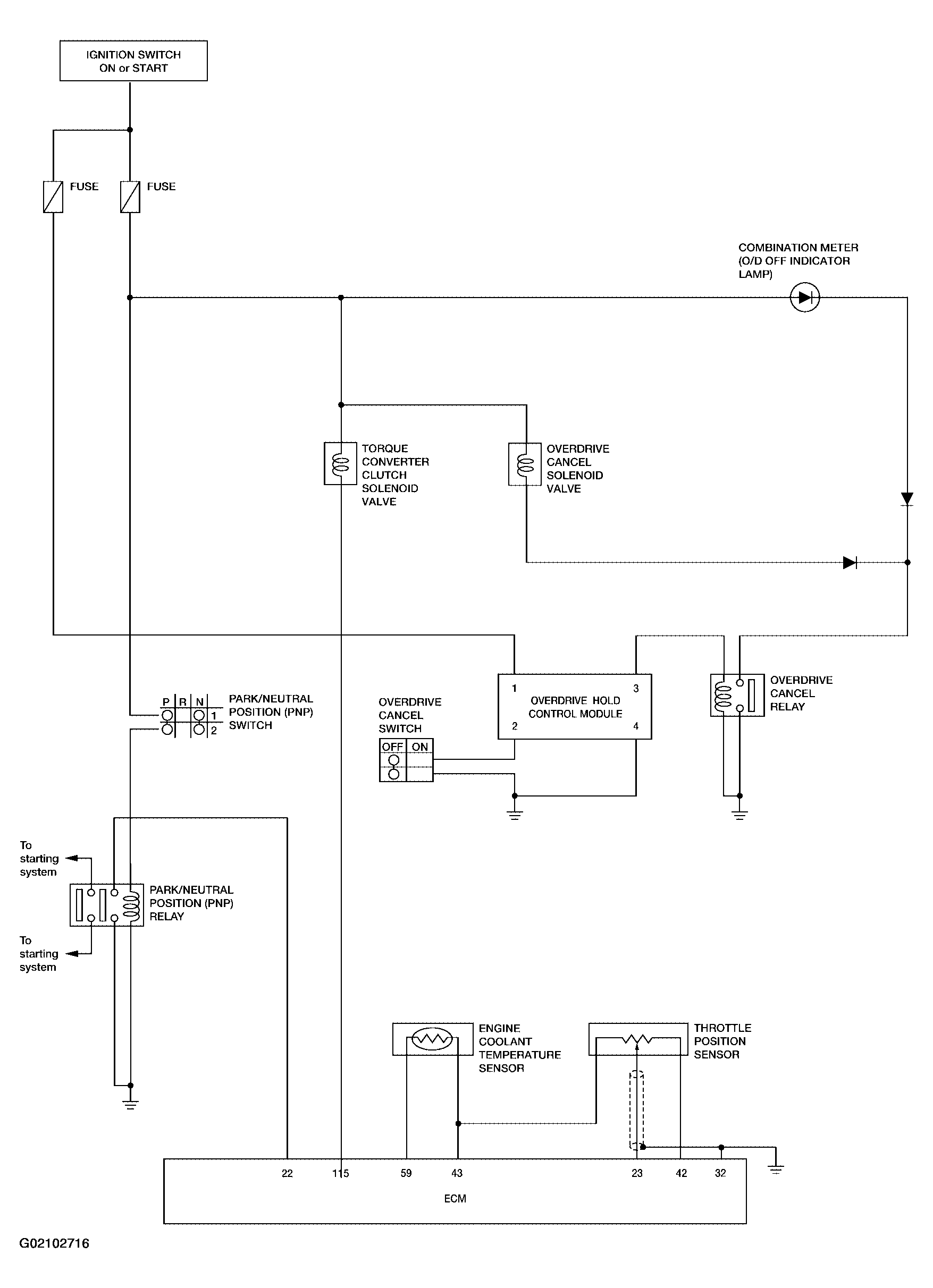

Fig 1: Automatic Transmission Overall System Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
