Oil Pump: Components

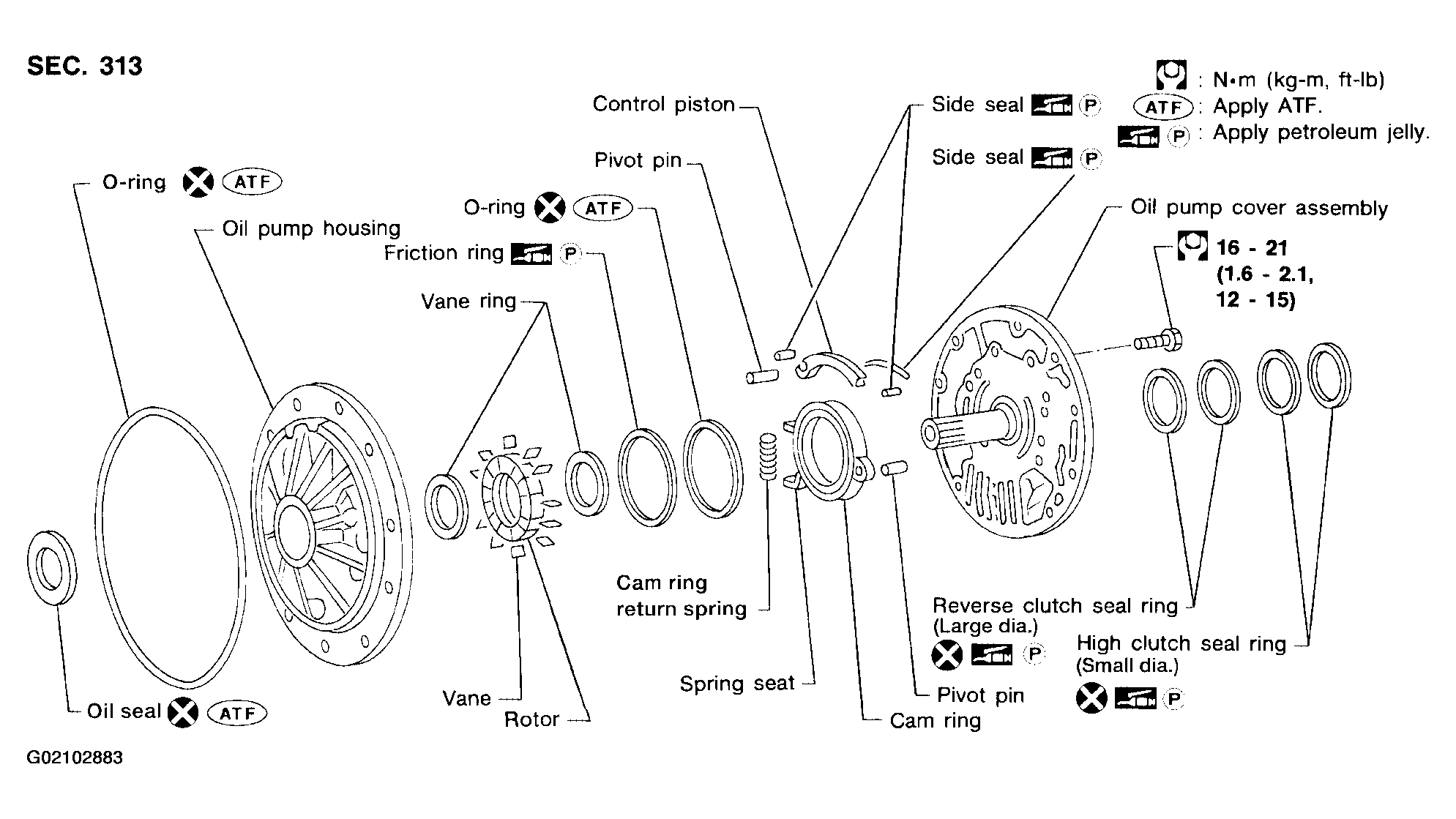

Fig 1: Identifying Components Of Oil Pump

G02102883

Courtesy of NISSAN MOTOR CO., U.S.A.
