Governor Valve Assembly: Components

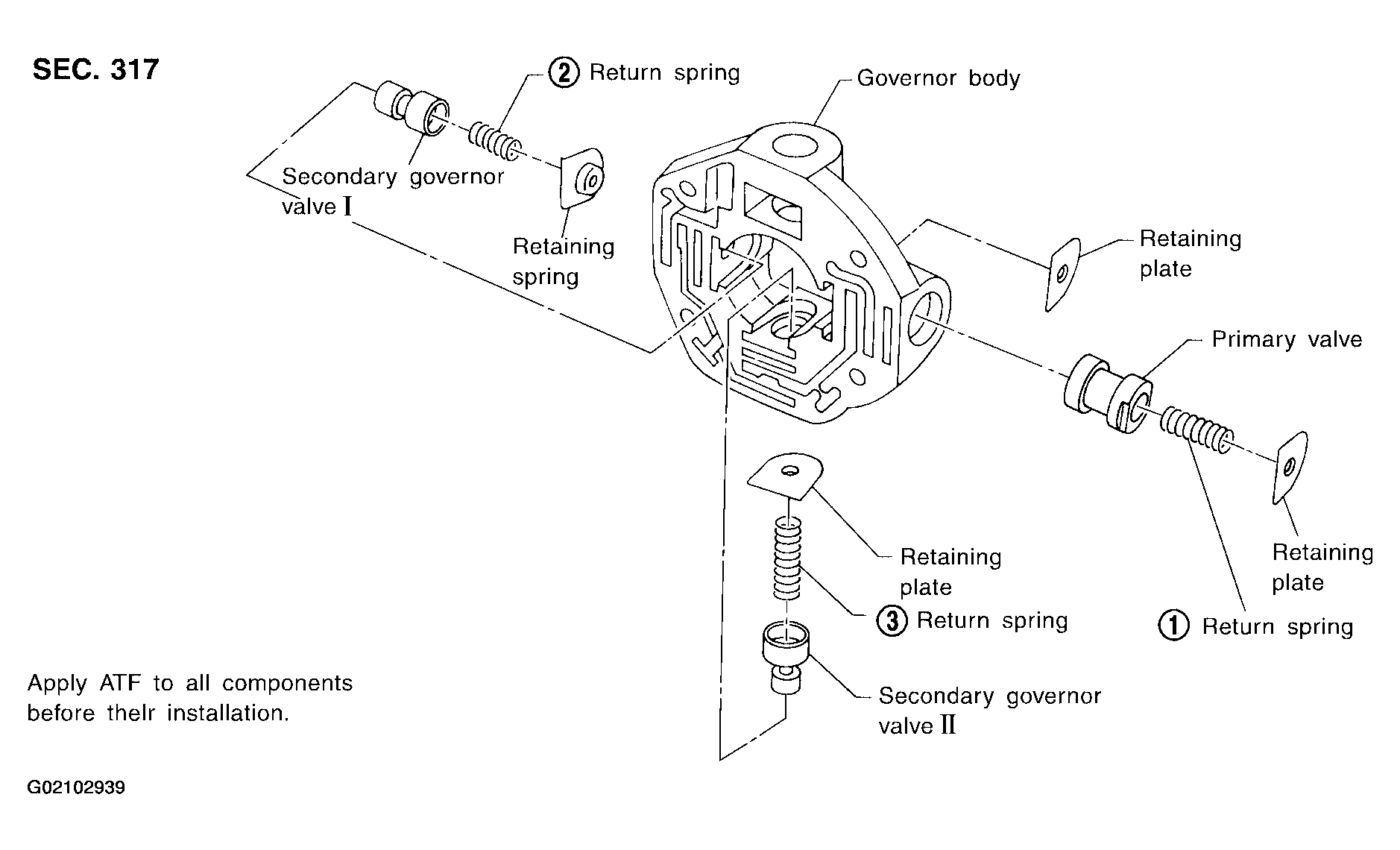

Fig 1: Identifying Components Of Governor Valve Assembly
G02102939Courtesy of NISSAN MOTOR CO., U.S.A.

Numbers preceding valve springs correspond with those shown in "RETURN SPRINGS ".
