Accumulator Control Plug

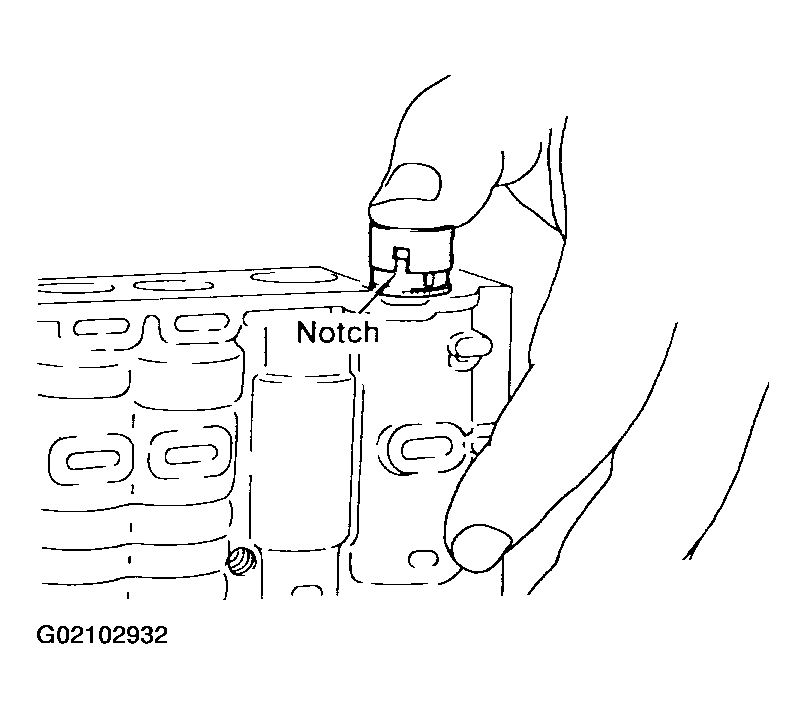

Align protrusion of accumulator control sleeve with notch in plug.

Fig 1: Aligning Protrusion Of Accumulator Control Sleeve With Notch In Plug

Courtesy of NISSAN MOTOR CO., U.S.A.

Align parallel pin groove in plug with parallel pin, and install accumulator control valve.

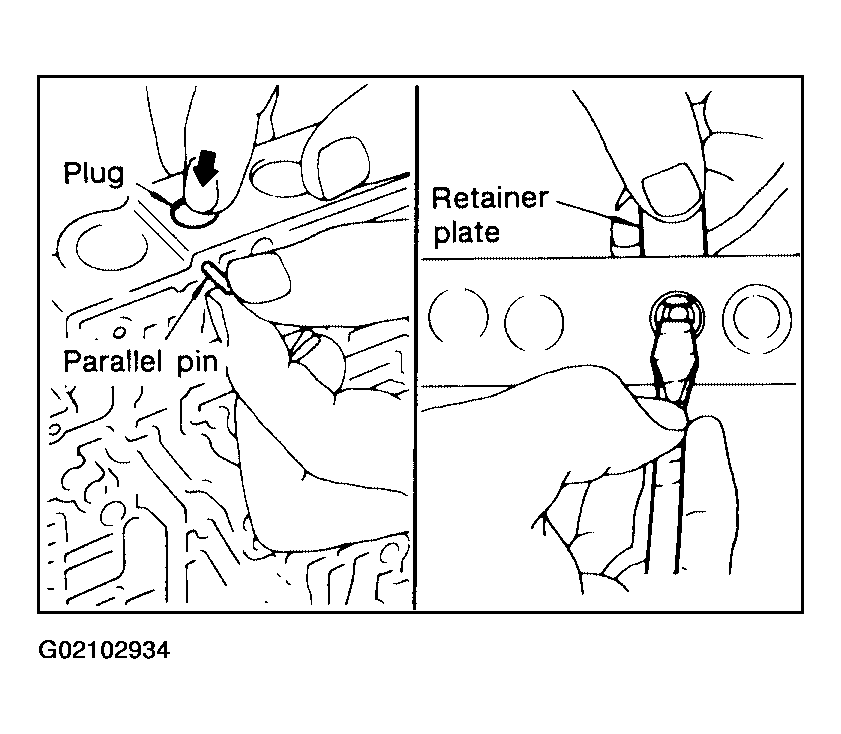

Install parallel pins and retainer plates.

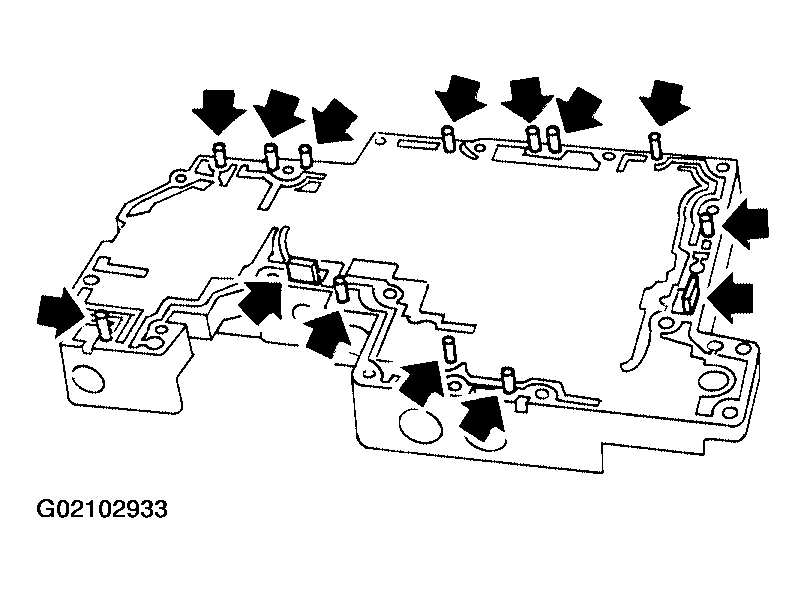

Fig 2: Installing Parallel Pins And Retainer Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
- While pushing plug, install parallel pin.
- Insert retainer plate while pushing spring.
