Control Valve Lower Body: Disassembly

  1. Remove valves at parallel pins.
  2. Remove valves at retainer plates.

    For removal procedures, refer to "DISASSEMBLY ".

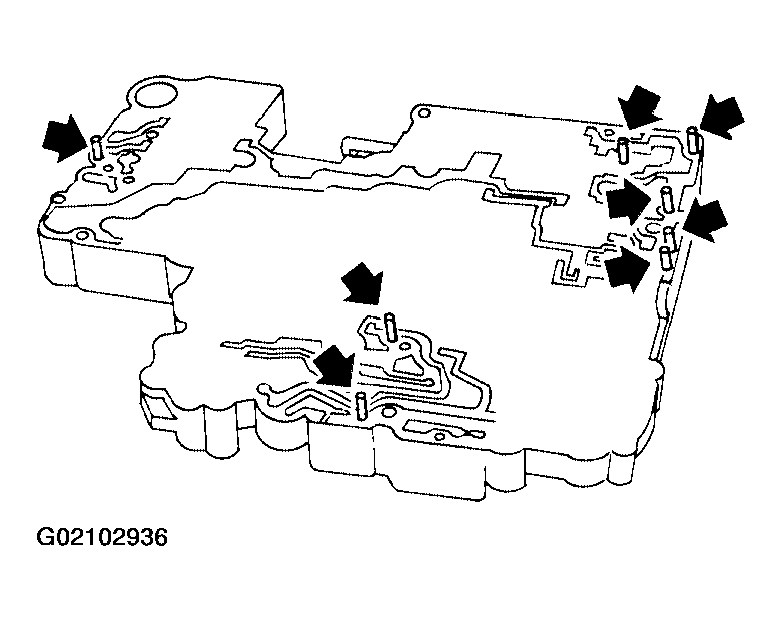

    Fig 1: Removing Valves At Parallel Pins
    G02102936Courtesy of NISSAN MOTOR CO., U.S.A.
