Band Servo Piston Assembly: Components

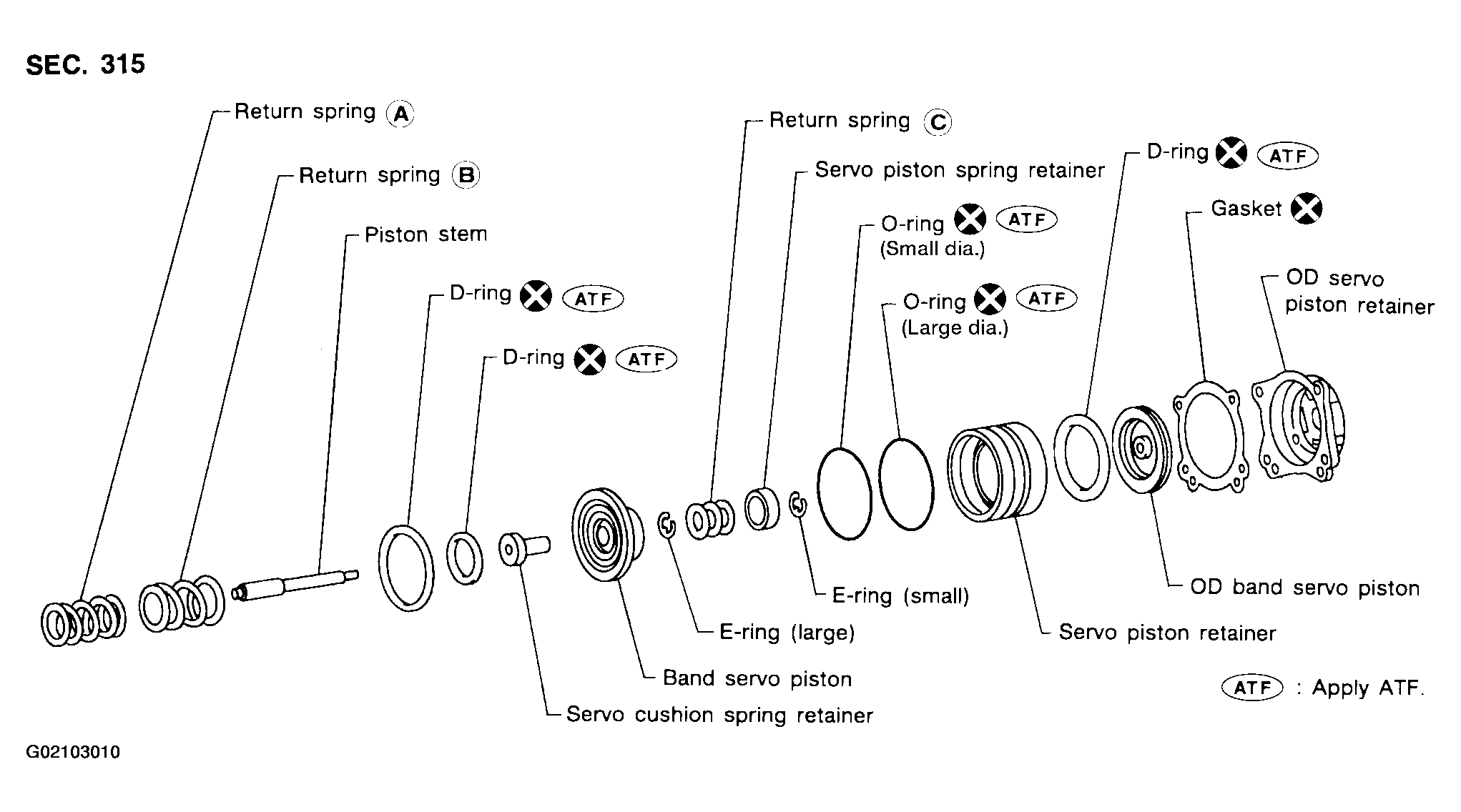

Fig 1: Identifying Components Of Band Servo Piston Assembly

G02103010

Courtesy of NISSAN MOTOR CO., U.S.A.
