Shift Lock System Electrical Parts Location

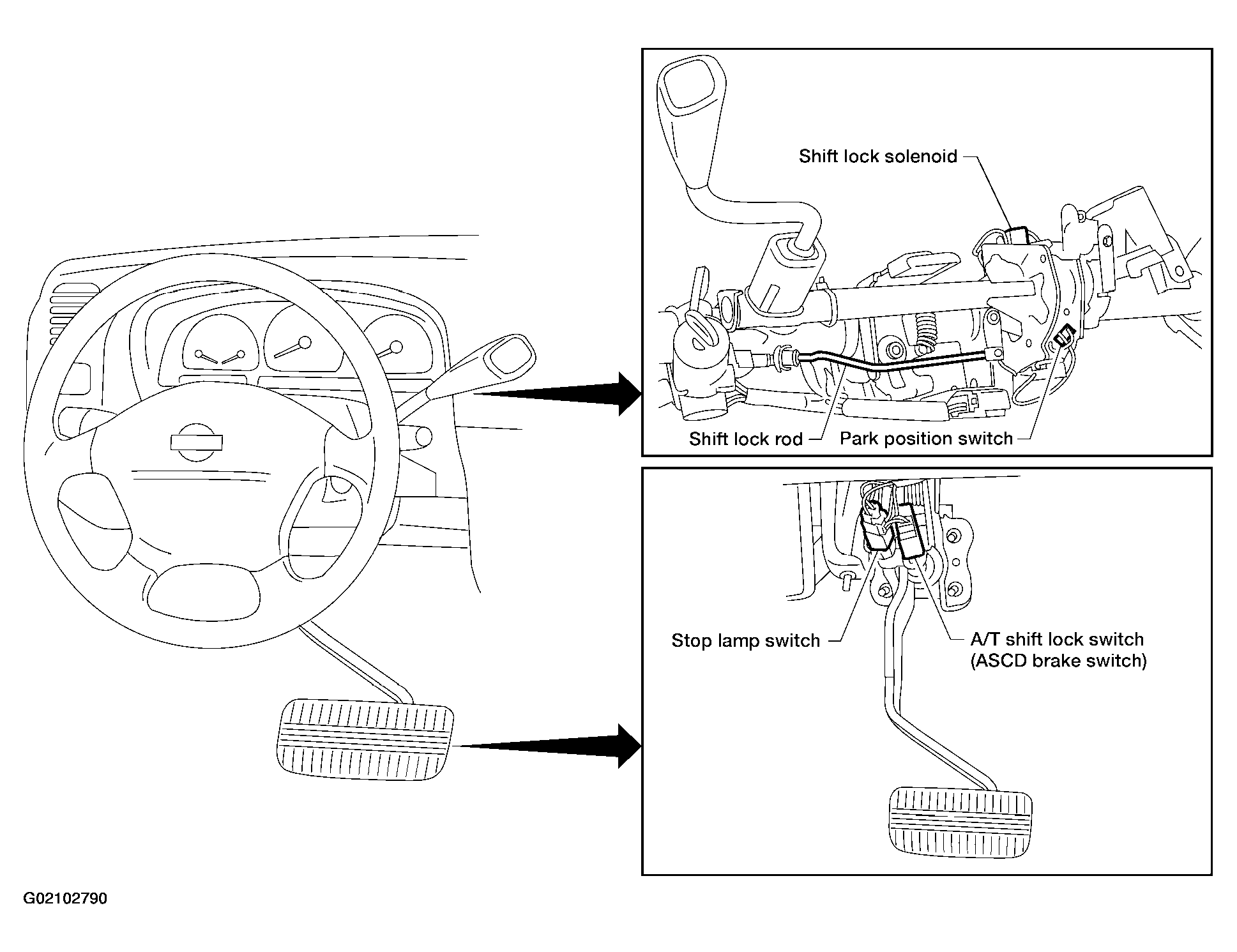

Fig 1: Identifying Shift Lock System Electrical Parts Location

G02102790

Courtesy of NISSAN MOTOR CO., U.S.A.
