Fuel Pump Assembly: Removal

  1. Remove fuel tank. See FUEL TANK .
  2. Remove the six screws.
  3. Remove retainer, fuel pump and fuel level sensor assembly. See Fig 1 and Fig 2 .
  4. Remove fuel pump with bracket while lifting the pawl of the fuel pump bracket upward.
  5. Remove fuel level sensor.

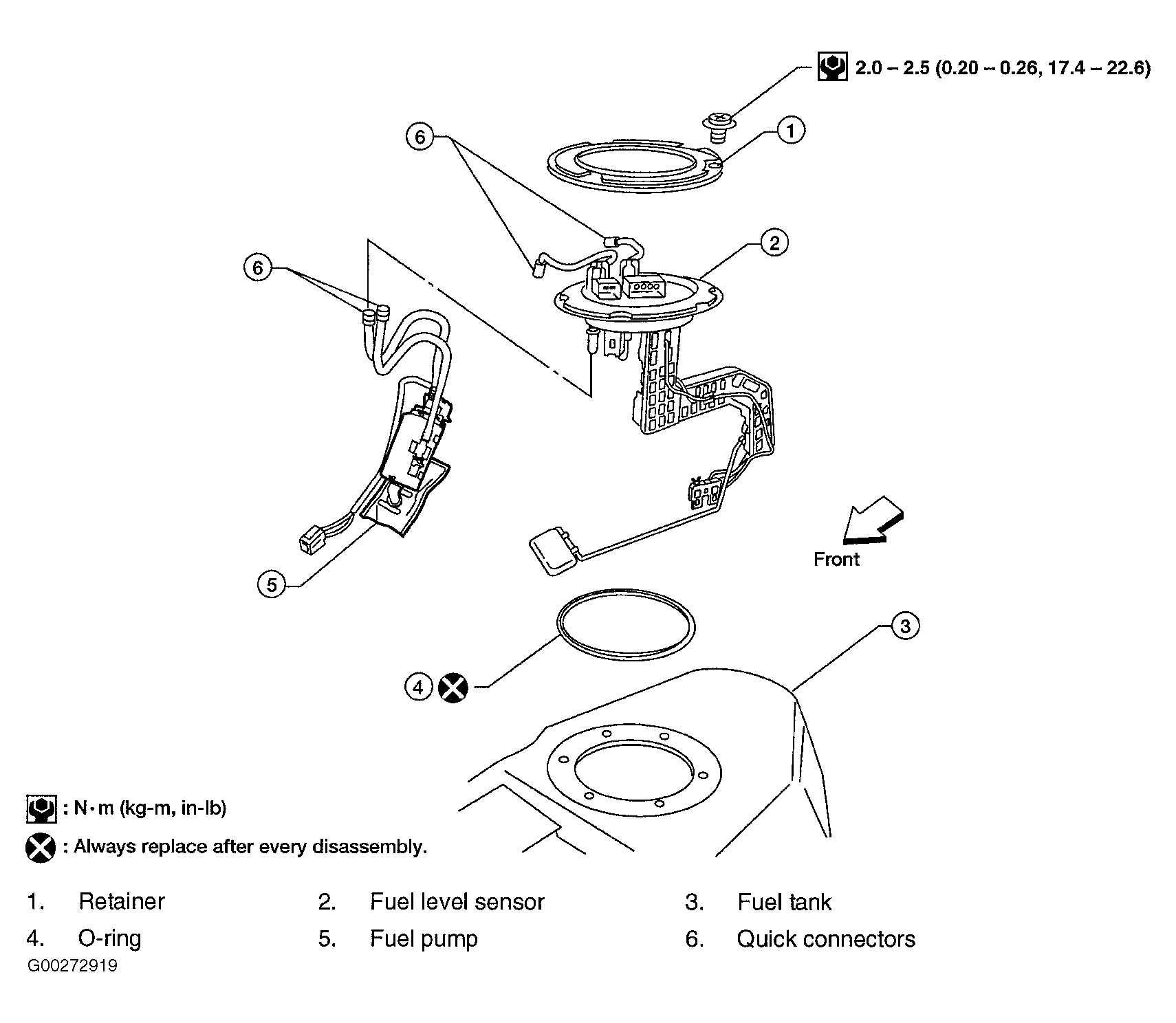

Fig 1: Identifying Fuel Pump Components (1 Of 2)
G00272919Courtesy of NISSAN MOTOR CO., U.S.A.

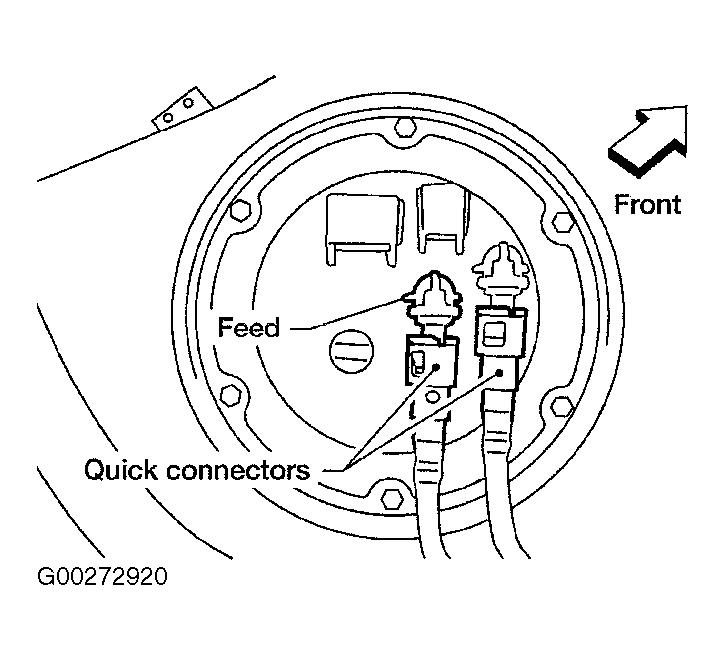

Fig 2: Identifying Fuel Pump Components (2 Of 2)
G00272920Courtesy of NISSAN MOTOR CO., U.S.A.
