Power Supply & Ground Circuit Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For power supply and ground circuit check, see .Fig 1 -Fig 3

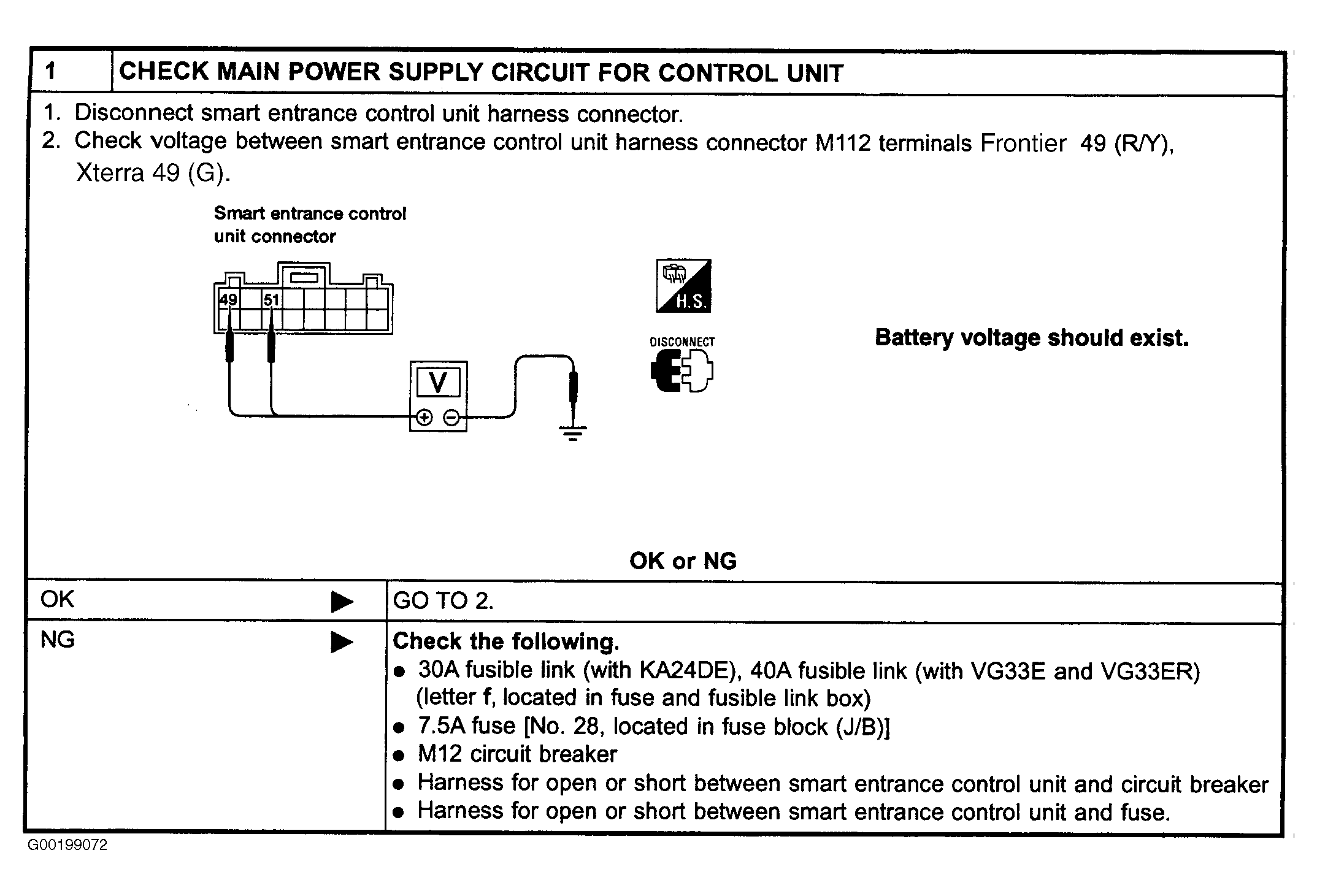

Fig 1: Identifying Power Supply & Ground Circuit Check, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

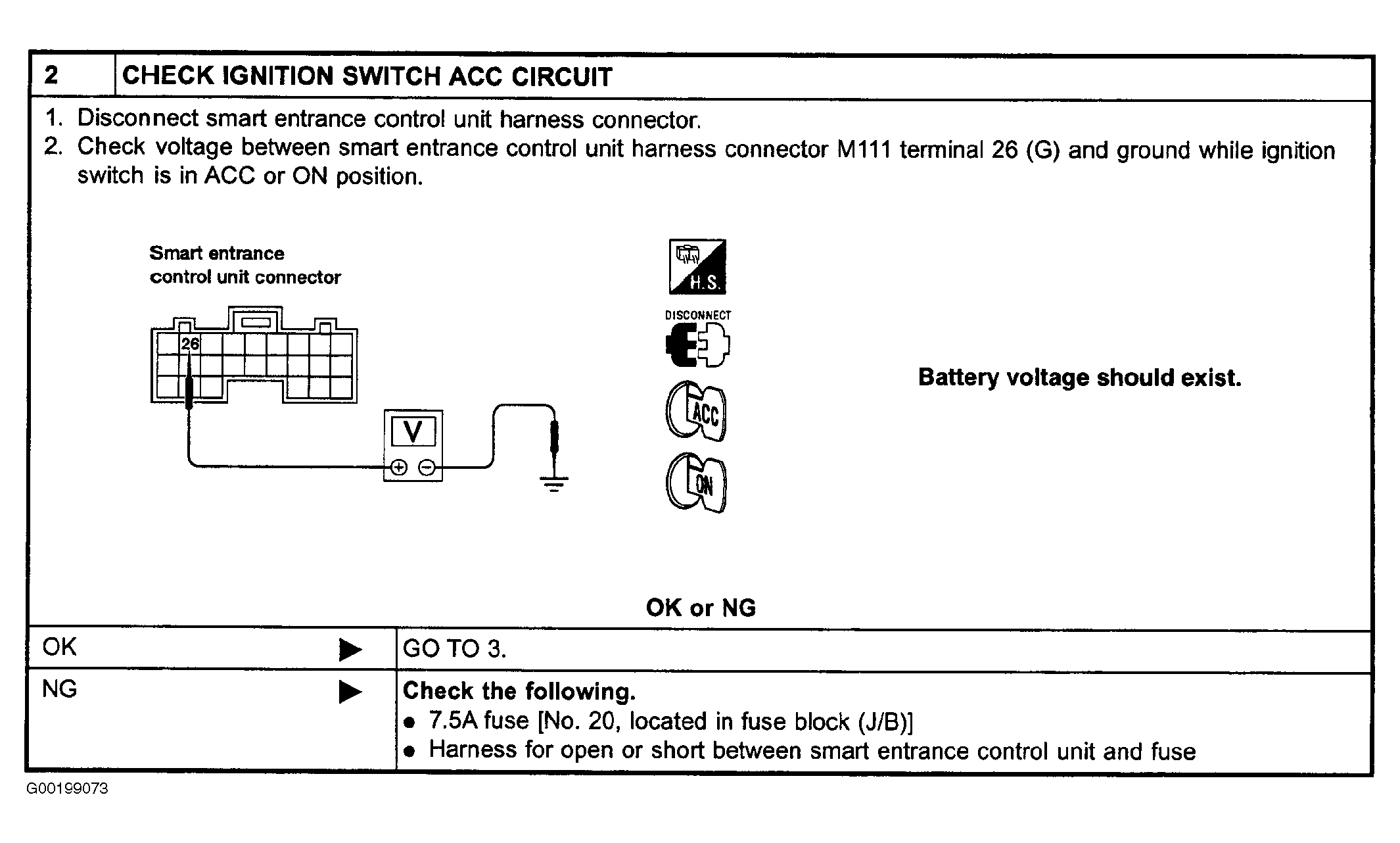

Fig 2: Identifying Power Supply & Ground Circuit Check, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

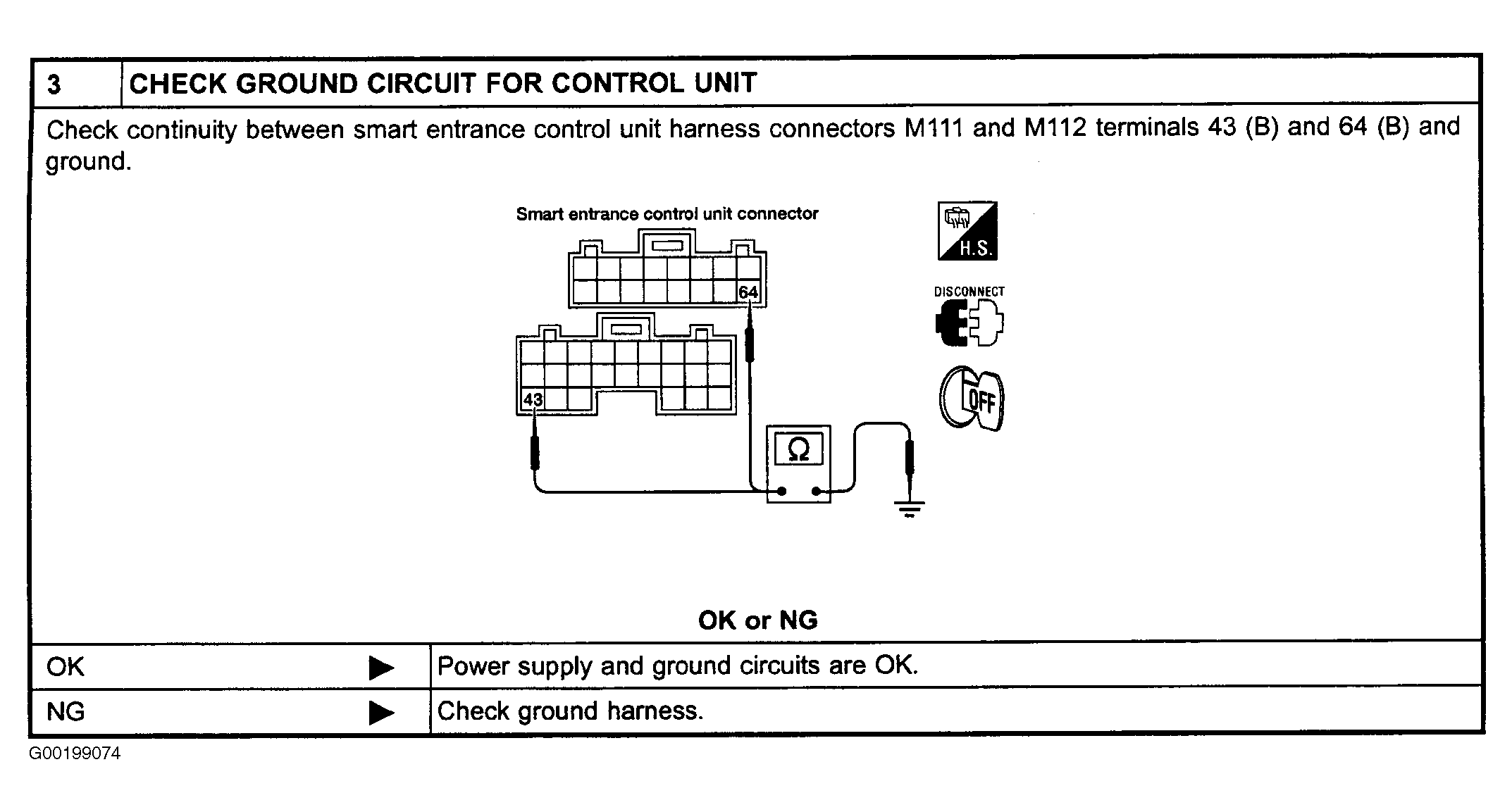

Fig 3: Identifying Power Supply & Ground Circuit Check, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
