Automatic Speed Control Device Wire Adjustment

Adjust the tension of ASCD wire in the following manner.

1. Loosen lock nut and adjusting nut. See Fig 1 -Fig 3
2. Ensure that accelerator wire is properly adjusted.
3. Tighten adjusting nut just until throttle drum starts to move.
4. Loosen adjusting nut again 1/2 to 1 turn.
5. Tighten lock nut to specification. See Fig 1 -Fig 3 .

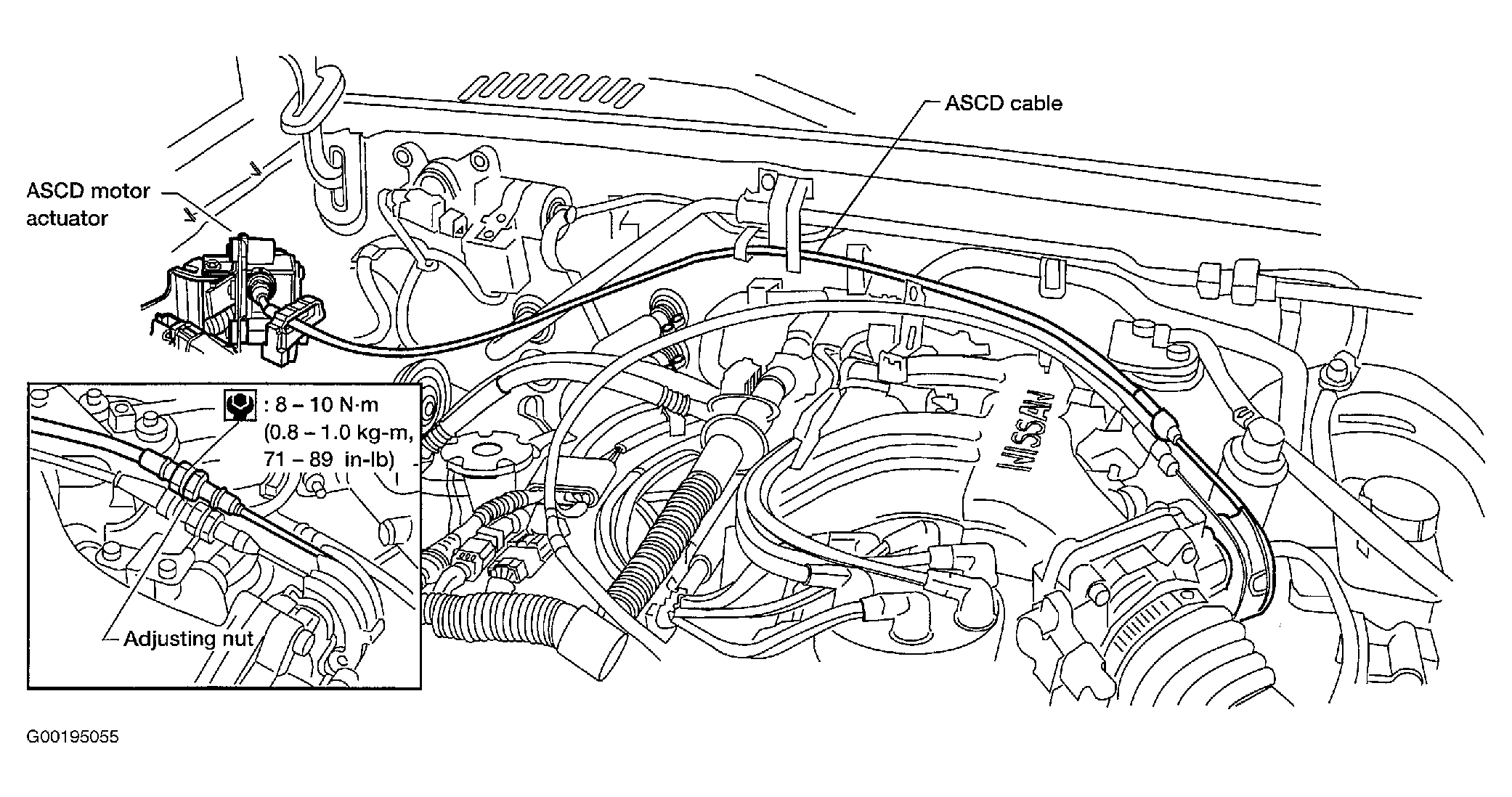

Fig 1: Adjusting ASCD Wire (KA24DE)

Courtesy of NISSAN MOTOR CO., U.S.A.

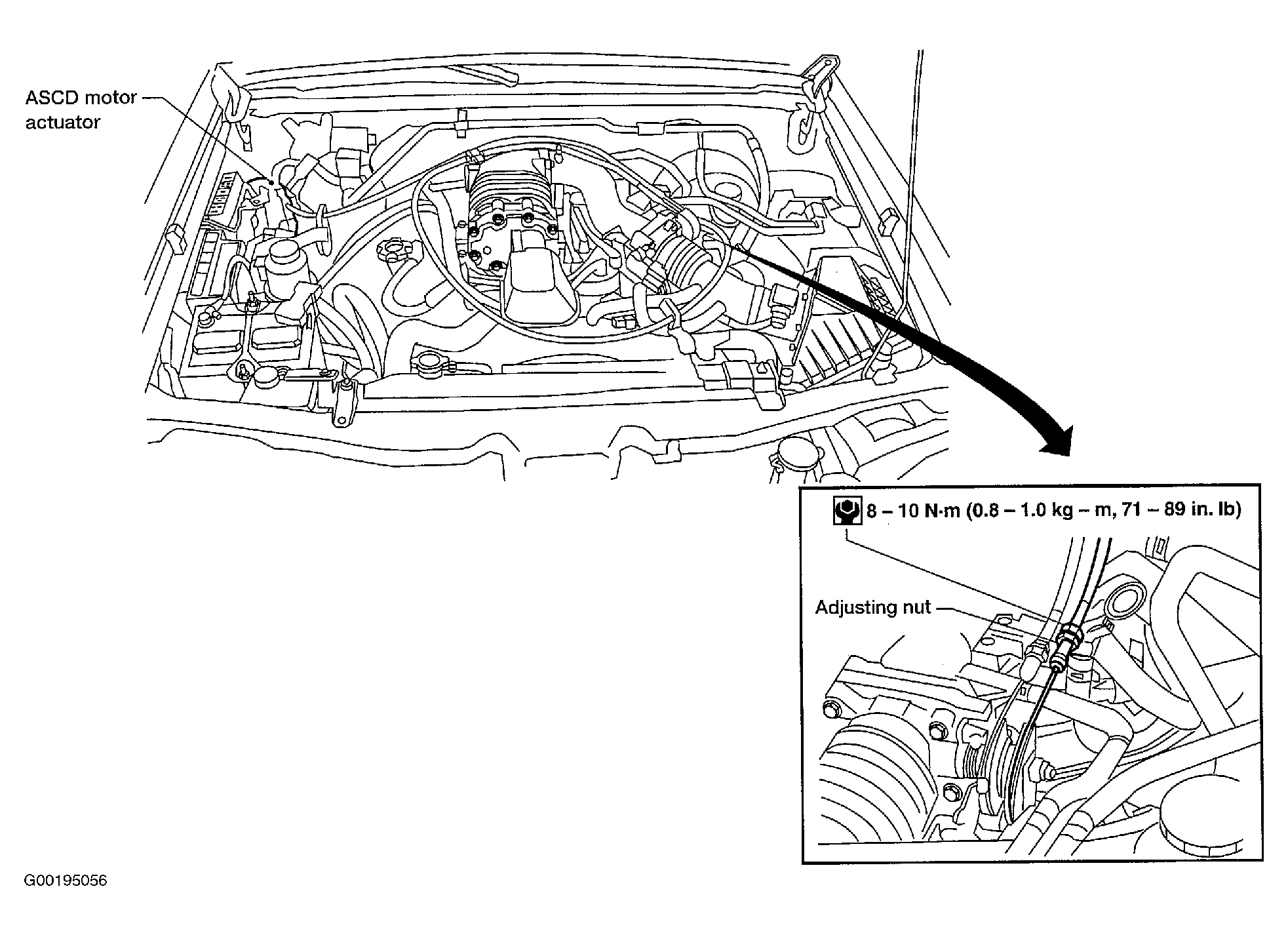

Fig 2: Adjusting ASCD Wire (VG33E)

Courtesy of NISSAN MOTOR CO., U.S.A.

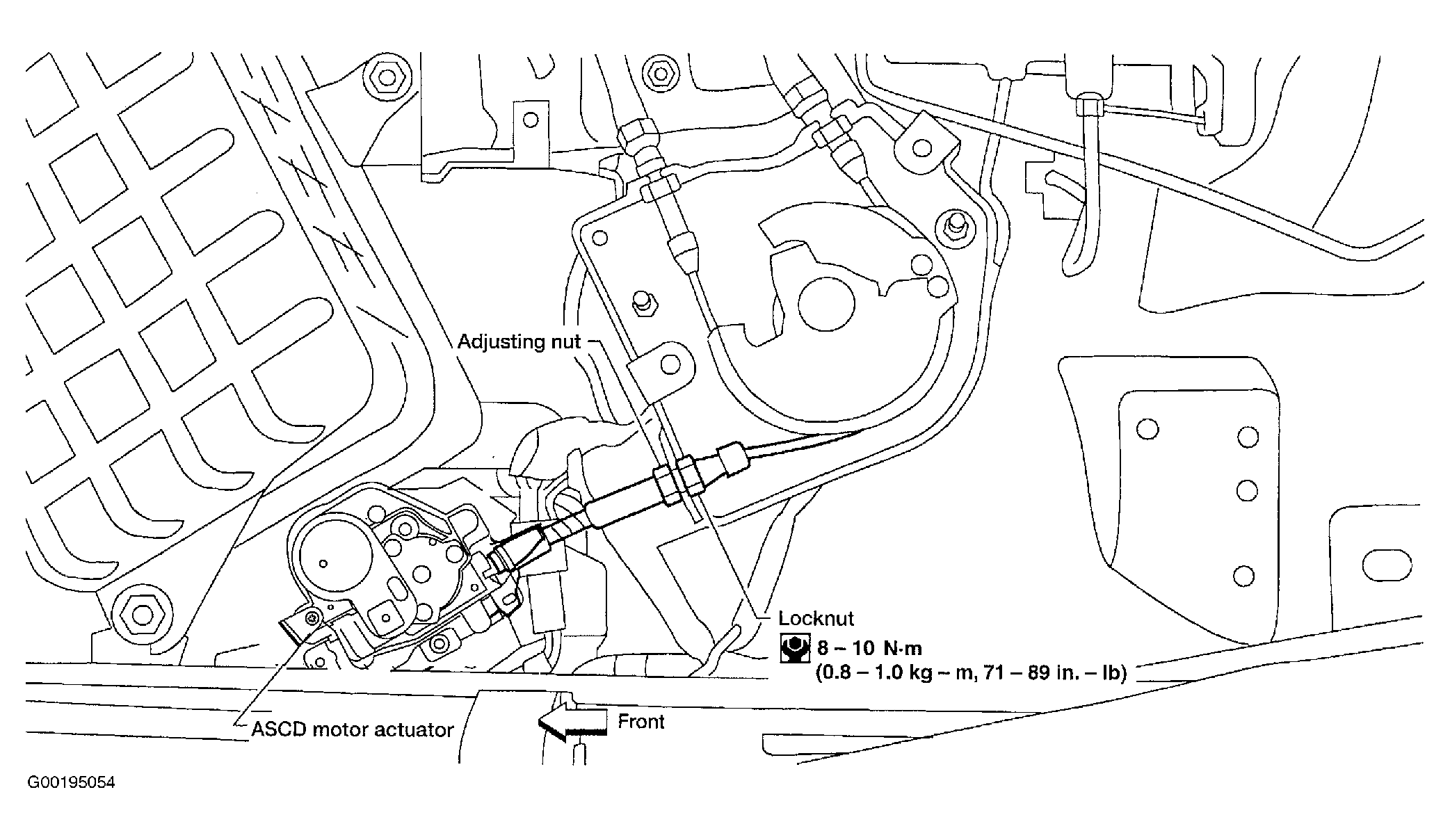

Fig 3: Adjusting ASCD Wire (VG33ER)

Courtesy of NISSAN MOTOR CO., U.S.A.
