Smart Entrance Control Unit: Description

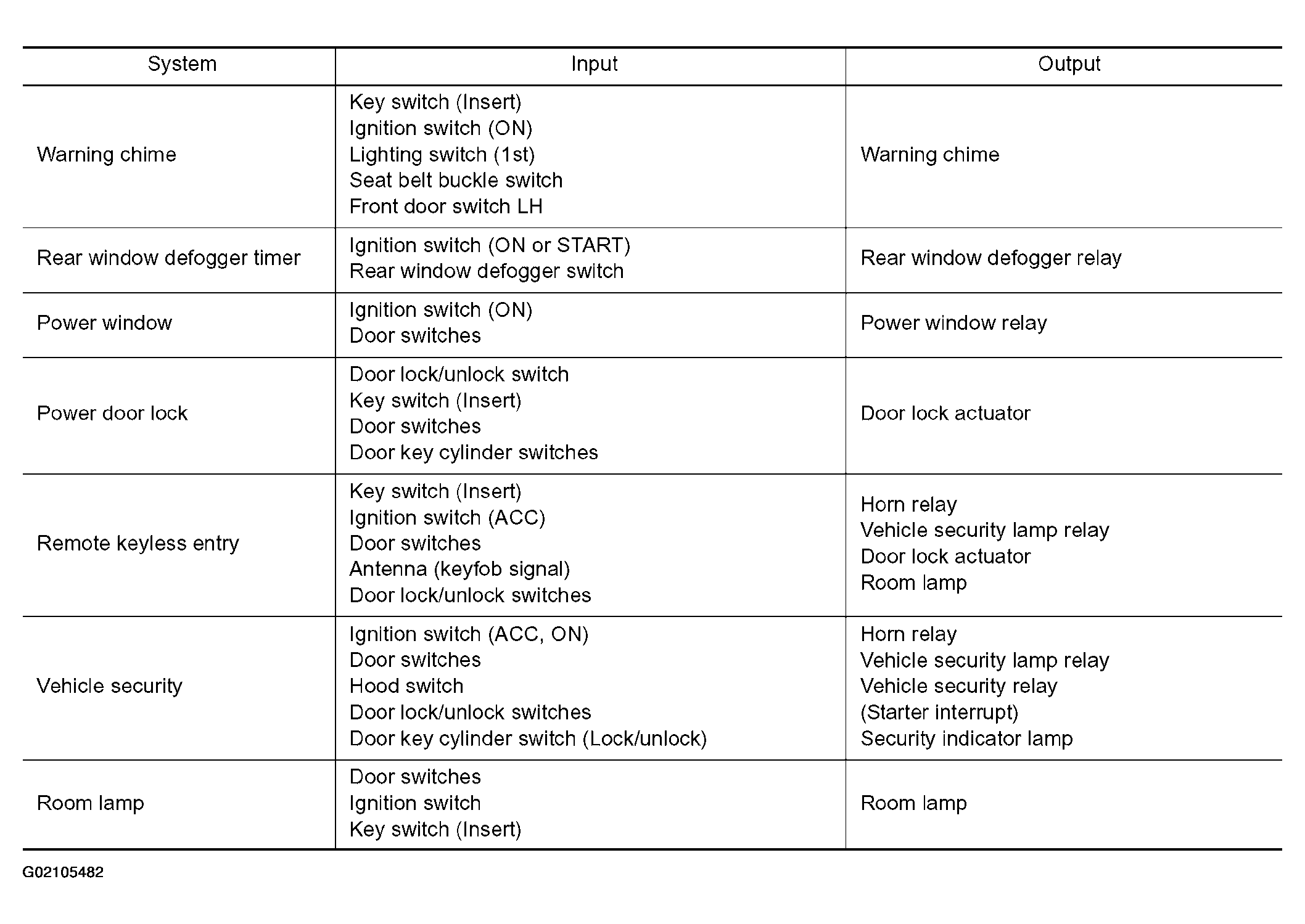

The following systems are controlled by the smart entrance control unit.
- Warning chime
- Rear window defogger timer
- Power window
- Power door lock
- Remote keyless entry
- Vehicle security
- Room lamp
For detailed description and wiring diagrams, refer to the relevant pages for the each system. The control unit receives data from the switches and sensors to control their corresponding system relays and actuators.
