Timing Chain: Components: Notes

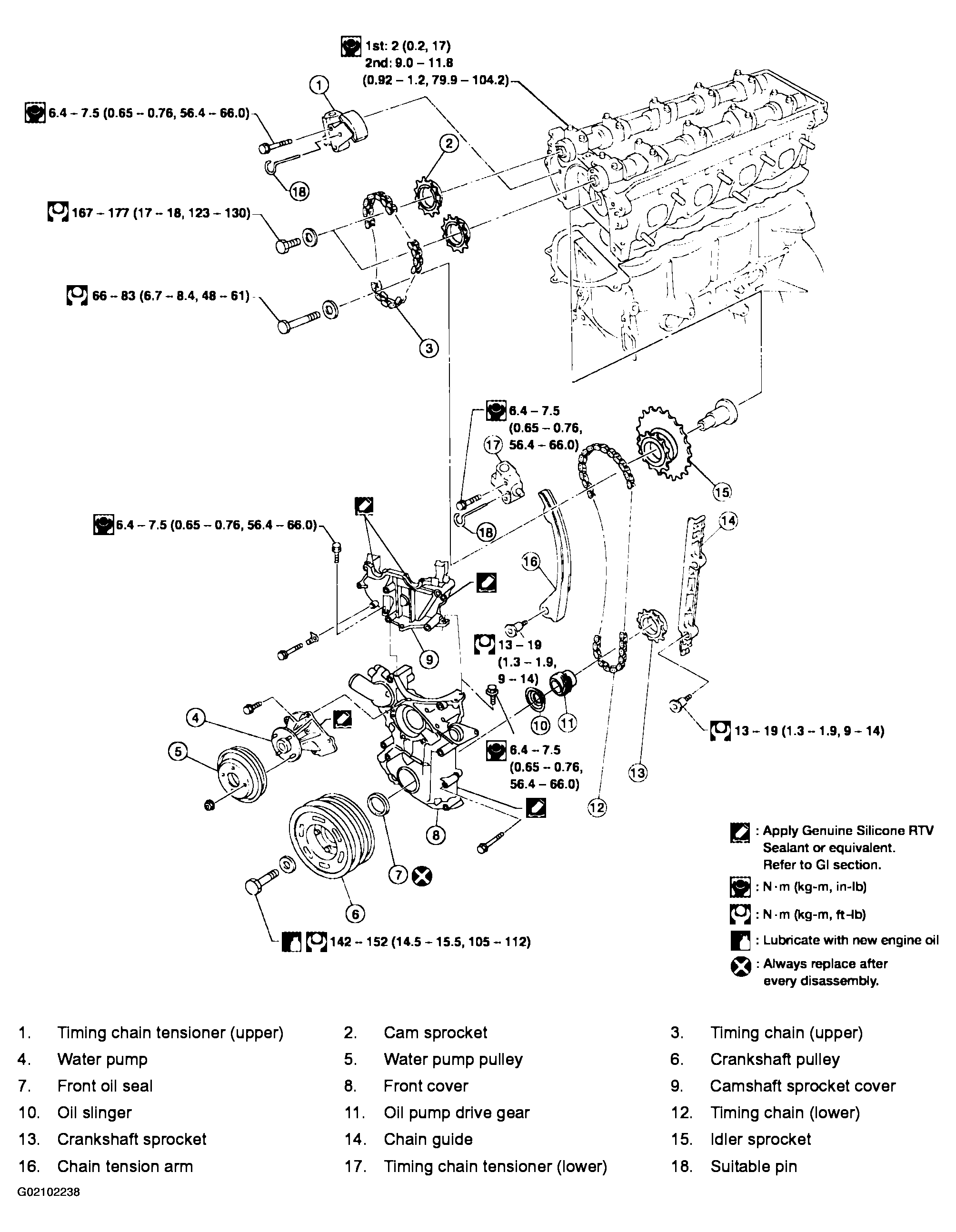

Fig 1: Exploded View Of Timing Chain Components And Torque Specifications (1 Of 2)
G02102238Courtesy of NISSAN MOTOR CO., U.S.A.

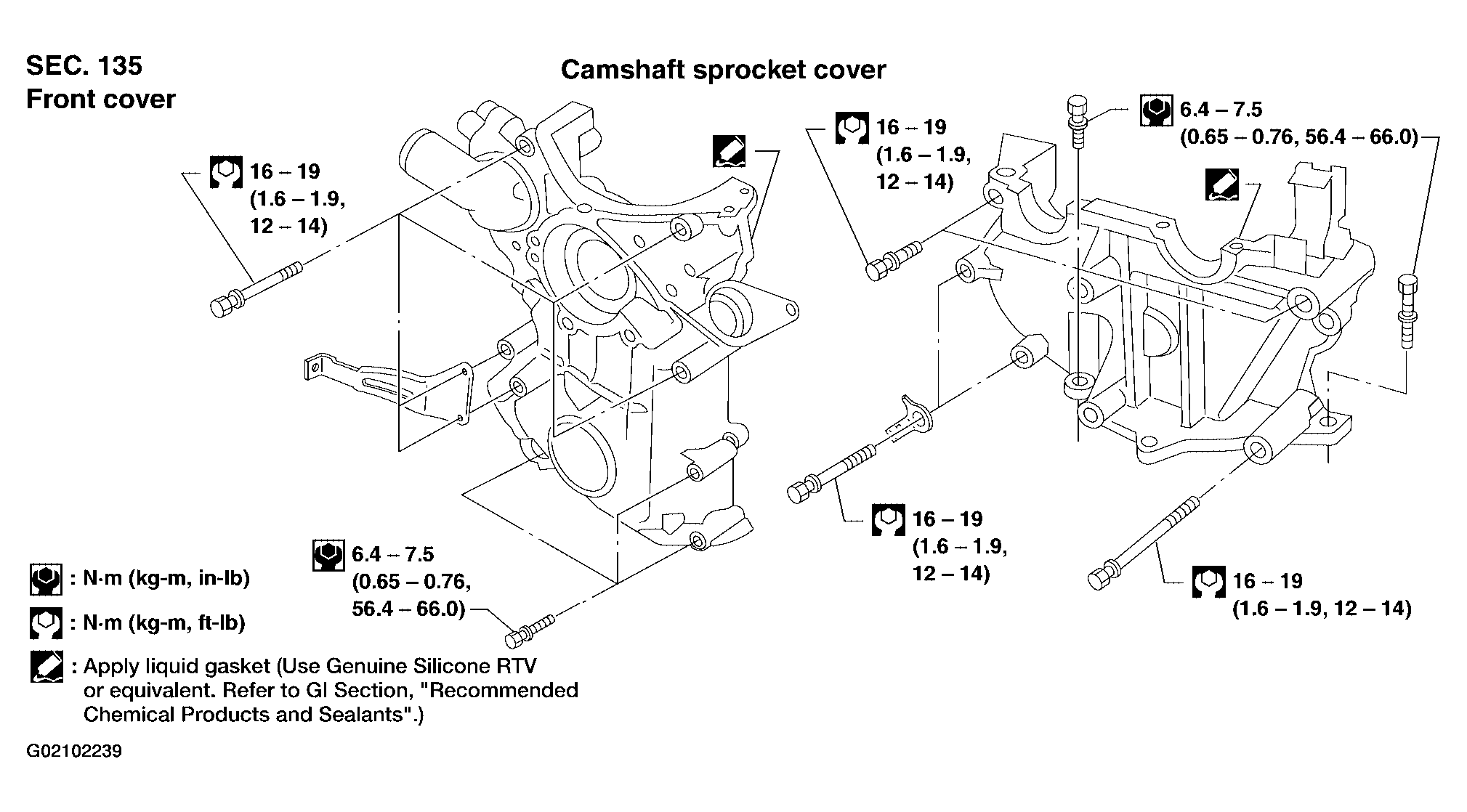

Fig 2: Exploded View Of Timing Chain Components And Torque Specifications (2 Of 2)
G02102239Courtesy of NISSAN MOTOR CO., U.S.A.
