Nissan-Datsun
>>
2003
>>
Frontier Base, Automatic
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Power Door Locks System
>>
System Tests
>>
Notes
System Tests: Notes

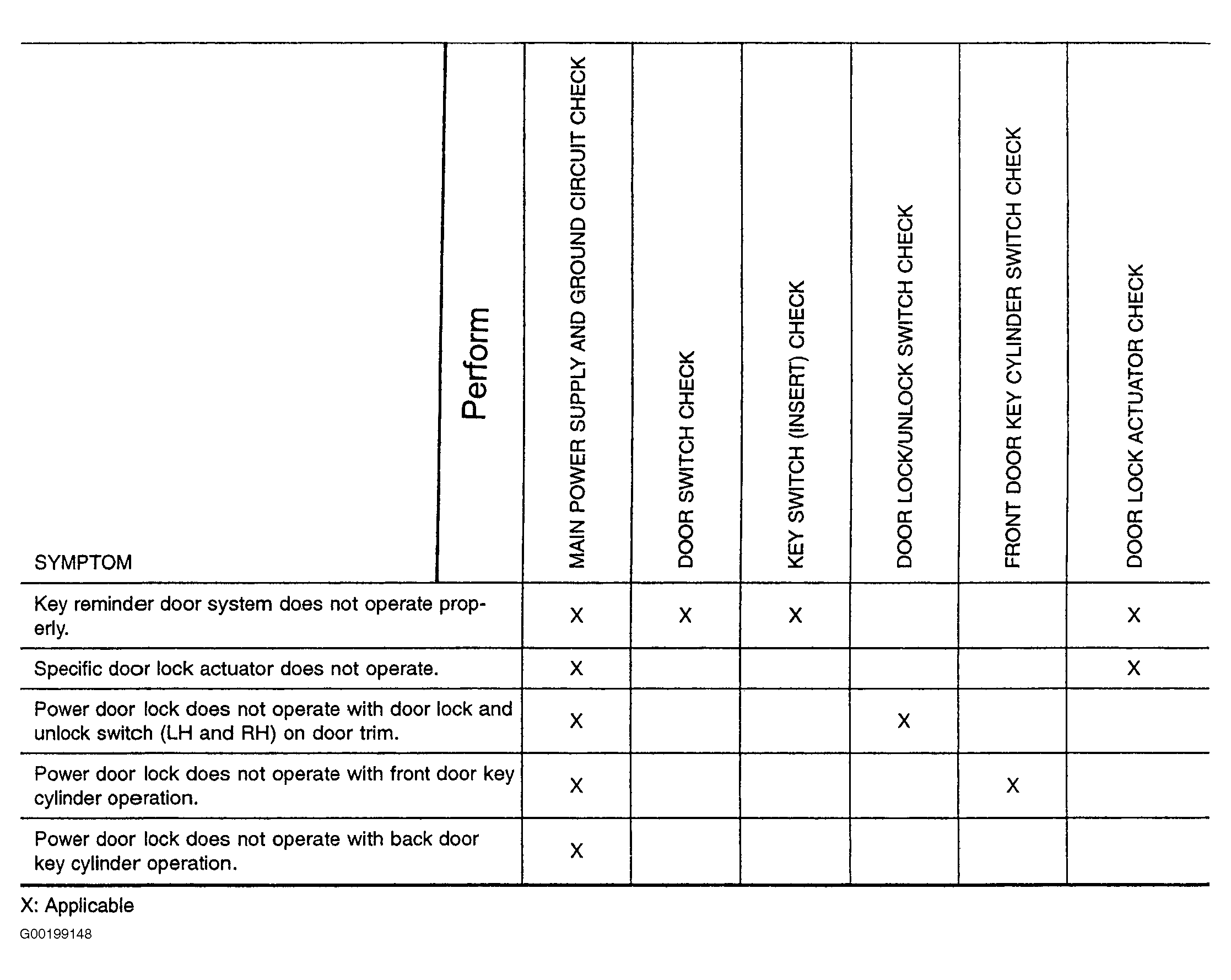

Fig 1: Identifying Symptom Chart (Frontier)
Courtesy of NISSAN MOTOR CO., U.S.A.

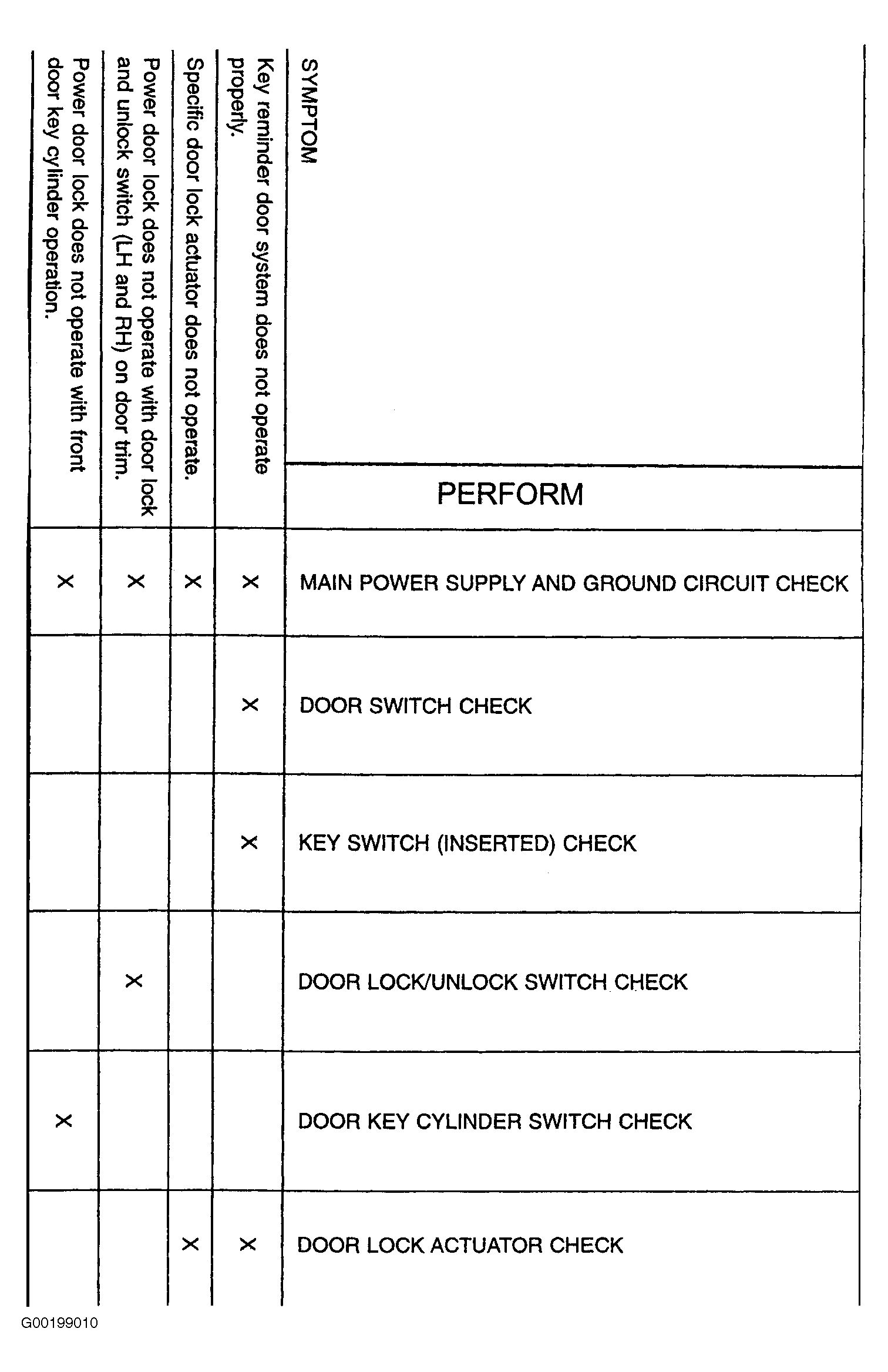

Fig 2: Identifying Symptom Chart (Xterra)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
