Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

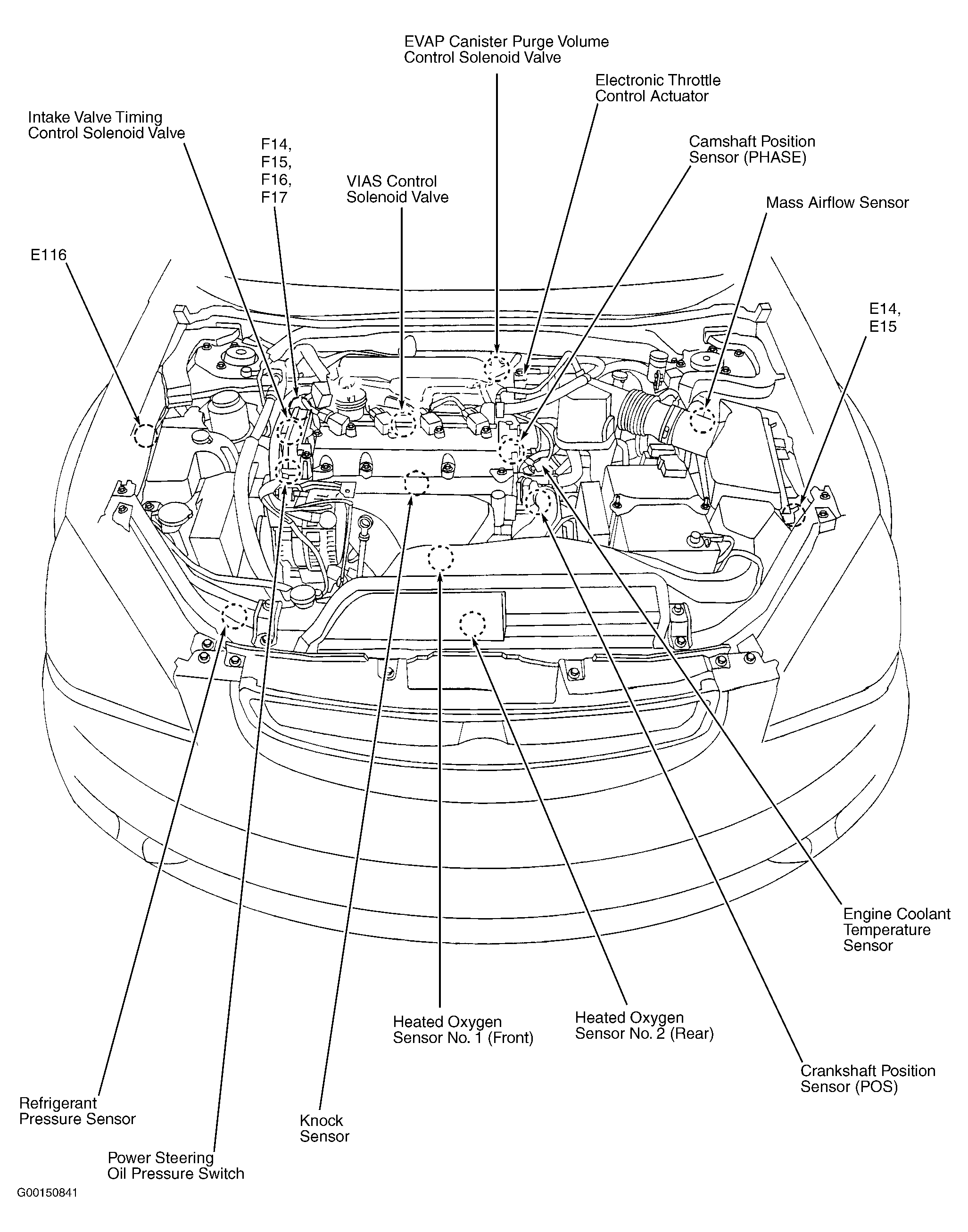

Fig 1: Engine Compartment (2.5L VIN A)

Courtesy of NISSAN MOTOR CO., U.S.A.

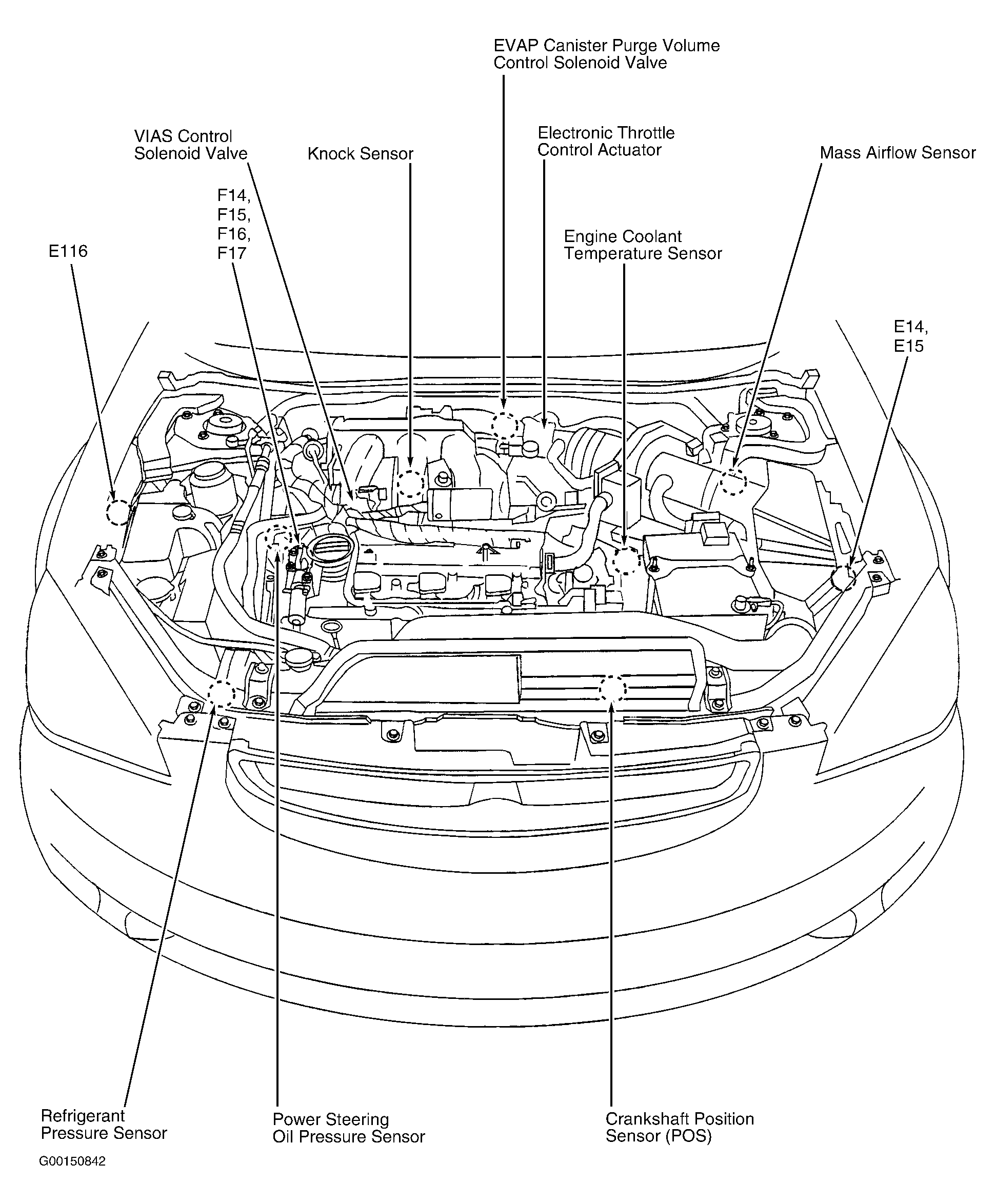

Fig 2: Engine Compartment (3.5L VIN B)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

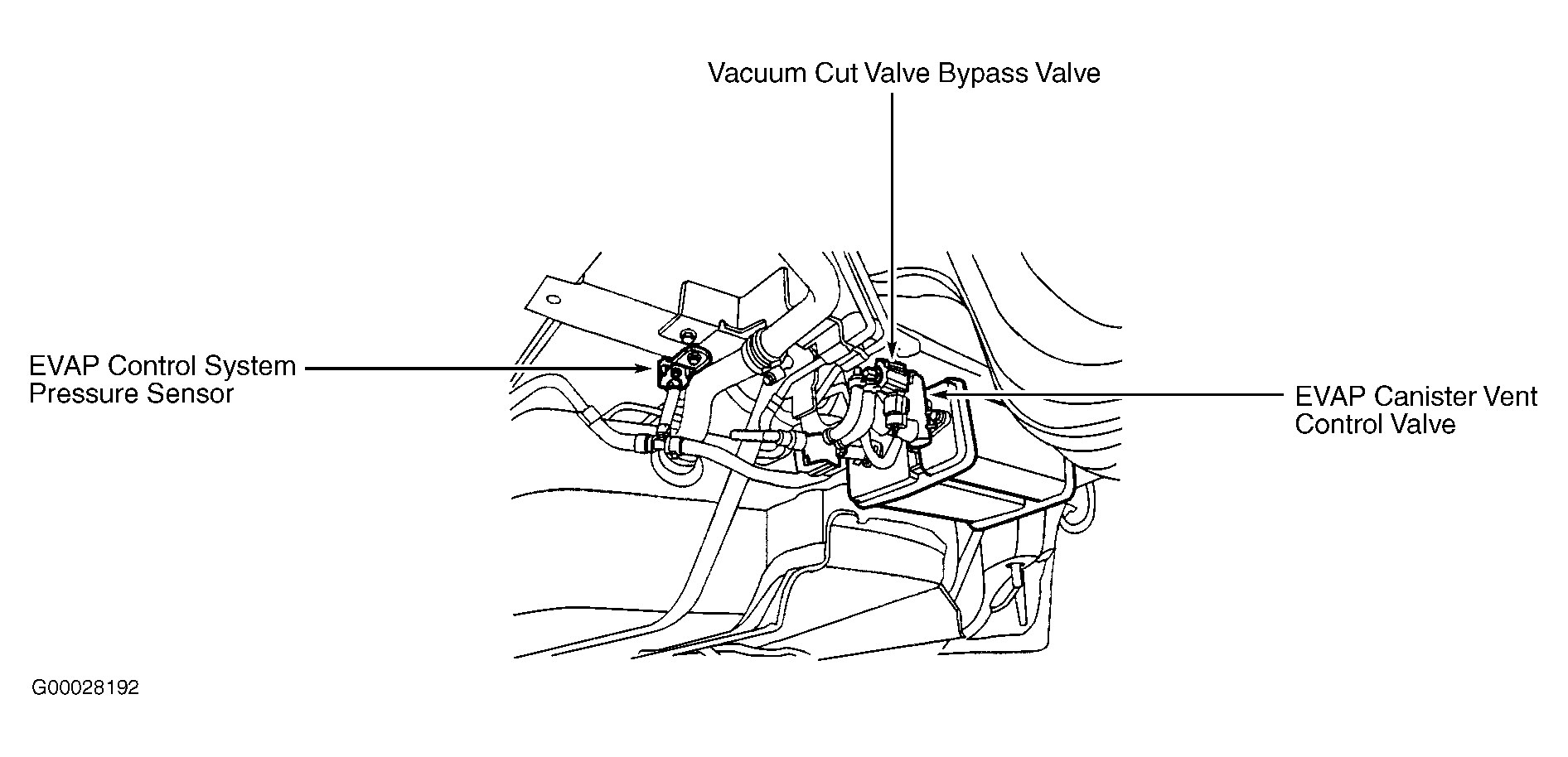

Fig 4: Center Rear Underside Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.
