Home >> Nissan-Datsun >> 2003 >> Altima SE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Diagnostic Tests >> DTC P2138: App Sensor >> Circuit Terminal Identification

Circuit Terminal Identification

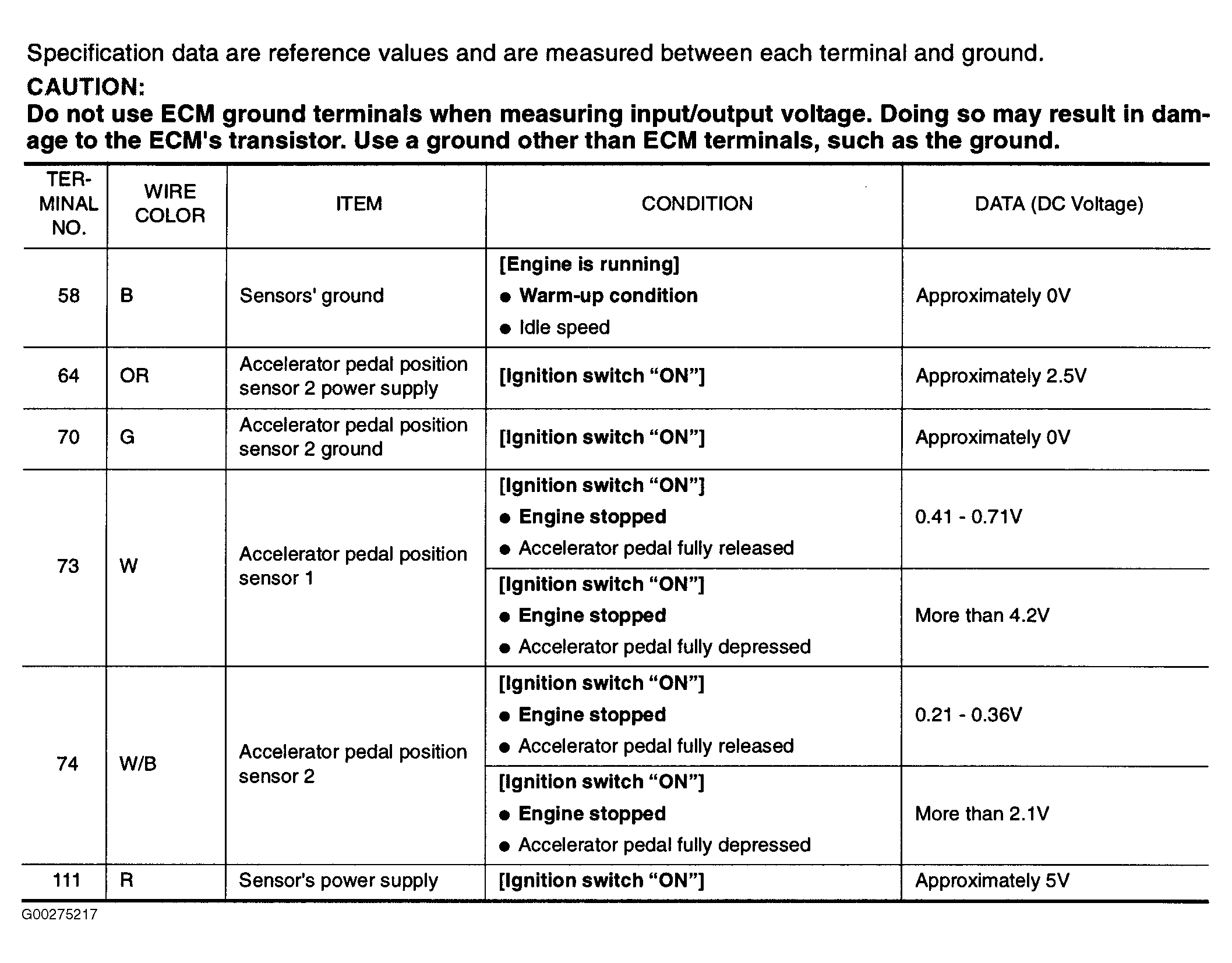

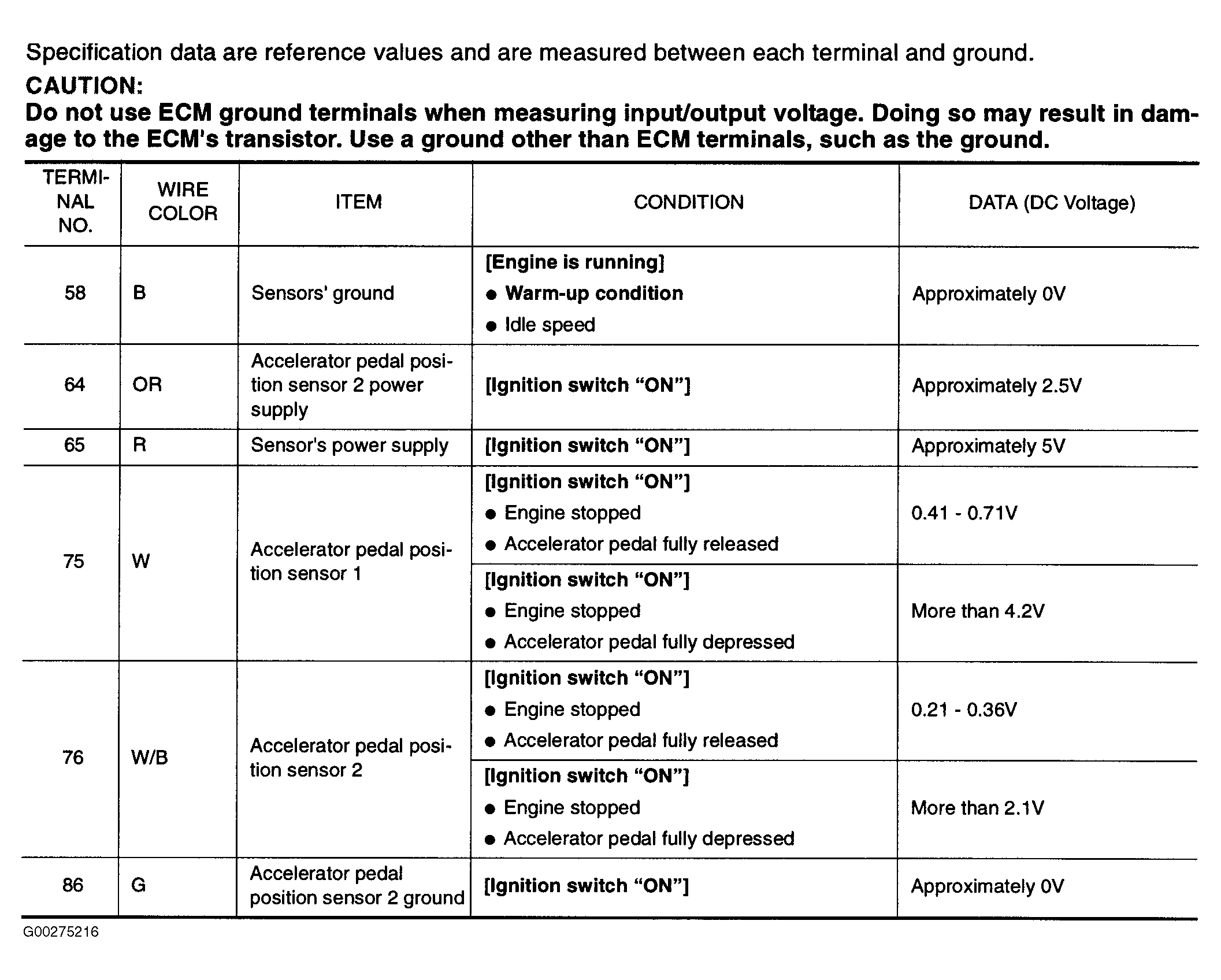

For circuit terminal identification, see Figure-Figure .
