Overall Function Check

NOTE: For diagnostic procedure, see DIAGNOSTIC PROCEDURE .

For overall function check, see Fig 1.

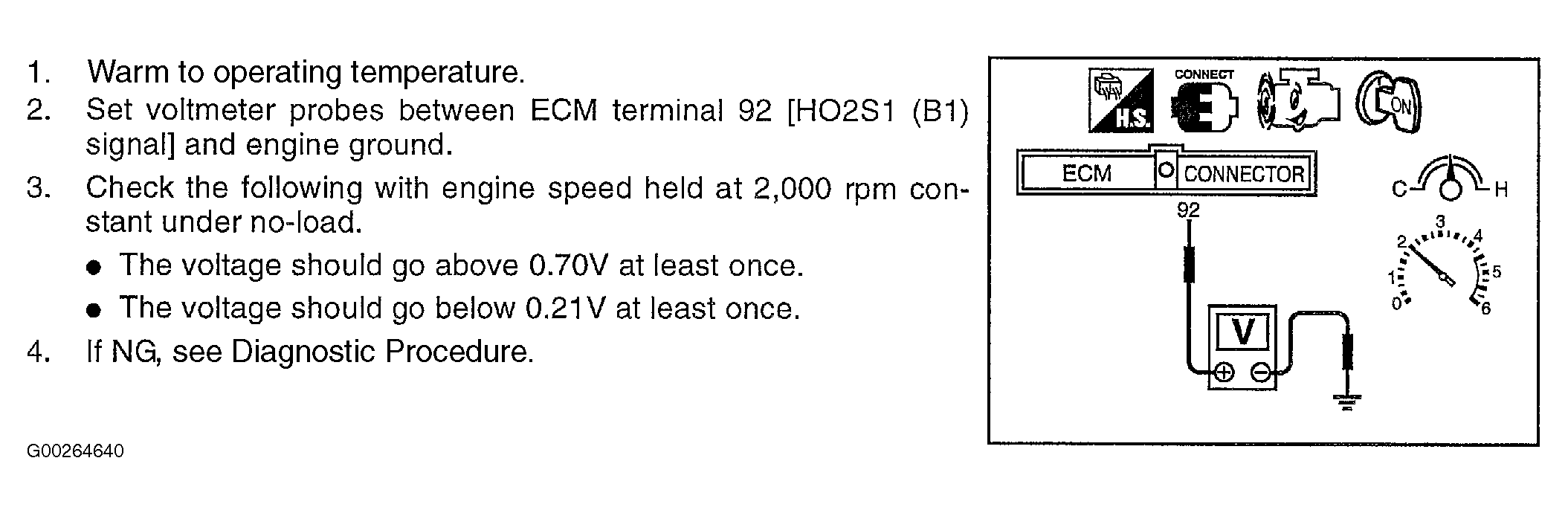

Fig 1: Identifying Overall Function Check For DTC P1148: Closed Loop Control (2.5L)
G00264640Courtesy of NISSAN MOTOR CO., U.S.A.
