Component Inspection

NOTE: For throttle valve closed position learning, see THROTTLE VALVE CLOSED POSITION LEARNING  and for idle air volume learning, see IDLE AIR VOLUME LEARNING .

For throttle control actuator component inspection, see Fig 1.

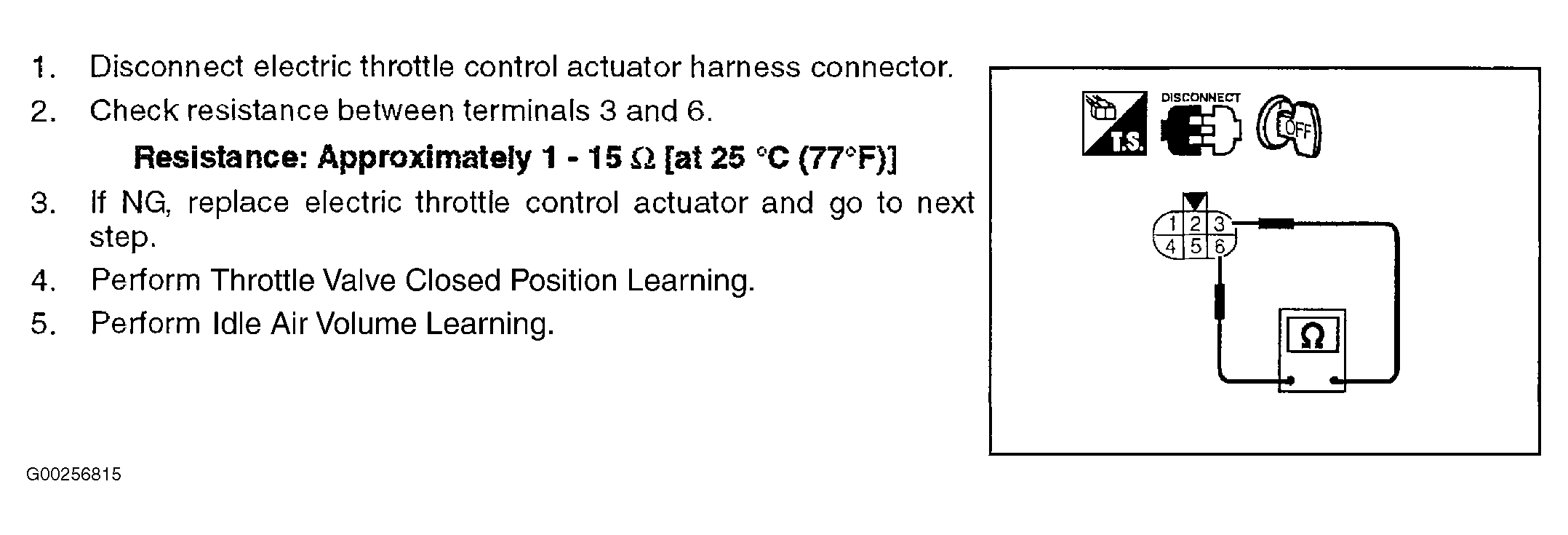

Fig 1: Component Inspection For DTC P1122: Electric Throttle Control Function
G00256815Courtesy of NISSAN MOTOR CO., U.S.A.
