Circuit Terminal Identification

For circuit terminal identification, see Fig 1-Fig 2 .

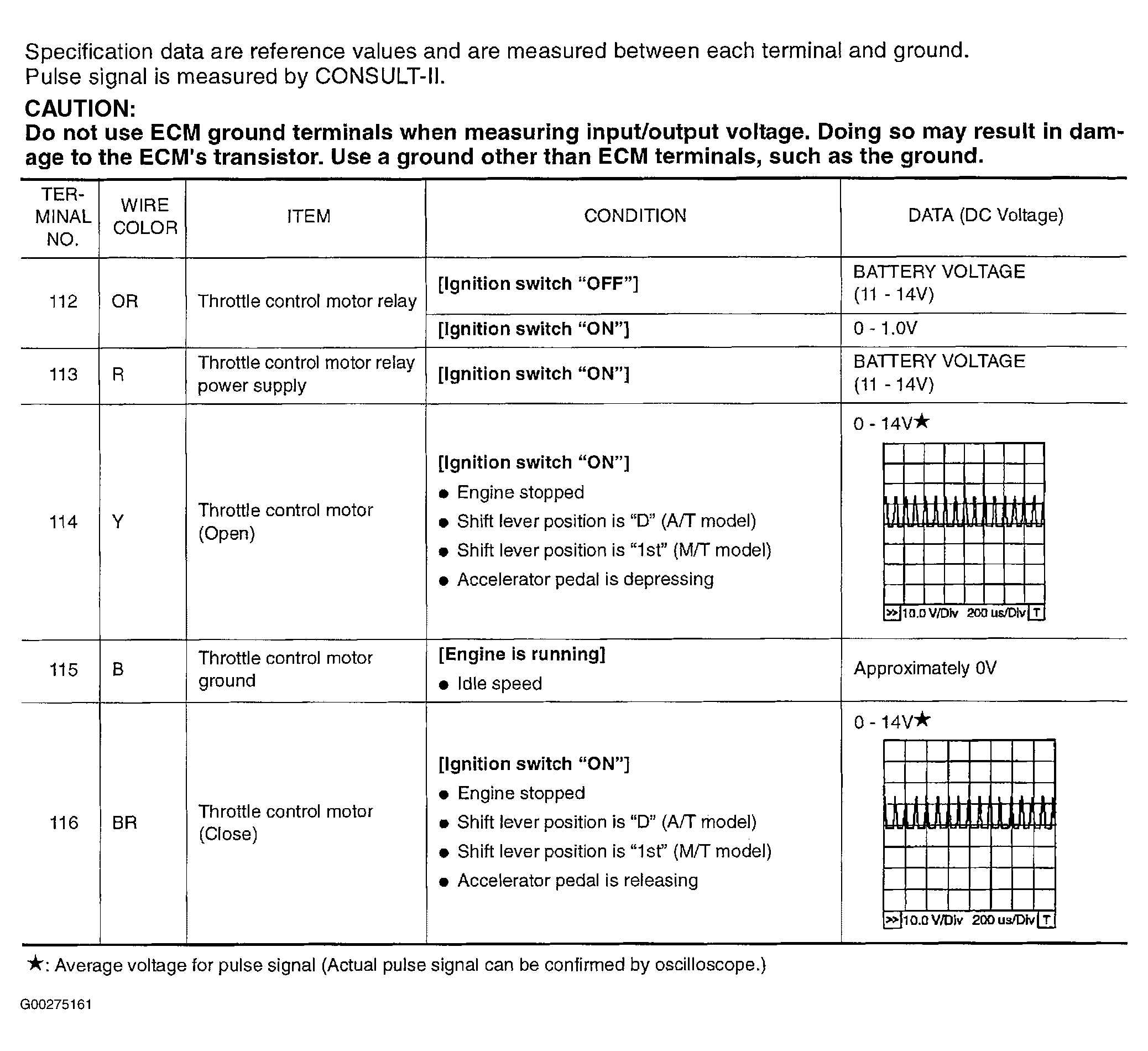

Fig 1: Circuit Testing Value Chart For DTC P1122: Electric Throttle Control Function (2.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.

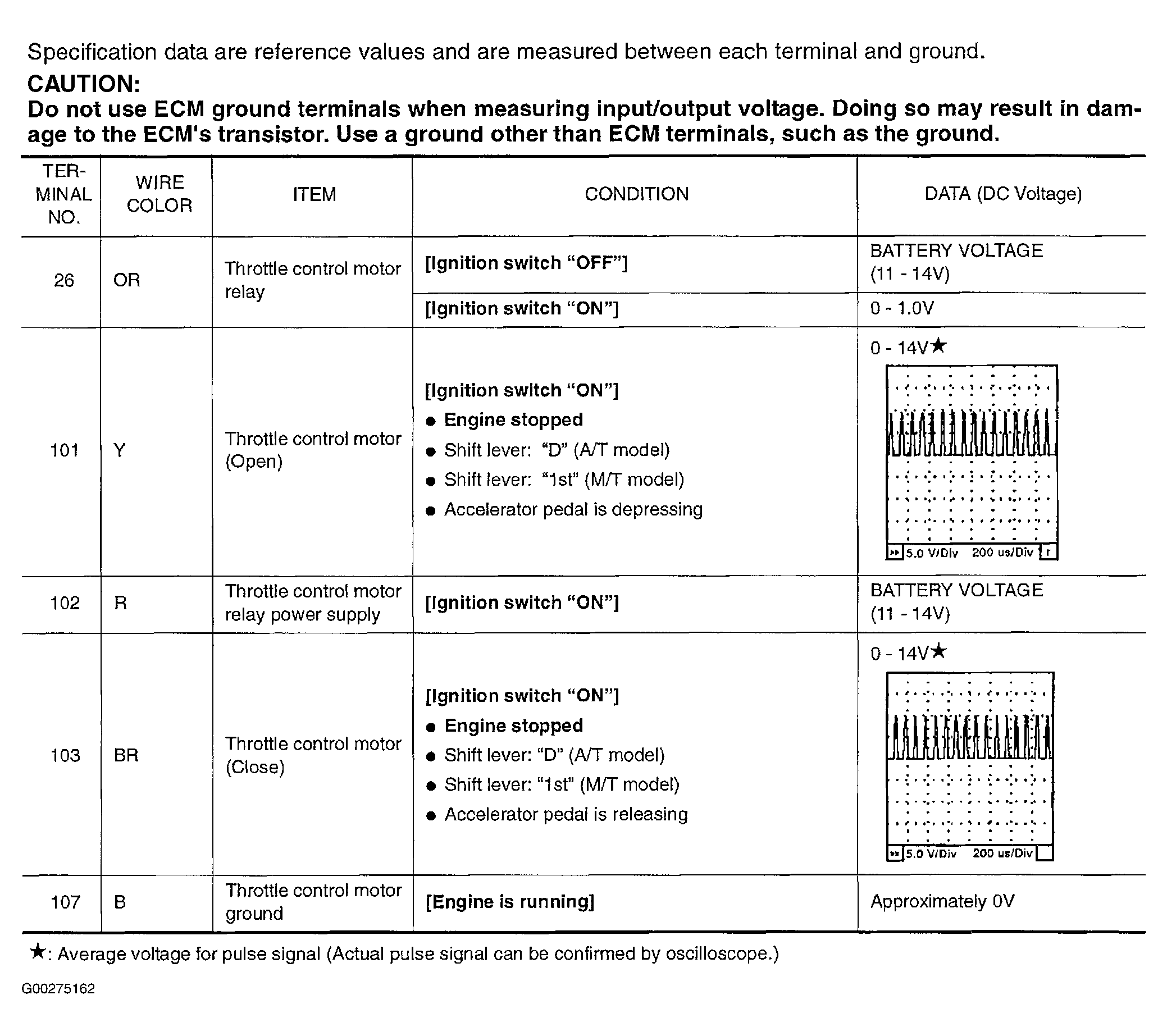

Fig 2: Circuit Testing Value Chart For DTC P1122: Electric Throttle Control Function (3.5L)

Courtesy of NISSAN MOTOR CO., U.S.A.
