Circuit Identification

For circuit identification, see Fig 1-Fig 2 .

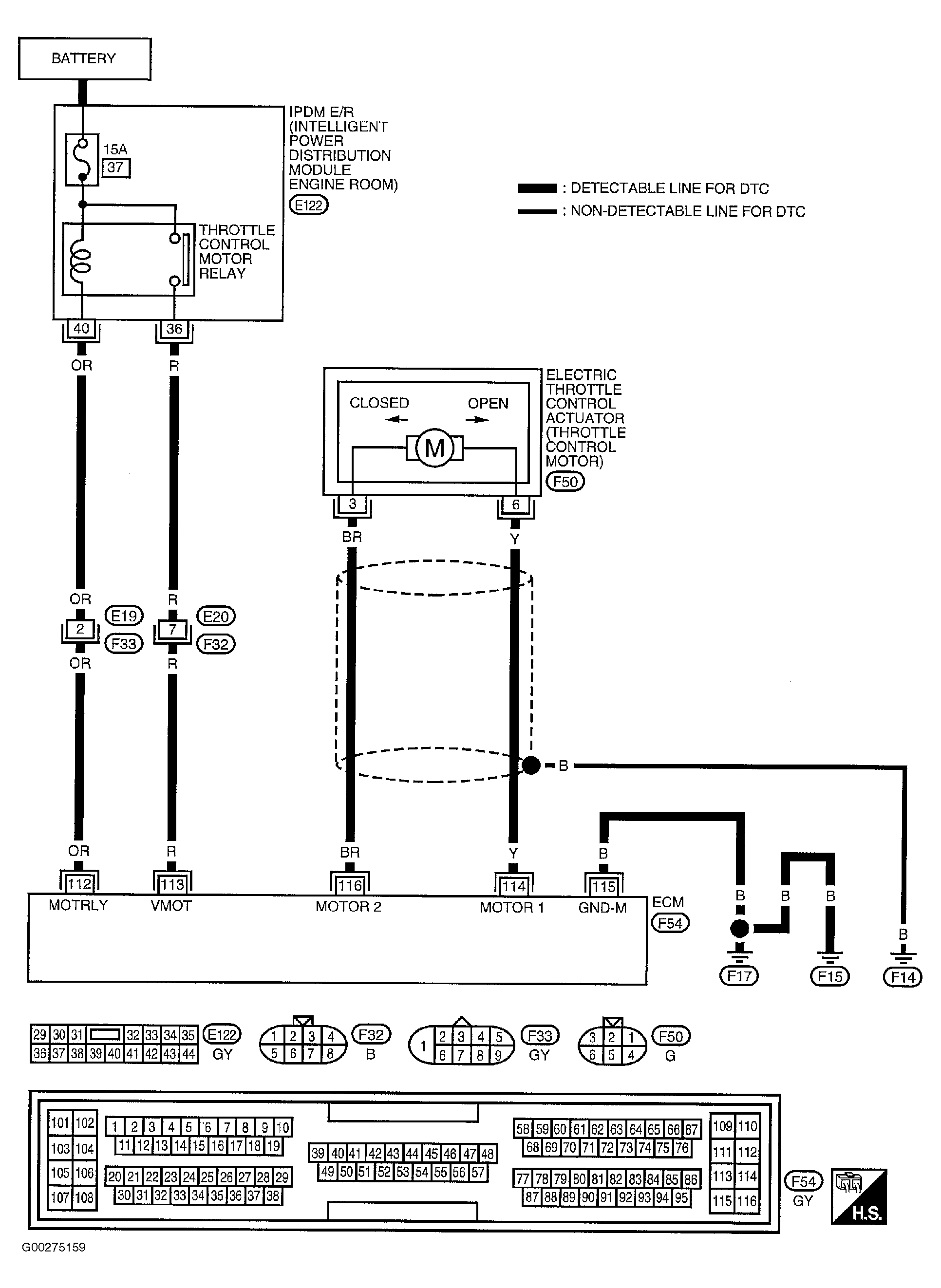

Fig 1: Circuit Identification For DTC P1122: Electric Throttle Control Function (2.5L)
G00275159Courtesy of NISSAN MOTOR CO., U.S.A.

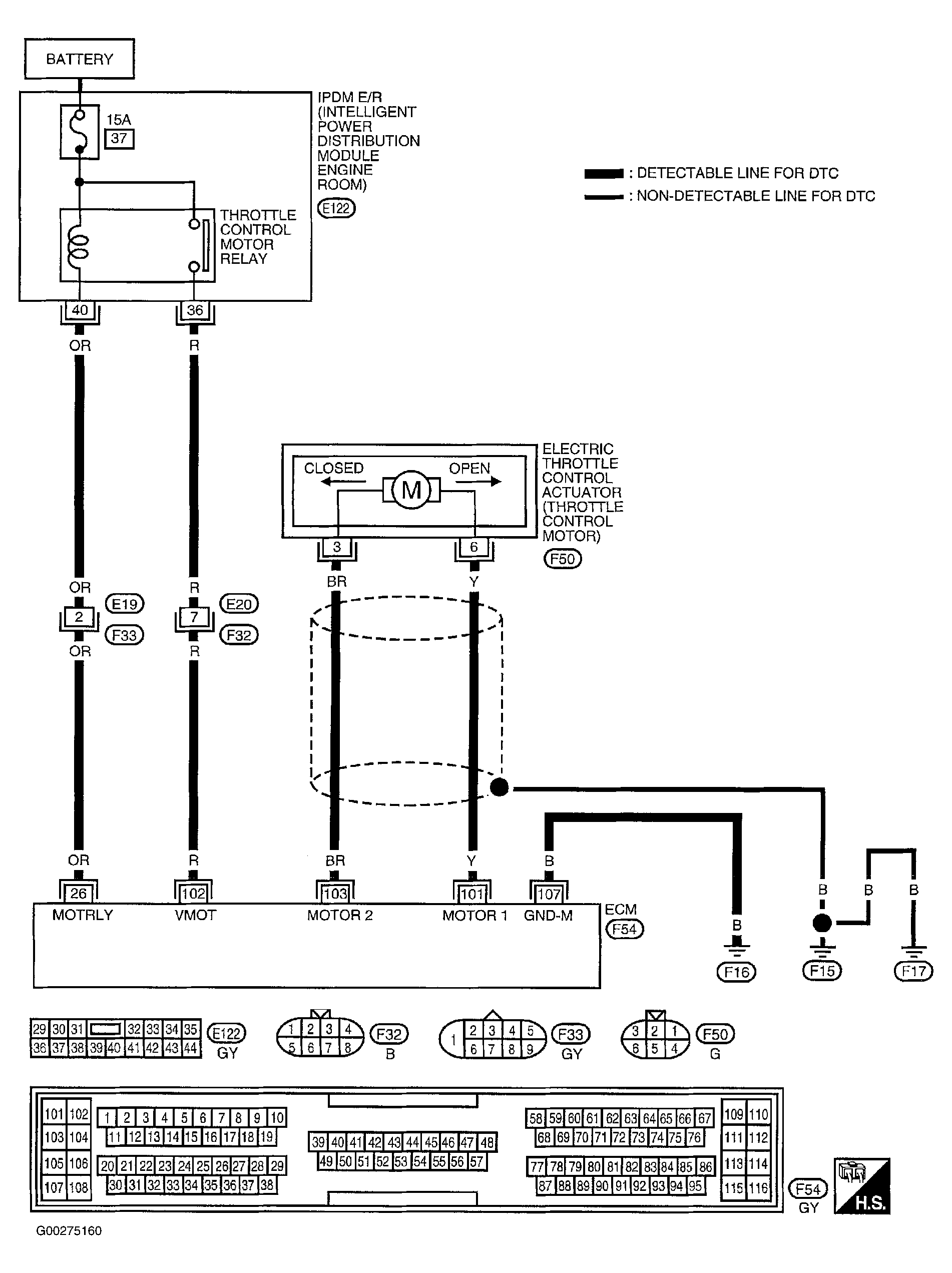

Fig 2: Circuit Identification For DTC P1122: Electric Throttle Control Function (3.5L)
G00275160Courtesy of NISSAN MOTOR CO., U.S.A.
