Circuit Identification

For circuit identification, see Fig 1 - Fig 2.

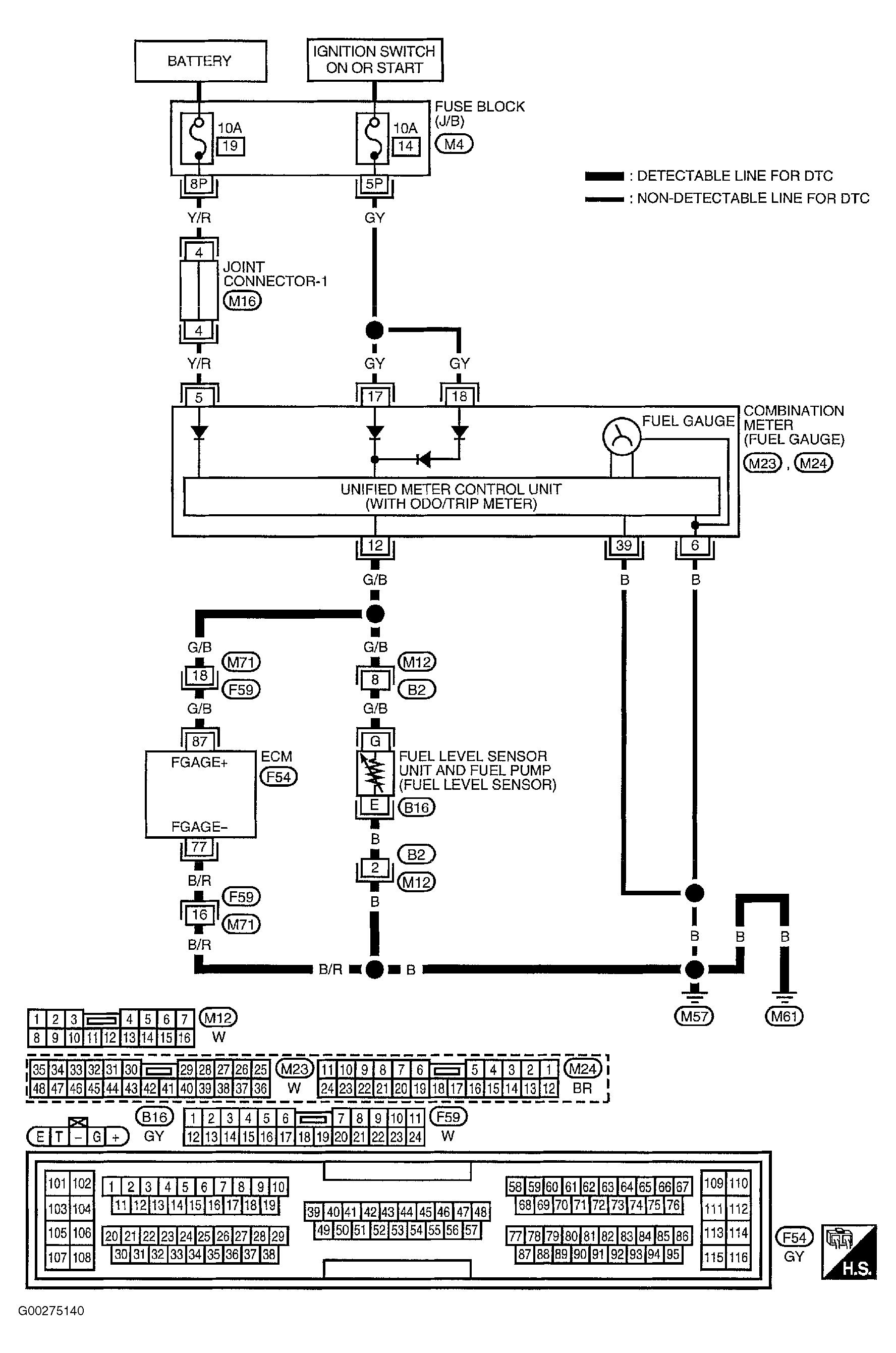

Fig 1: Circuit Identification For Fuel Level Sensor (2.5L)
G00275140Courtesy of NISSAN MOTOR CO., U.S.A.

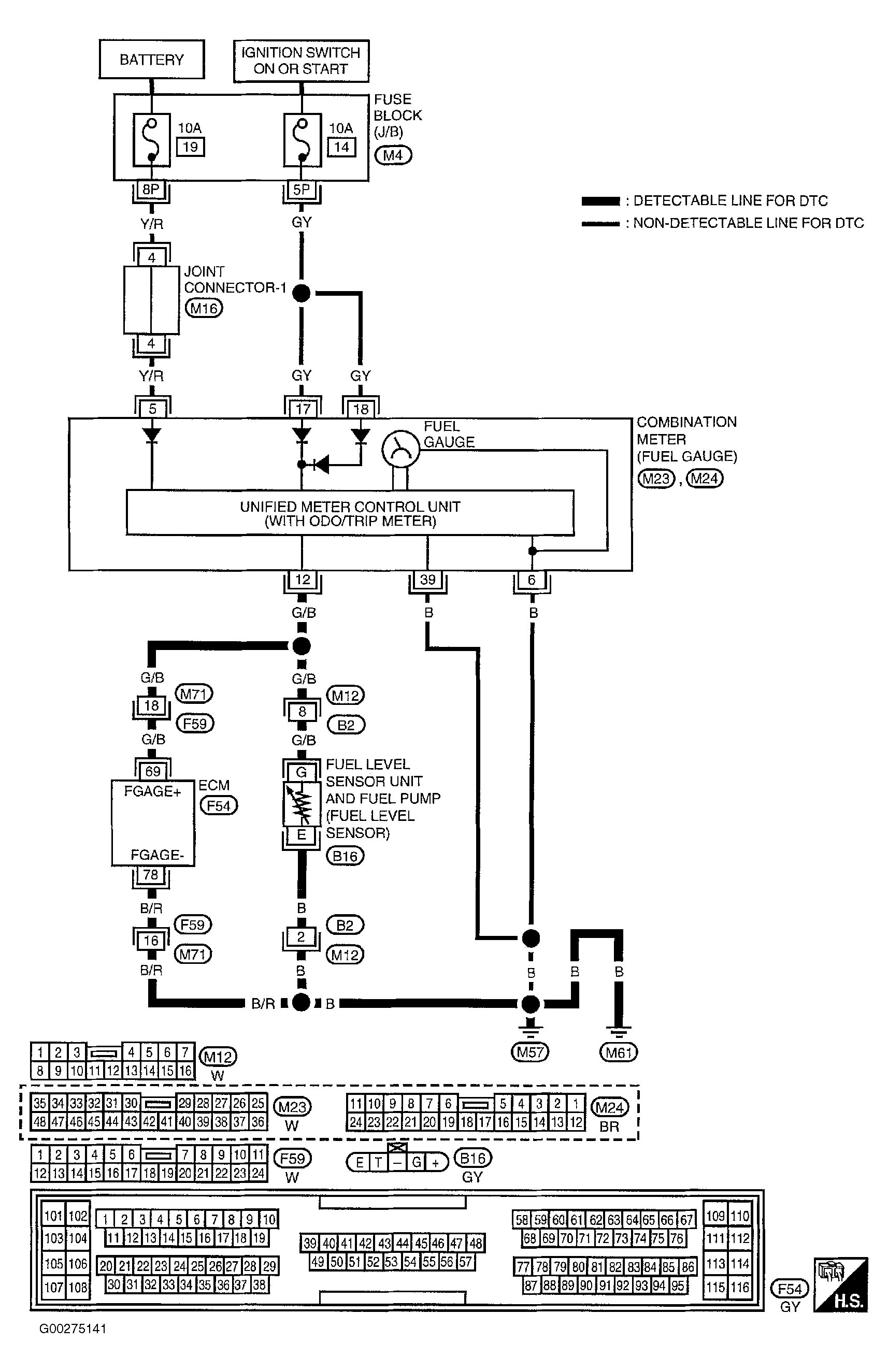

Fig 2: Circuit Identification For Fuel Level Sensor (3.5L)
G00275141Courtesy of NISSAN MOTOR CO., U.S.A.
