Overall Function Check (With GST)

CAUTION: Never use compressed air, doing so may damage the EVAP system. Do not start engine. Do not exceeded 0.6 psi (4.12 kPa).

NOTE: Use this procedure to check the overall function of the EVAP very small leak function. During this check, a DTC might not be confirmed.

NOTE: For Diagnostic Procedure, see DIAGNOSTIC PROCEDURE (2.5L) or DIAGNOSTIC PROCEDURE (3.5L) .

For overall function check (With GST), see Fig 1.

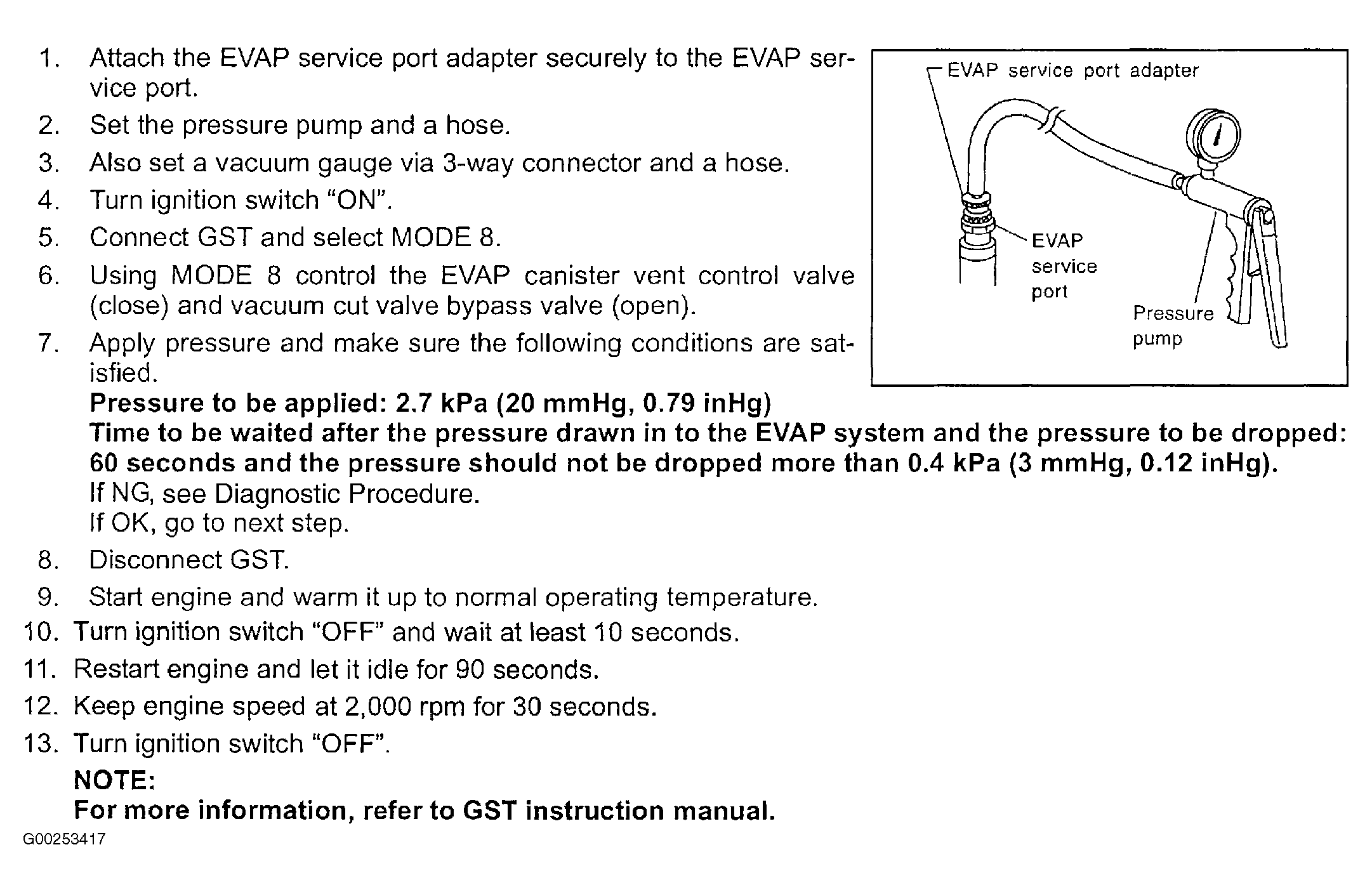

Fig 1: Identifying Overall Function Check For DTC P0456: EVAP Control System (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.
