DTC Confirmation Procedure

CAUTION: Never remove fuel filler cap during the DTC confirmation procedure.

NOTE: If DTC P0455 is displayed with P1448, perform DIAGNOSTIC PROCEDURE for DTC P1448: EVAP CANISTER VENT CONTROL VALVE. Ensure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve properly. If DTC confirmation procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

NOTE: For basic inspection, see BASIC INSPECTION under IDLE SPEED, IGNITION TIMING & IDLE MIXTURE RATIO ADJUSTMENT in ON-VEHICLE ADJUSTMENTS article, for diagnostic procedure, see DIAGNOSTIC PROCEDURE , for driving pattern, see SYSTEM READINESS TEST in DRIVE CYCLES, for diagnostic procedure for DTC P0442, see DIAGNOSTIC PROCEDURE (2.5L) or DIAGNOSTIC PROCEDURE (3.5L) under DTC P0442: EVAP CONTROL SYSTEM and for diagnostic procedure for DTC P0441, see DIAGNOSTIC PROCEDURE (2.5L) or DIAGNOSTIC PROCEDURE (3.5L) under DTC P0441: EVAP CONTROL SYSTEM.

For DTC confirmation procedure, see Fig 1-Fig 2 .

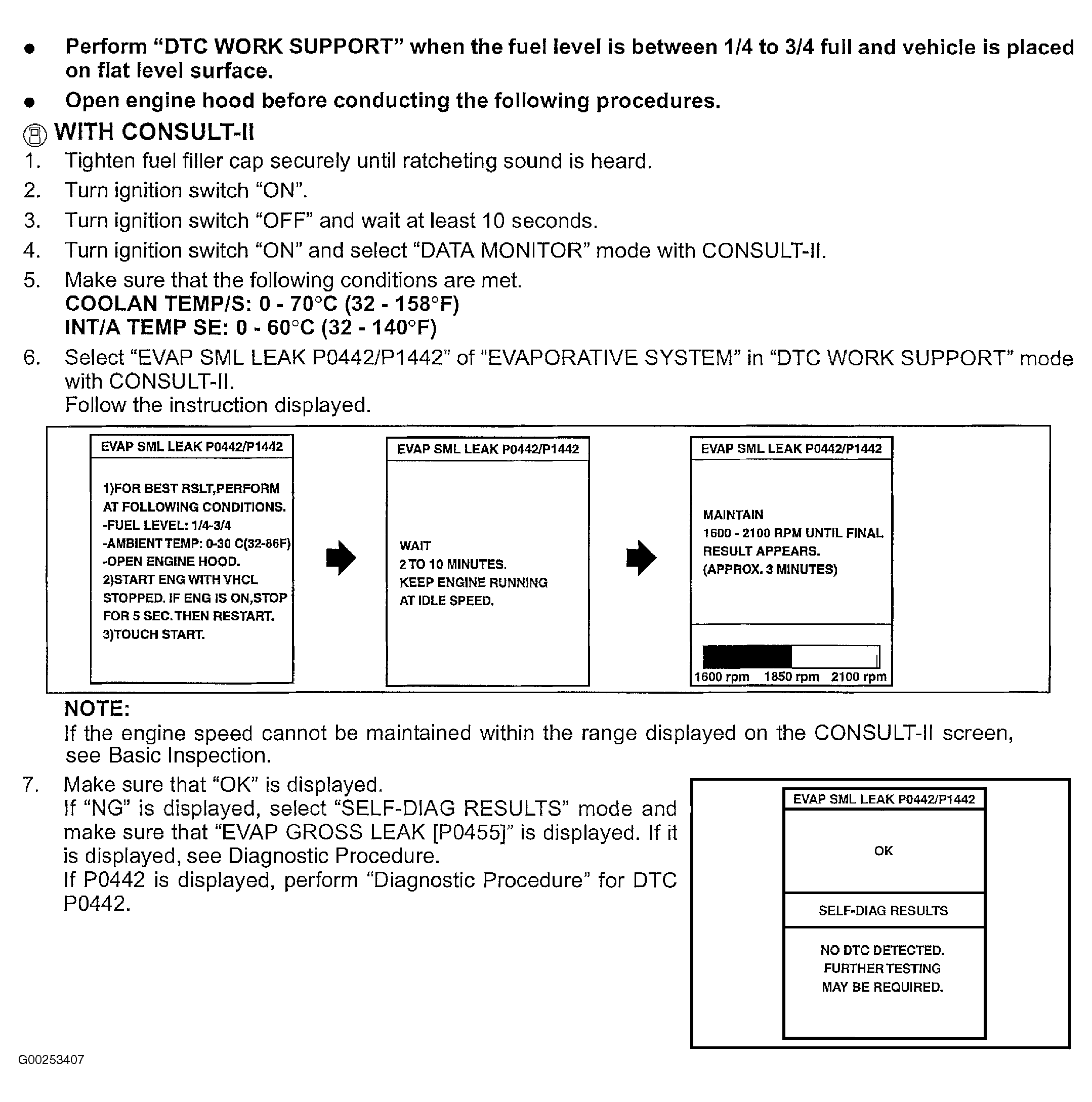

Fig 1: Identifying DTC Confirmation Procedure For DTC P0455: EVAP Control System (With CONSULT-II)

Courtesy of NISSAN MOTOR CO., U.S.A.

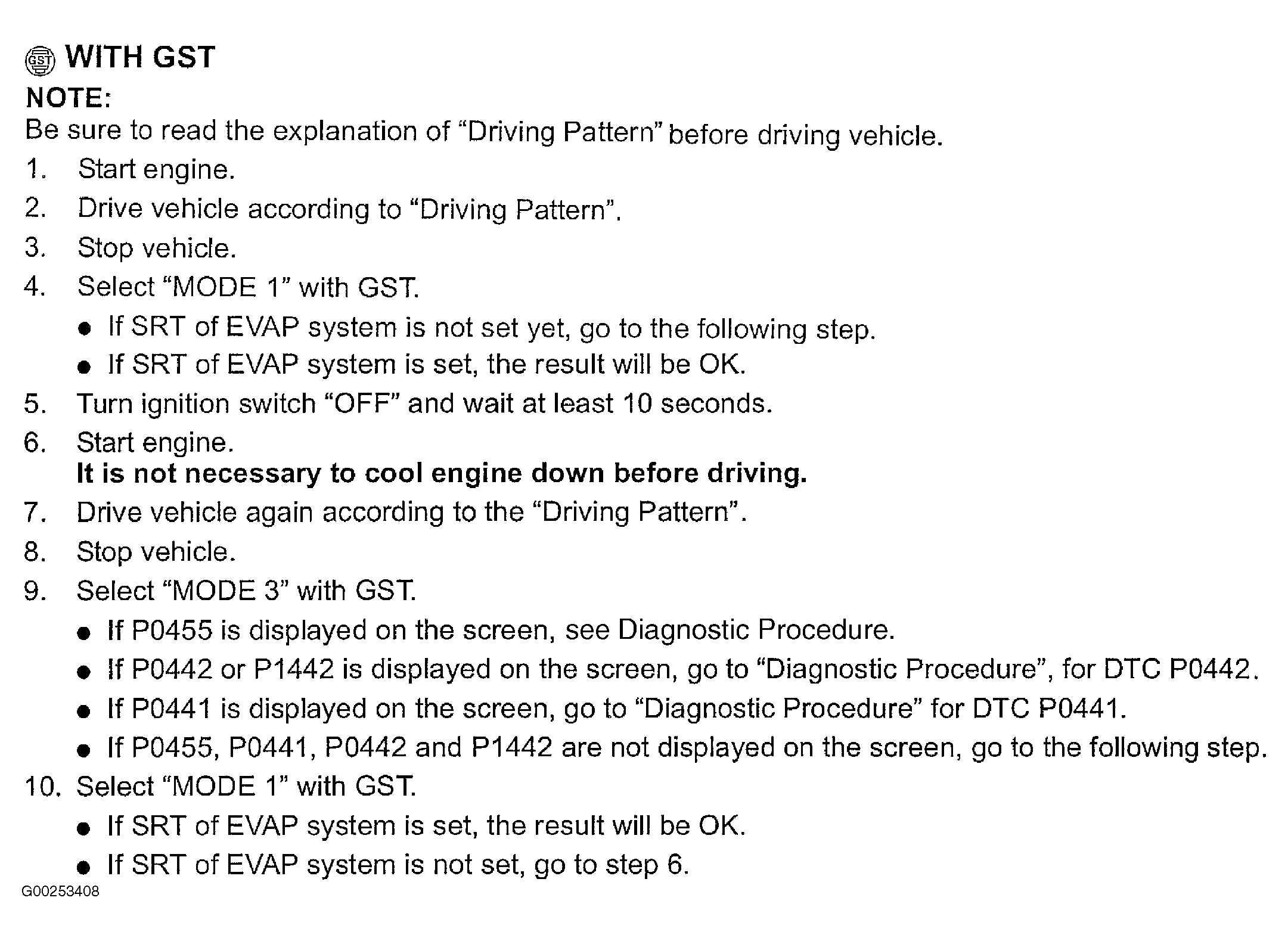

Fig 2: Identifying DTC Confirmation Procedure For DTC P0455: EVAP Control System (With GST)

Courtesy of NISSAN MOTOR CO., U.S.A.
