CONSULT-II Reference Value In Data Monitor Mode

For CONSULT-II reference value in data monitor mode, see Fig 1.

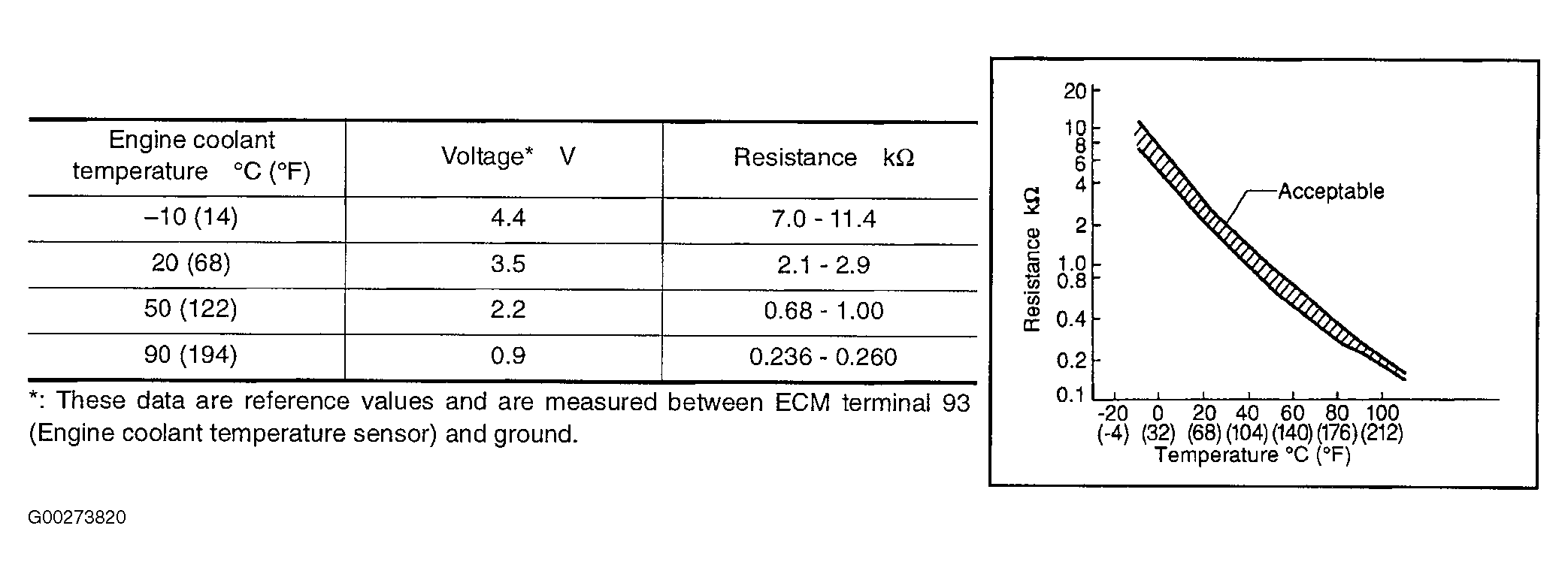

Fig 1: CONSULT-II Reference Value In Data Monitor Mode For DTC P0125: ECT Sensor
G00273820Courtesy of NISSAN MOTOR CO., U.S.A.
