Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.

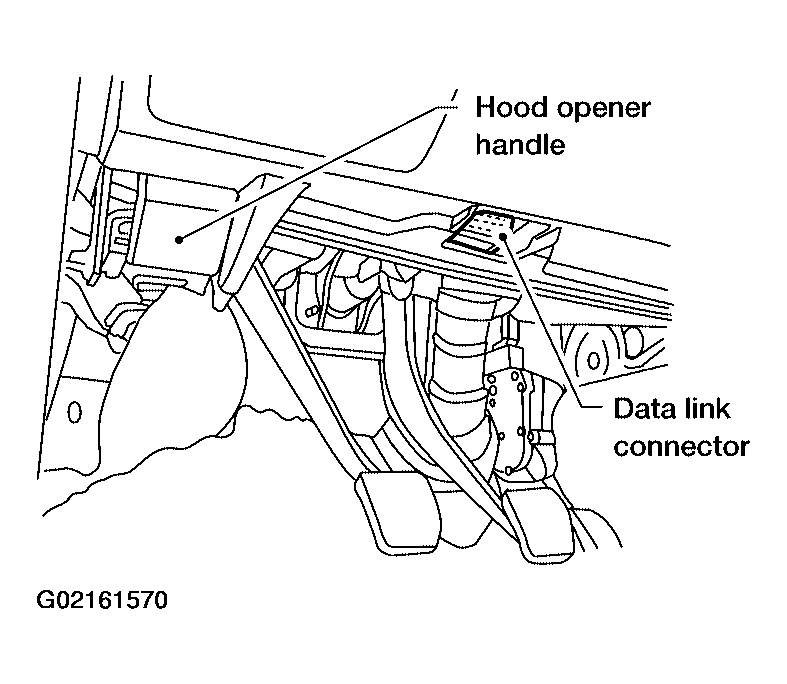

    Fig 1: Connecting Consult-II To Data Link Connector
    G02161570Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.
    Fig 2: Displaying Consult-II
    G02161571Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".
    Fig 3: Displaying Diagnosis System Selection
    G02161572Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
    Fig 4: Displaying Self-Diag Mode
    G02161573Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "LONG TIME" on "SET RECORDING COND" screen.
  9. Touch "START" on "SELECT MONITOR ITEM".
