Checking Fluid Level

Check fluid level, referring to the scale on reservoir tank.

Use HOT range for fluid temperatures of 50 - 80°C (122 - 176°F).

Use COLD range for fluid temperatures of 0 - 30°C (32 - 86°F).

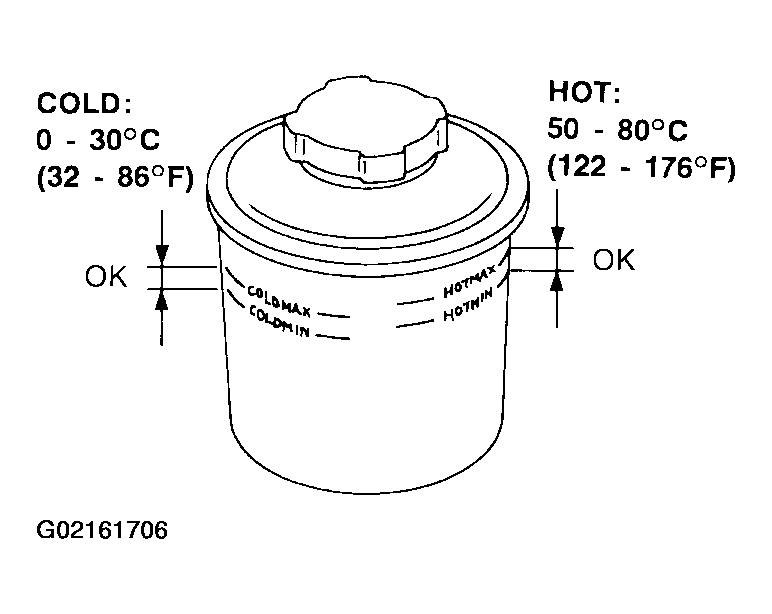

Fig 1: Checking Fluid Level, Referring To Scale On Reservoir Tank

Courtesy of NISSAN MOTOR CO., U.S.A.
