Ambient Sensor

After disconnecting ambient sensor harness connector, measure resistance between terminals 2 and 1 at sensor harness side, using the table below.

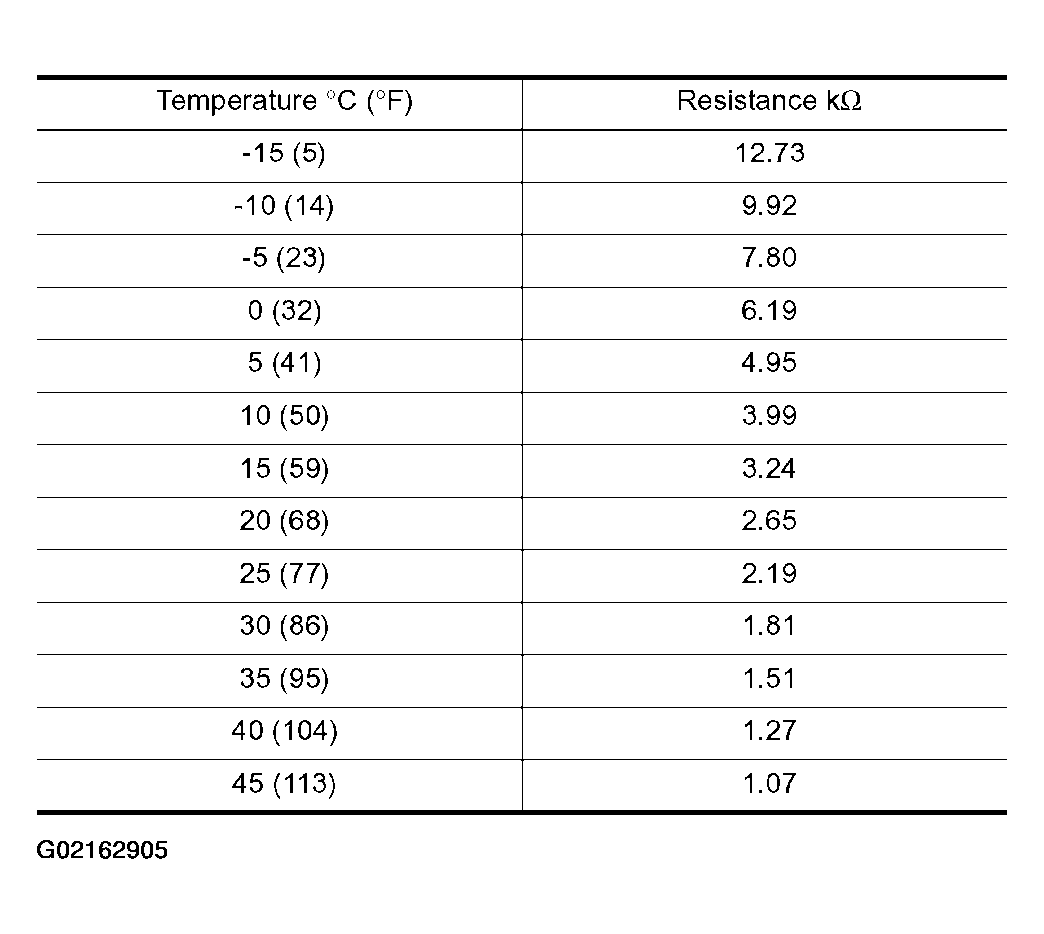

Fig 1: Ambient Sensor Resistance And Temperature

Courtesy of NISSAN MOTOR CO., U.S.A.

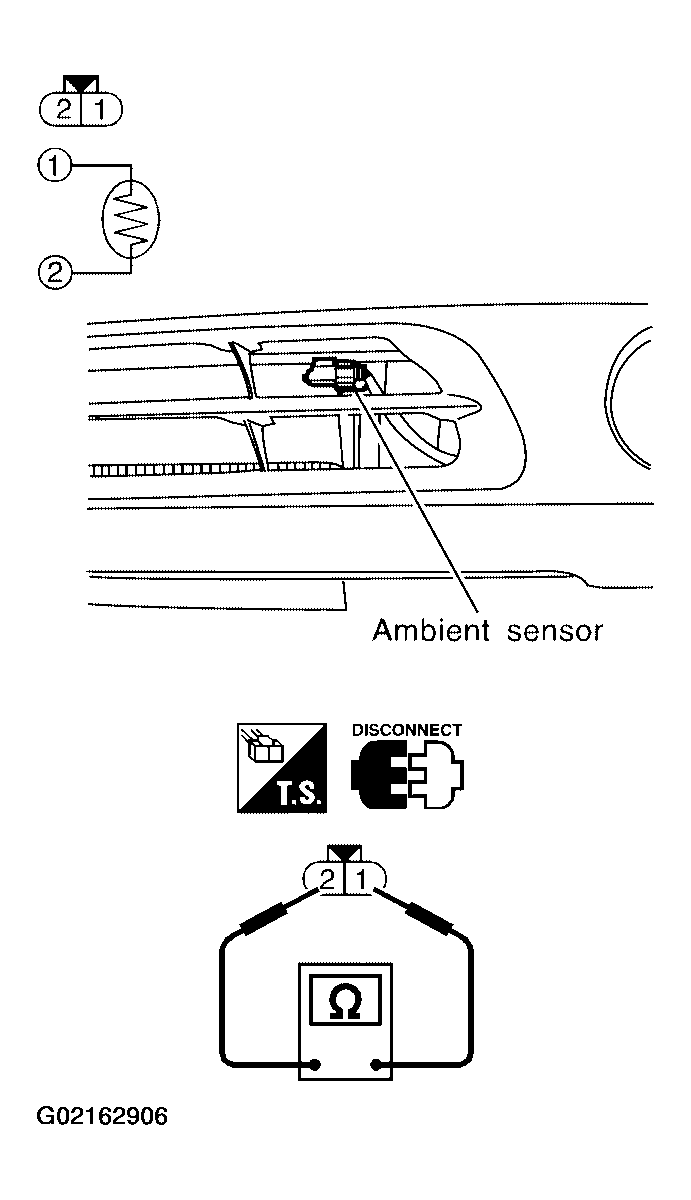

Fig 2: Measuring Resistance Between Terminals 2 And 1 At Sensor Harness Side

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ambient sensor.
