Active Test Procedure

Turn ignition switch OFF.
Connect CONSULT-II to data link connector.

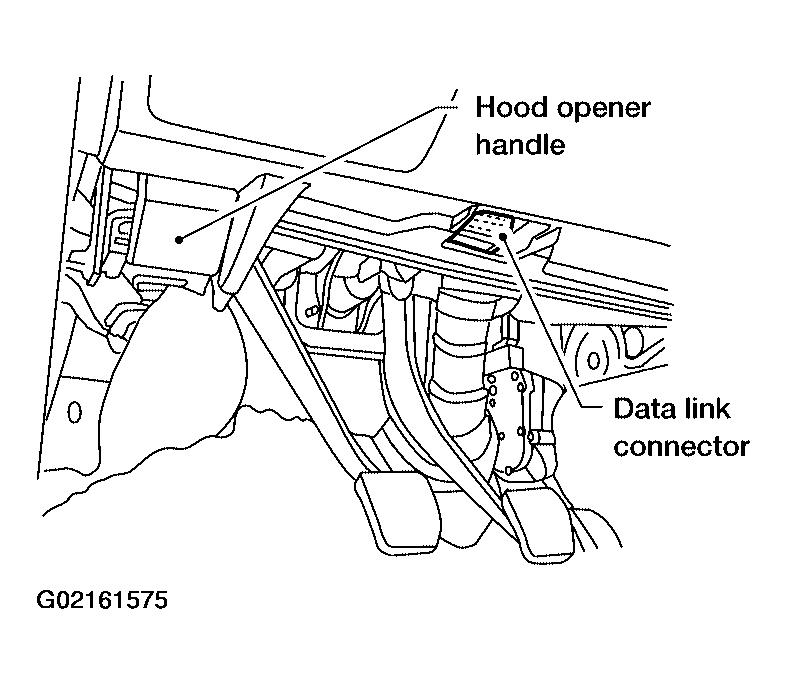

Fig 1: Connecting Consult-II To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine.
Touch "START" on CONSULT-II screen.

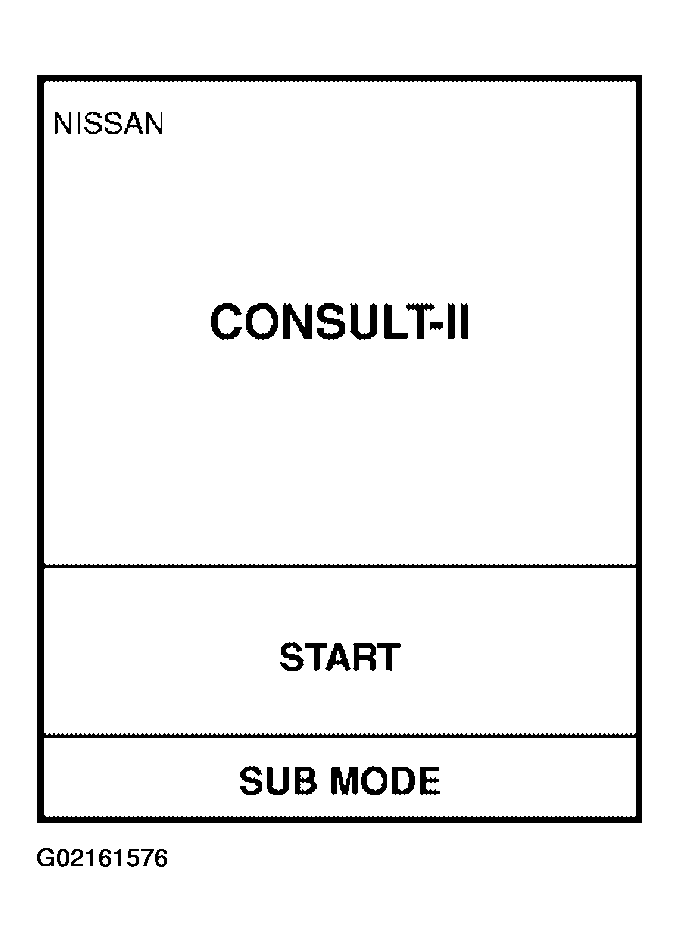

Fig 2: Displaying Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

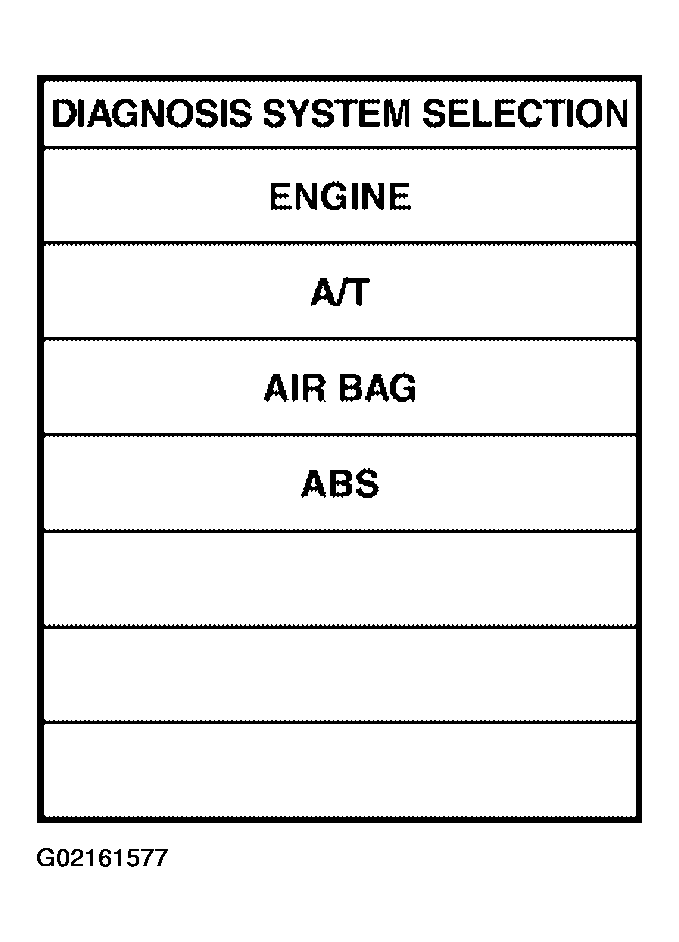

Fig 3: Displaying Diagnosis System Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ACTIVE TEST".

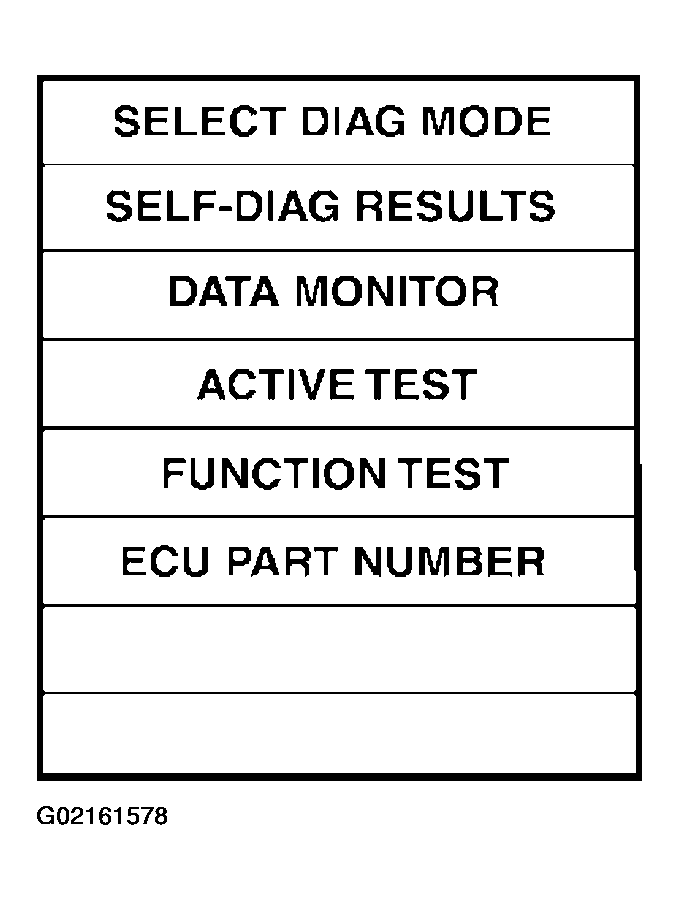

Fig 4: Displaying Self-Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Select active test item by touching screen.

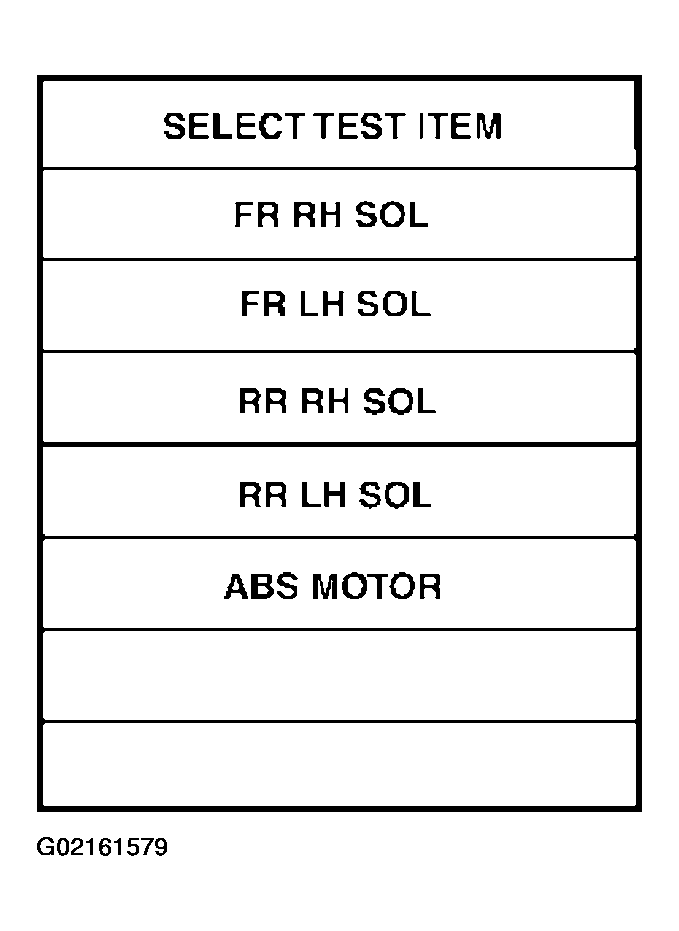

Fig 5: Displaying Select Test Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".
Carry out the active test by touching screen key.
