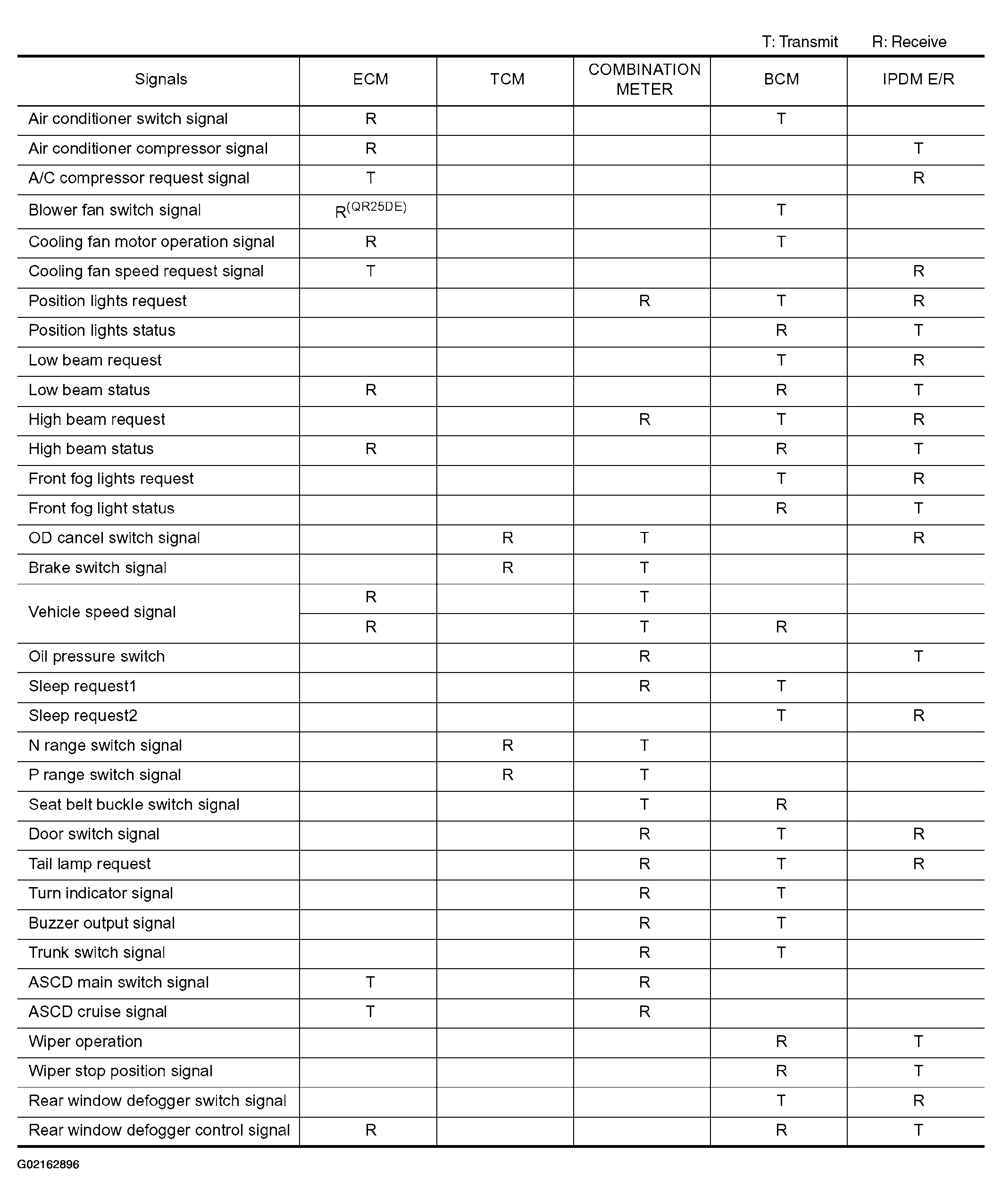

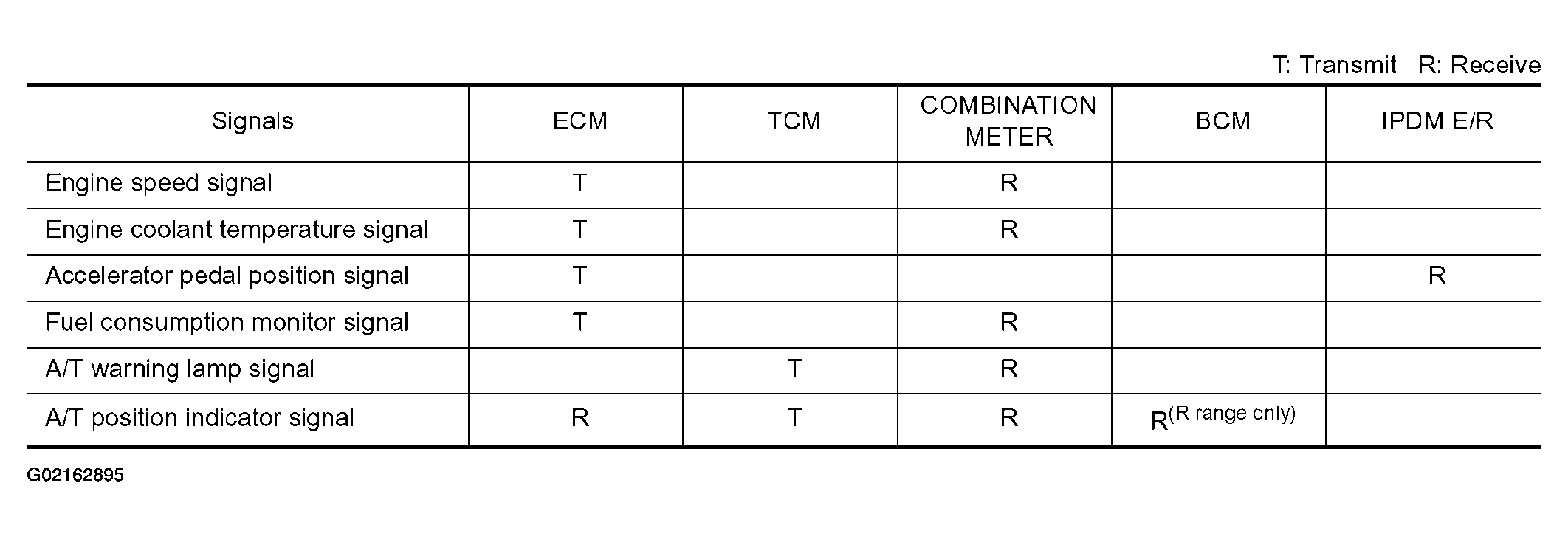

Home >> Nissan-Datsun >> 2003 >> Altima Base, 2.5 A, Automatic >> Repair and Diagnosis (Single Page) >> Electrical >> Gauges >> Circuit Board - Board Computer >> Board Computer >> CAN Communication System Description >> For A/T Models >> Input/Output Signal Chart
