Home >> Nissan-Datsun >> 2003 >> 350Z Standard >> Repair and Diagnosis >> Transmission >> Clutch System >> Operating Cylinder >> Removal And Installation >> Notes

Removal And Installation: Notes

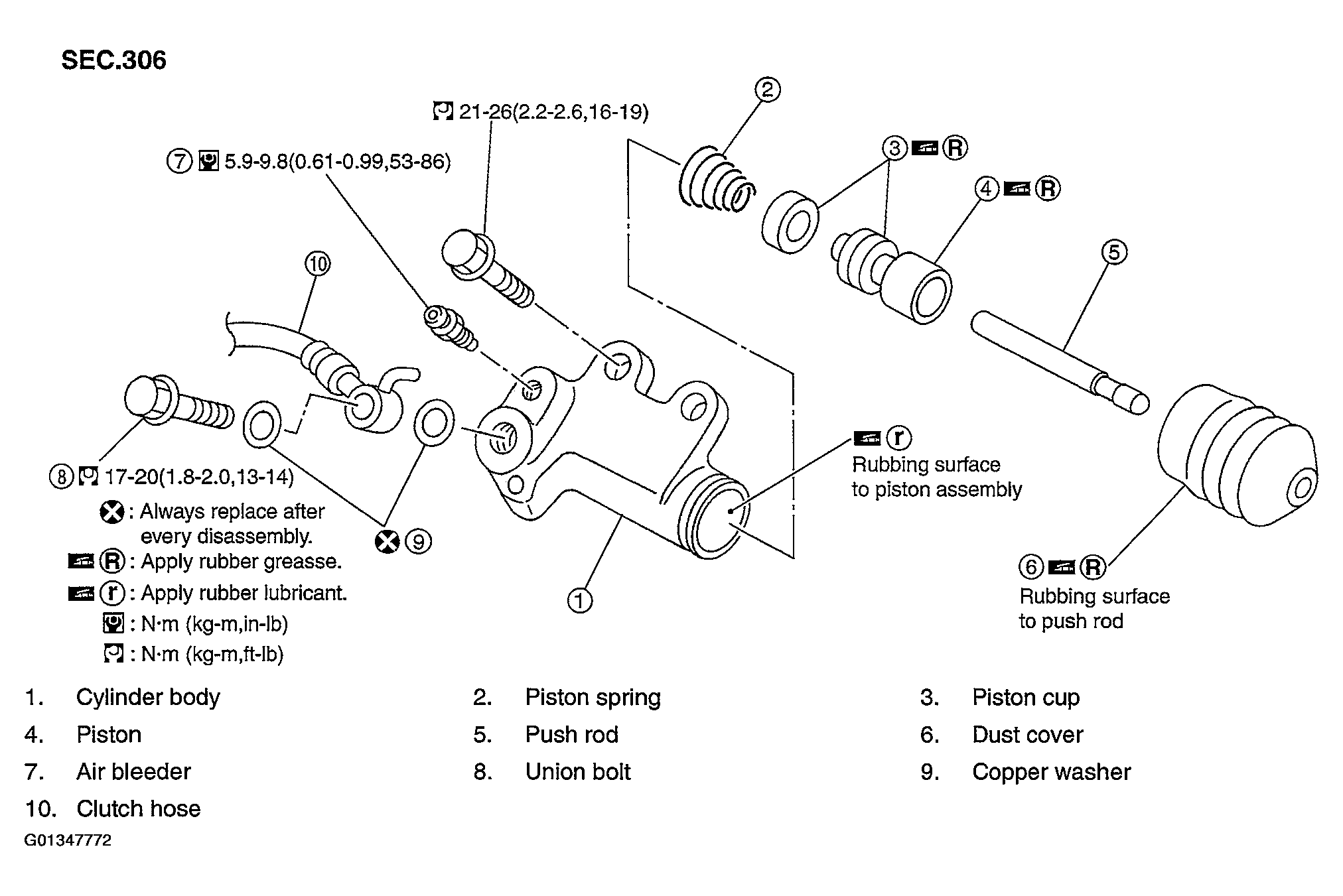

Fig 1: Removing & Installing Operating Cylinder

G01347772

Courtesy of NISSAN MOTOR CO., U.S.A.
