Removal And Installation: Notes

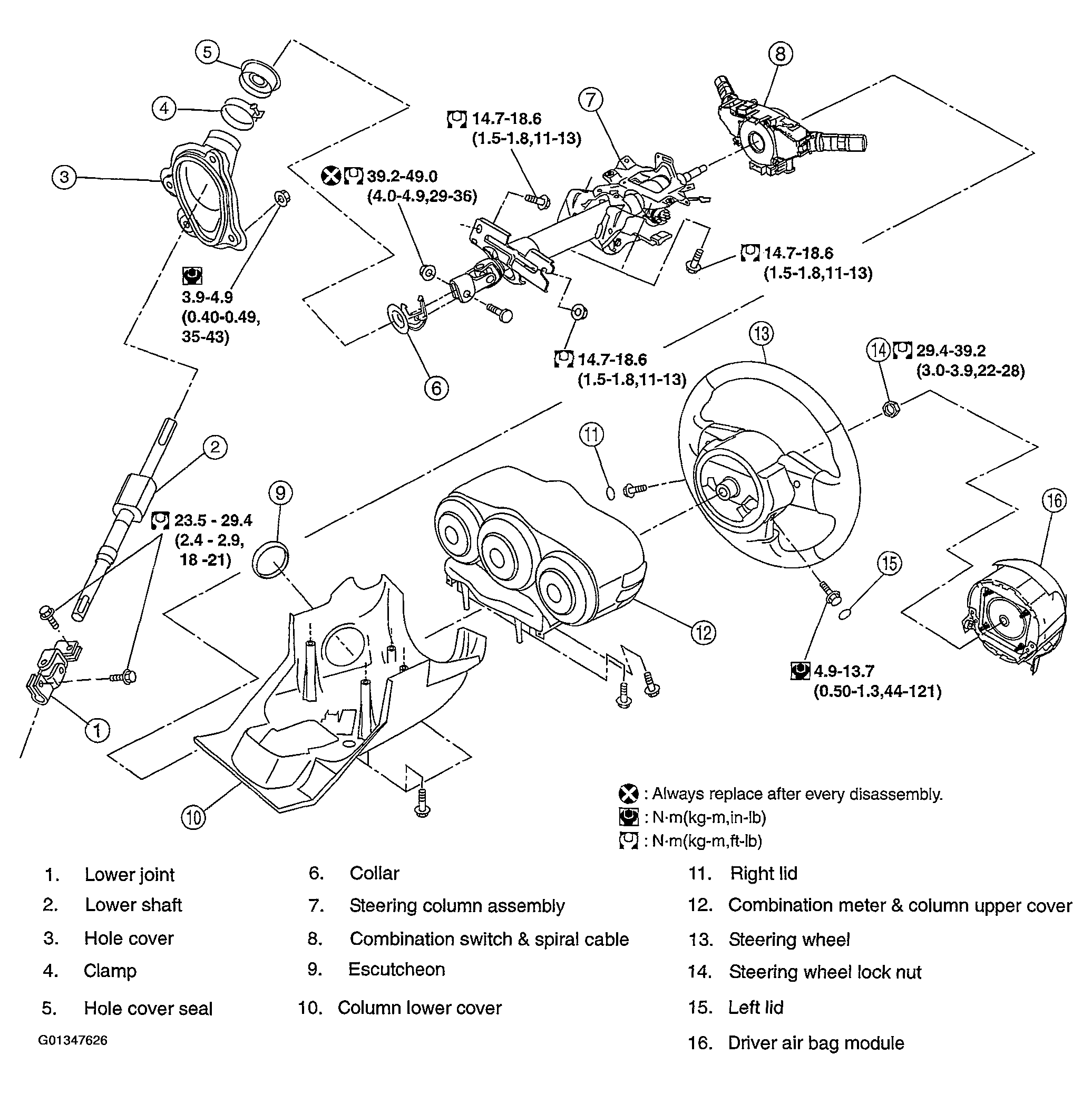

Fig 1: Identifying Steering Column Components
G01347626Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  • Care must be taken not to give axial impact to the steering column assembly during removal and installation.
  • Care must be taken not to move the steering gear during removal of the steering column assembly.
