DTC P1211: TCS Control Unit

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE  under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedure, see Fig 1 .

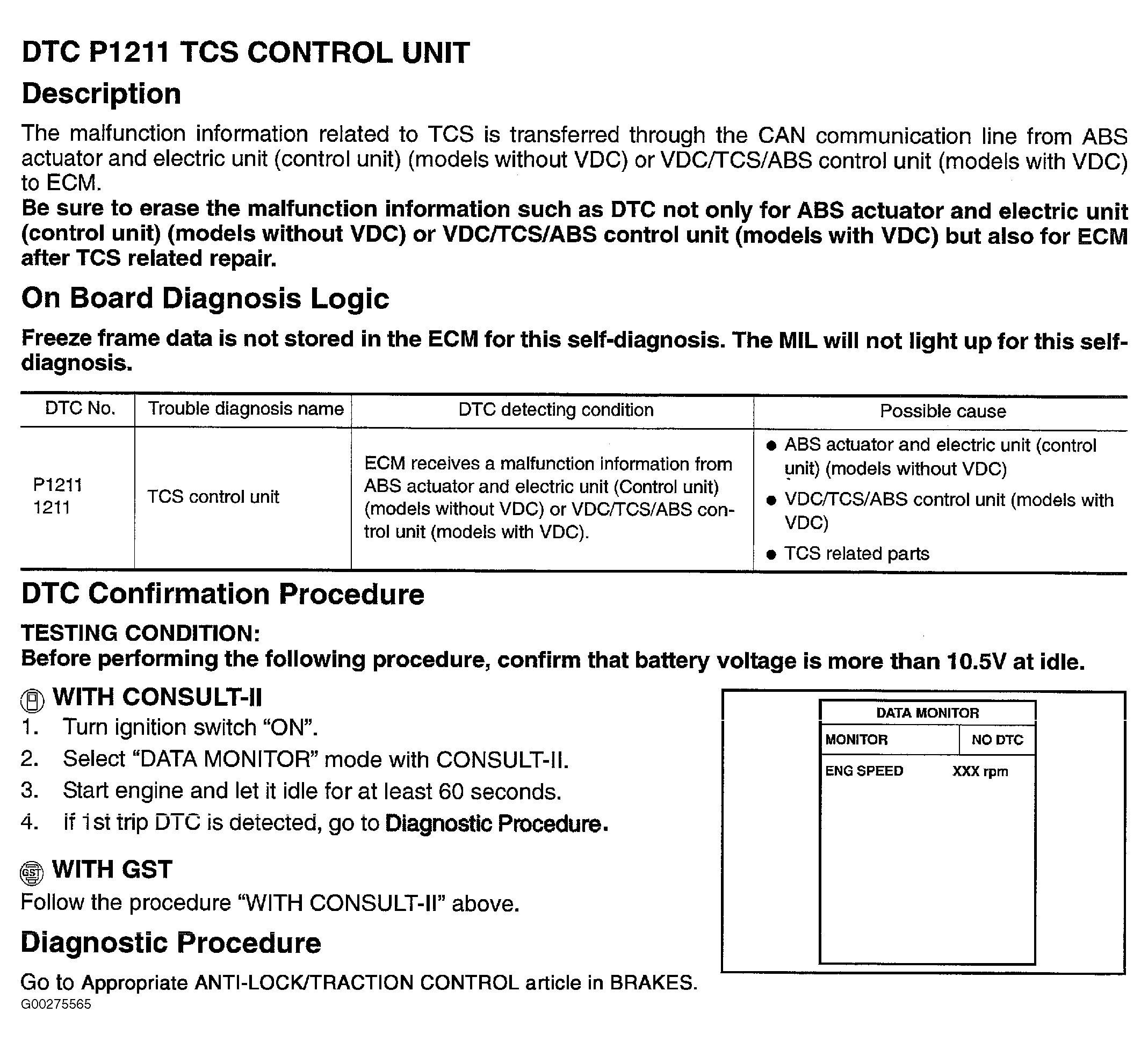

Fig 1: DTC P1211
G00275565Courtesy of NISSAN MOTOR CO., U.S.A.
