Reference Value From Consult-II

CAUTION: The display shows the control unit calculation data, so a normal value might be displayed even In the event the output circuit (harness) Is open or short - circuited.

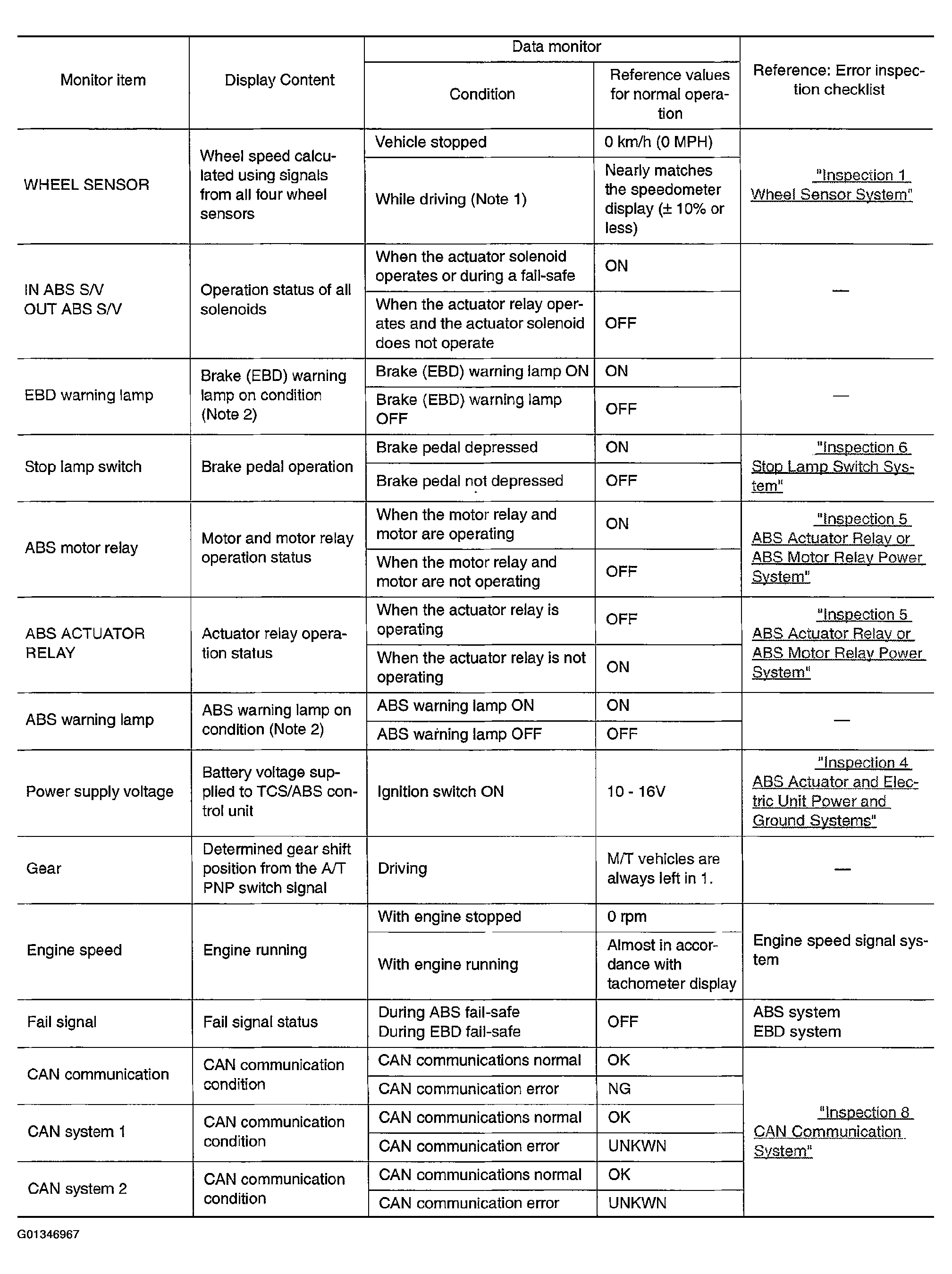

Fig 1: Reference Value From Consult-II

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Confirm tire pressure is normal.

NOTE: ABS warning lamp ON/OFF timing

ON: For approximately 1 second after the ignition switch is turned on or when and error is detected.

OFF: Approximately 1 second after the ignition switch is turned on (when system is normal).
